WIRING & CLAMP

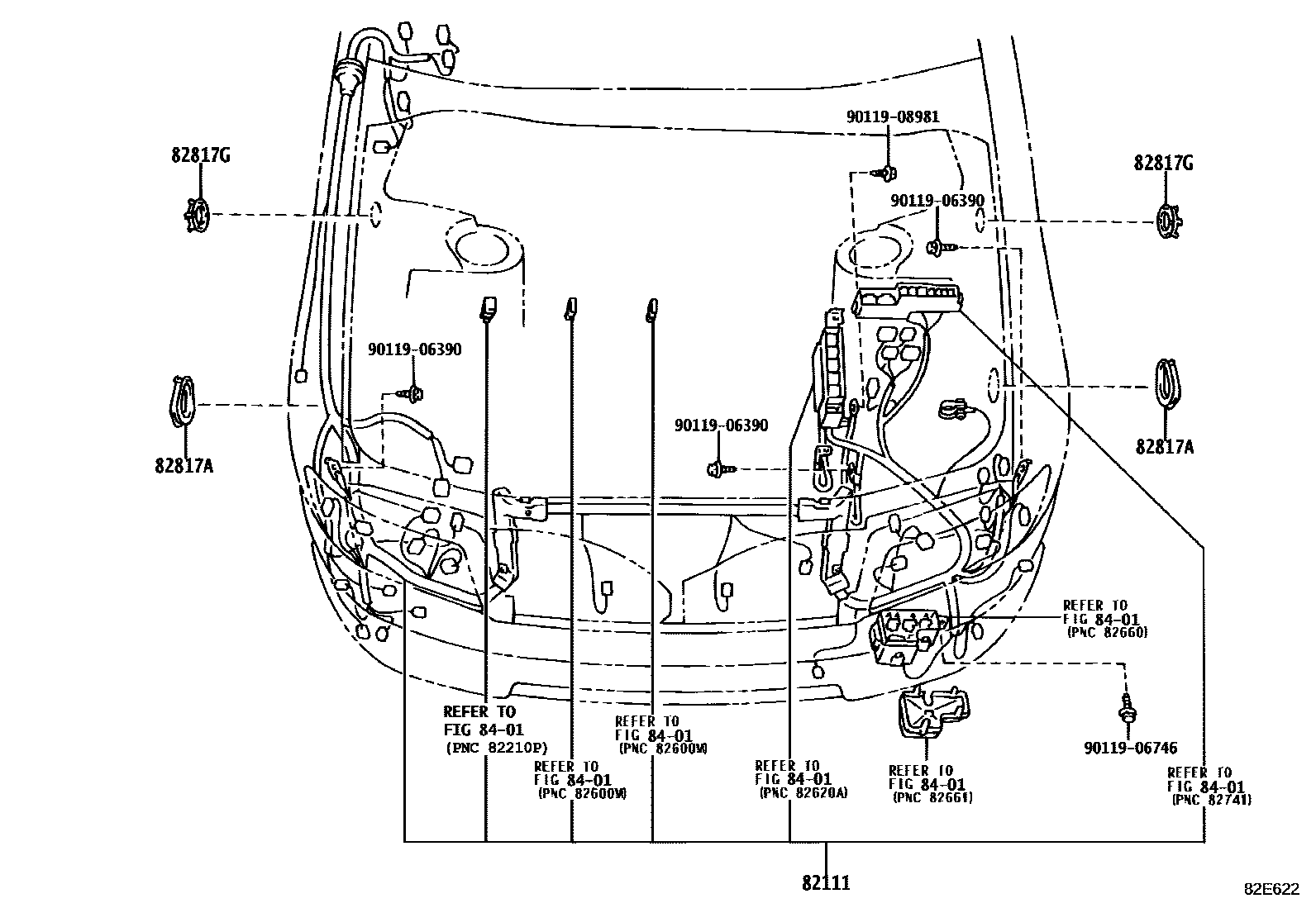

Parts diagram

82111WIRE, ENGINE ROOM MAIN

main82111-50370i199410-199508

main82111-50371i199508-199608

main82111-50372i199608-199707

main82111-50380i199410-199608

SOUTH AFRICA SPEC

main82111-50381i199608-199707

SOUTH AFRICA SPEC

main82111-50390i199410-199608

W(TRACTION CONTROL)

main82111-50391i199608-199707

W(TRACTION CONTROL)

main82111-50480i199410-199508

main82111-50481i199508-199608

main82111-50482i199608-199707

main82111-50490i199410-199508

W(AIR SUSPENTION)

main82111-50491i199508-199608

W(AIR SUSPENTION)

main82111-50492i199608-199707

W(AIR SUSPENTION)

main82111-50500i199410-199608

main82111-50501i199608-199707

main82111-50510i199410-199608

ISRAEL SPEC

main82111-50511i199608-199707

ISRAEL SPEC

main82111-50580i199707

main82111-50590i199707

W(AIR SUSPENTION)

main82111-50600i199707

main82111-50610i199707

main82111-50620i199707

SOUTH AFRICA SPEC

main82111-50670i199707

BRAZIL SPEC OR ISRAEL SPEC

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-91707i199608-199707

82817APROTECTOR, WIRING HARNESS, NO.2

main82817-5A790i199410

82817GPROTECTOR, WIRING HARNESS, NO.8

main82817-50530i199410

8401

9011906390

main90119-06390

9011906746

main90119-06746

9011908981

main90119-08981

8 parts on this diagram · 12 diagrams in section
