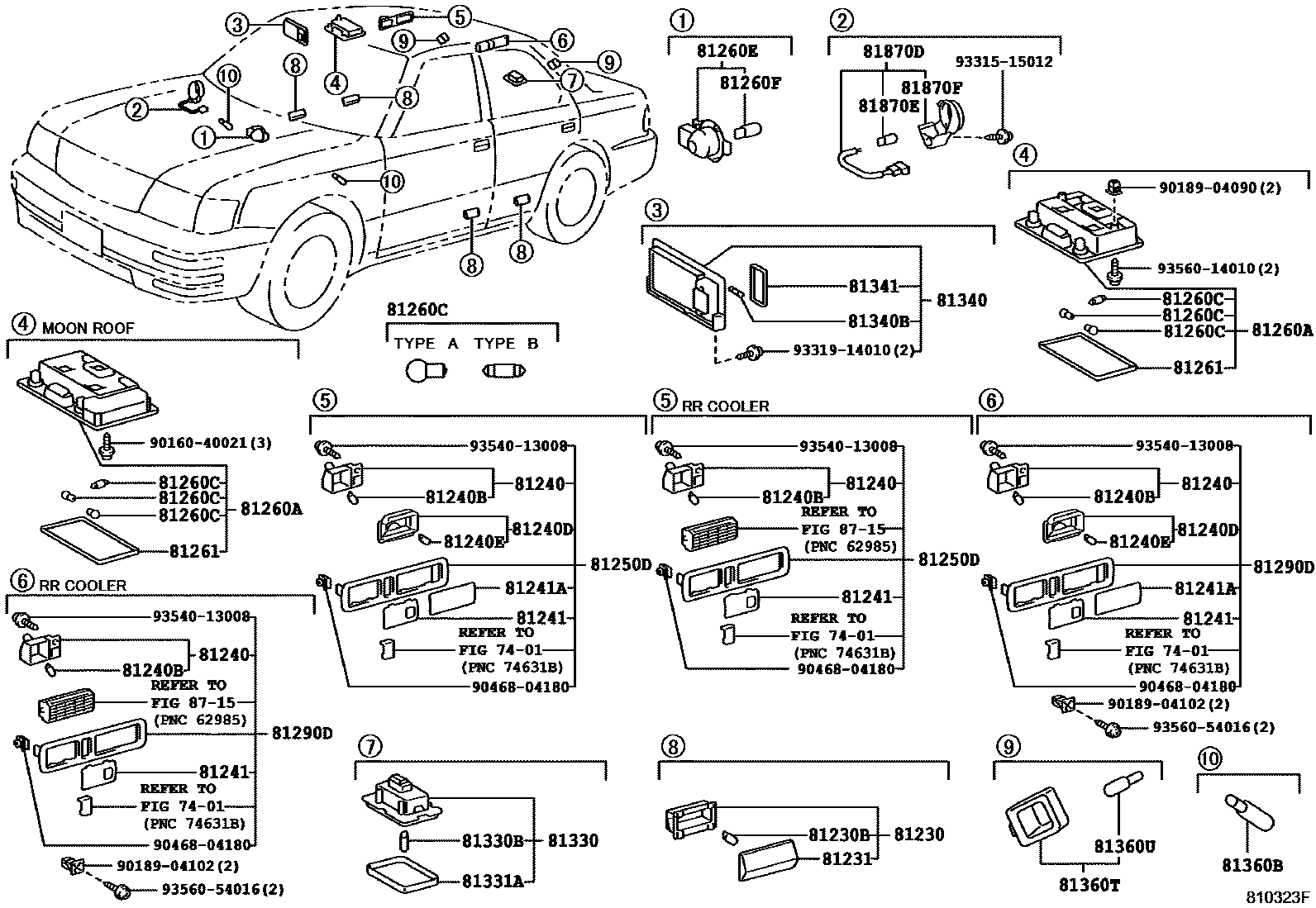

INTERIOR LAMP
7401
81230BBULB(FOR COURTESY LAMP)
12V 3.8W
81231LENS, COURTESY LAMP
81240LAMP ASSY, ROOM, NO.1
IVORY,TRIM0#,RH
W(REAR COOLER),IVORY,TRIM0#,RH
BLUE GRAY,TRIM1#,2#,RH
W(REAR COOLER),BLUE GRAY,TRIM1#,2#,RH
W(REAR COOLER),AGETE,TRIM6#,RH
81240BBULB, ROOM LAMP, NO.1
12V 5W
81240DLAMP ASSY, ROOM, NO.2
81240EBULB, ROOM LAMP, NO.2
12V 5W
81241ALENS, ROOM LAMP, NO.2
81250DLAMP ASSY, REAR ROOM, RH
IVORY,TRIM0#
DARK BLUE GRAY,TRIM1#,2#
AGATE,TRIM6#
IVORY,TRIM0#
W(REAR AIR CONDITIONER),IVORY,TRIM0#
DARK BLUE GRAY,TRIM1#,2#
W(REAR AIR CONDITIONER),DARK BLUE GRAY,TRIM1#,2#
W(REAR AIR CONDITIONER),AGATE,TRIM6#
81260ALAMP ASSY, MAP
W(MOON ROOF),IVORY,TRIM0#
W(MOON ROOF),BLUE GRAY,TRIM1#,2#
W(MOON ROOF),AGATE,TRIM6#
81260CBULB(FOR MAP LAMP)
12V 8W,TYPE A:REFER TO ILLUSTRATION
12V 10W,TYPE A:REFER TO ILLUSTRATION
12V 8W,TYPE B:REFER TO ILLUSTRATION
12V 10W,TYPE B:REFER TO ILLUSTRATION
81260ELAMP ASSY, GLOVE BOX, NO.2
81260FBULB(FOR GLOVE BOX LAMP)
12V 1.2W W/O SOCKET
81261LENS AND COVER, MAP LAMP
W(MOON ROOF)
W(MOON ROOF)
81290DLAMP ASSY, REAR ROOM, LH
IVORY,TRIM0#
DARK BLUE GRAY,TRIM1#,2#
AGATE,TRIM6#
IVORY,TRIM0#
W(REAR AIR CONDITIONER),IVORY,TRIM0#
DARK BLUE GRAY,TRIM1#,2#
W(REAR AIR CONDITIONER),DARK BLUE GRAY,TRIM1#,2#
W(REAR AIR CONDITIONER),AGATE,TRIM6#
81330BBULB, LUGGAGE COMPARTMENT LAMP
12V 3.8W
81331ACOVER, LUGGAGE COMPARTMENT LAMP
81340LAMP ASSY, VANITY
IVORY,TRIM0#,LH
BLUE GRAY,TRIM1#,2#,LH
AGATE,TRIM6#,LH
IVORY,TRIM0#,LH
BLUE GRAY,TRIM1#,2#,LH
AGATE,TRIM6#,LH
IVORY,TRIM0#,RH
BLUE GRAY,TRIM1#,2#,RH
AGATE,TRIM6#,RH
81340BBULB (FOR VANITY LAMP)
12V 3W
81341LENS, VANITY LAMP
81360BBULB, STEP OR SPOT LAMP
14V 1.4W
81360TLAMP ASSY, SPOT
81360UBULB, SPOT LAMP
81870DLAMP ASSY, KEY CYLINDER
81870EBULB, KEY CYLINDER LAMP
12V 1.2W W/O SOCKET
81870FCAP, KEY CYLINDER LAMP BULB
8715
9016040021
main90160-40021
9018904090
main90189-04090
9018904102
main90189-04102
9046804180
main90468-04180
9331515012
main93315-15012
9331914010
main93319-14010
9354013008
main93540-13008
9356014010
main93560-14010
9356054016
main93560-54016
39 parts on this diagram · 1 diagram in section
