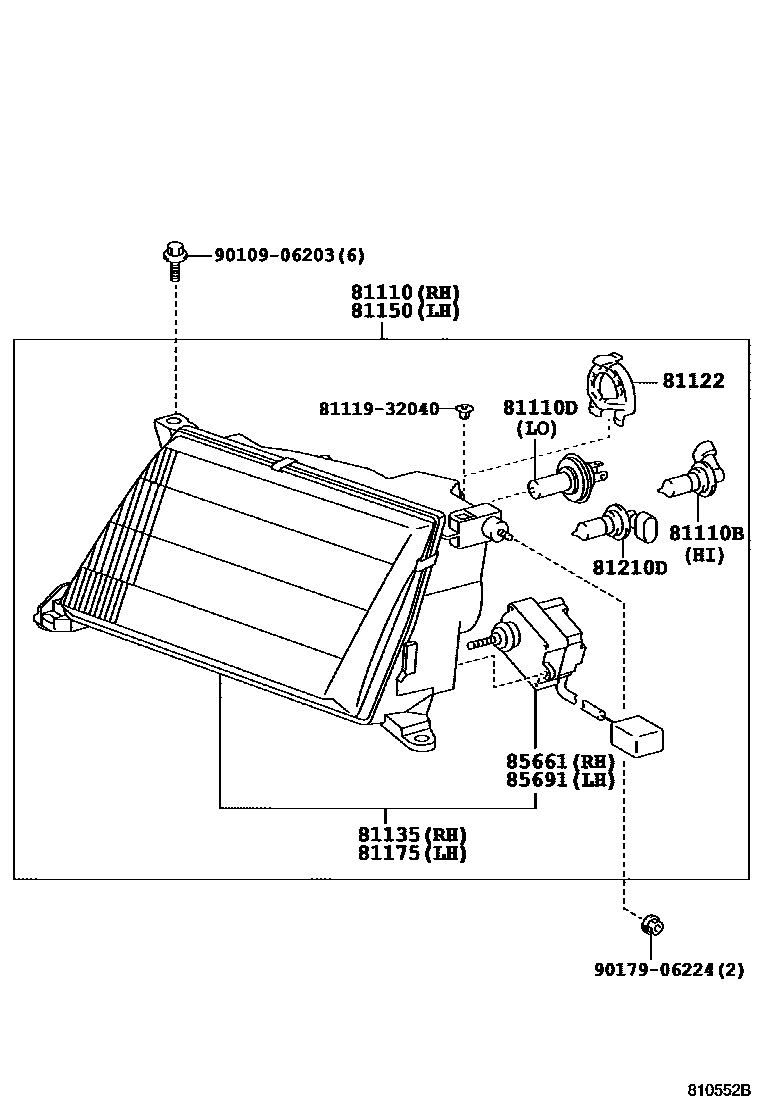

HEADLAMP
81110BBULB(FOR HEADLAMP, NO.1)
12V65W(SAE),60W(ECE)
81110DBULB(FOR HEADLAMP, NO.2)
85V 35W
81135UNIT ASSY, HEADLAMP, RH
SOUTH AFRICA SPEC
LATIN AMERICA SPEC OR CHINA SPEC
81175UNIT ASSY, HEADLAMP, LH
SOUTH AFRICA SPEC
LATIN AMERICA SPEC OR CHINA SPEC
81210DBULB, FOG LAMP
12V 51W,HALOGEN
85691MOTOR, HEADLAMP LEVELING, LH
8111932040SCREW, HEADLAMP
main81119-32040
9010906203
main90109-06203
9017906224
main90179-06224
13 parts on this diagram · 3 diagrams in section
