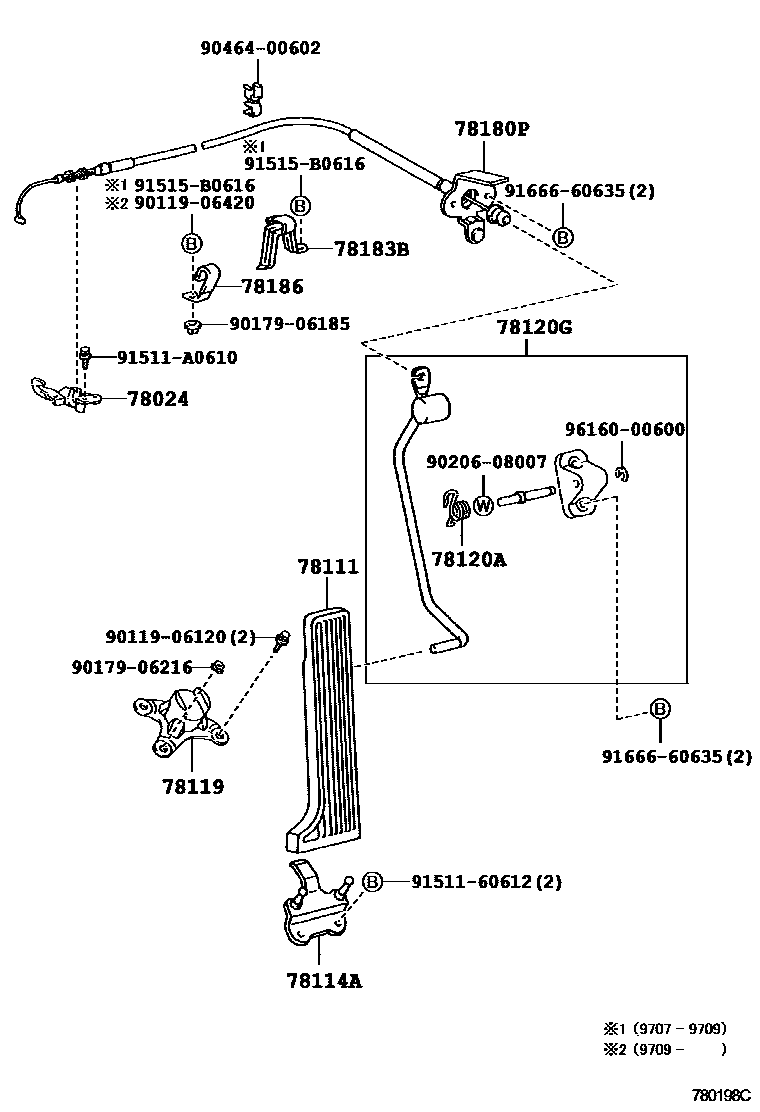

ACCELERATOR LINK
78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78111PEDAL, ACCELERATOR
78114ABRACKET, ACCELERATOR PEDAL SUPPORT
78119STOPPER, ACCELERATOR PEDAL ROD
SOUTH AFRICA SPEC
78120ASPRING, COMPRESSION (FOR ACCELERATOR LINK ROD)
78120GROD ASSY, ACCELERATOR PEDAL
SOUTH AFRICA SPEC
SINGAPORE SPEC OR THAILAND SPEC
HONG KONG SPEC
SOUTH AFRICA SPEC
HONG KONG OR THAILAND SPEC
78180PCABLE ASSY, ACCELERATOR CONTROL
78183BCLAMP, ACCELERATOR CONTROL CABLE
9011906120
main90119-06120
9011906420
main90119-06420
9017906185
main90179-06185
9017906216
main90179-06216
9020608007
main90206-08007
9046400602
main90464-00602
9151160612
main91511-60612
91511A0610
main91511-A0610
91515B0616
main91515-B0616
9166660635
main91666-60635
9616000600
main96160-00600
20 parts on this diagram · 5 diagrams in section
