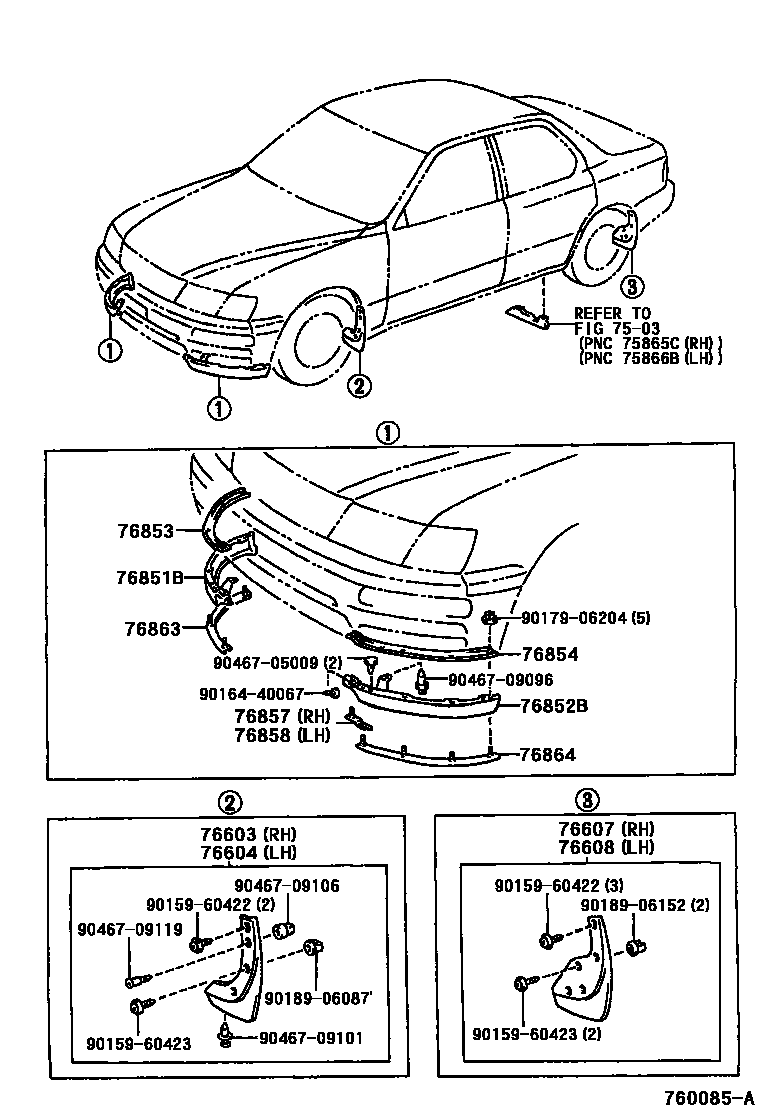

MUDGUARD & SPOILER

7503

76603MUDGUARD SUB-ASSY, FRONT FENDER, RH

main76621-59035iUCF20199410

76604MUDGUARD SUB-ASSY, FRONT FENDER, LH

main76622-59035iUCF20199410

76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH

main76625-59035iUCF20199410-200008

76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH

main76626-59035iUCF20199410

76851BSPOILER, FRONT, RH

main76851-50050iUCF20..ARL,EUR,V199410-199707

main76851-50060iUCF20..ARL,EUR,V199707

76852BSPOILER, FRONT, LH

main76852-50030iUCF20..ARL,EUR,V199410-199707

main76852-50040iUCF20..ARL,EUR,V199707

76853RETAINER, FRONT SPOILER, UPPER RH

main76853-50030iUCF20..ARL,EUR,V199410-199707

main76853-50040iUCF20..ARL,EUR,V199707

76854RETAINER, FRONT SPOILER, UPPER LH

main76854-50030iUCF20..ARL,EUR,V199410-199707

main76854-50040iUCF20..ARL,EUR,V199707

76857RETAINER, FRONT SPOILER SIDE, RH

main76857-50020iUCF20..ARL,EUR,V199410-199707

main76857-50030iUCF20..ARL,EUR,V199707

76858RETAINER, FRONT SPOILER SIDE, LH

main76858-50020iUCF20..ARL,EUR,V199410-199707

main76858-50030iUCF20..ARL,EUR,V199707

76863RETAINER, FRONT SPOILER, LOWER NO.2 RH

main76863-50020iUCF20..ARL,EUR,V199410-199707

main76863-50030iUCF20..ARL,EUR,V199707

76864RETAINER, FRONT SPOILER, LOWER NO.2 LH

main76864-50020iUCF20..ARL,EUR,V199410-199707

main76864-50030iUCF20..ARL,EUR,V199707

9015960422

main90159-60422

9015960423

main90159-60423

9016440067

main90164-40067

9017906204

main90179-06204

9018906087

main90189-06087

9018906152

main90189-06152

9046705009

main90467-05009

9046709096

main90467-09096

9046709101

main90467-09101

9046709106

main90467-09106

9046709119

main90467-09119

24 parts on this diagram · 1 diagram in section
