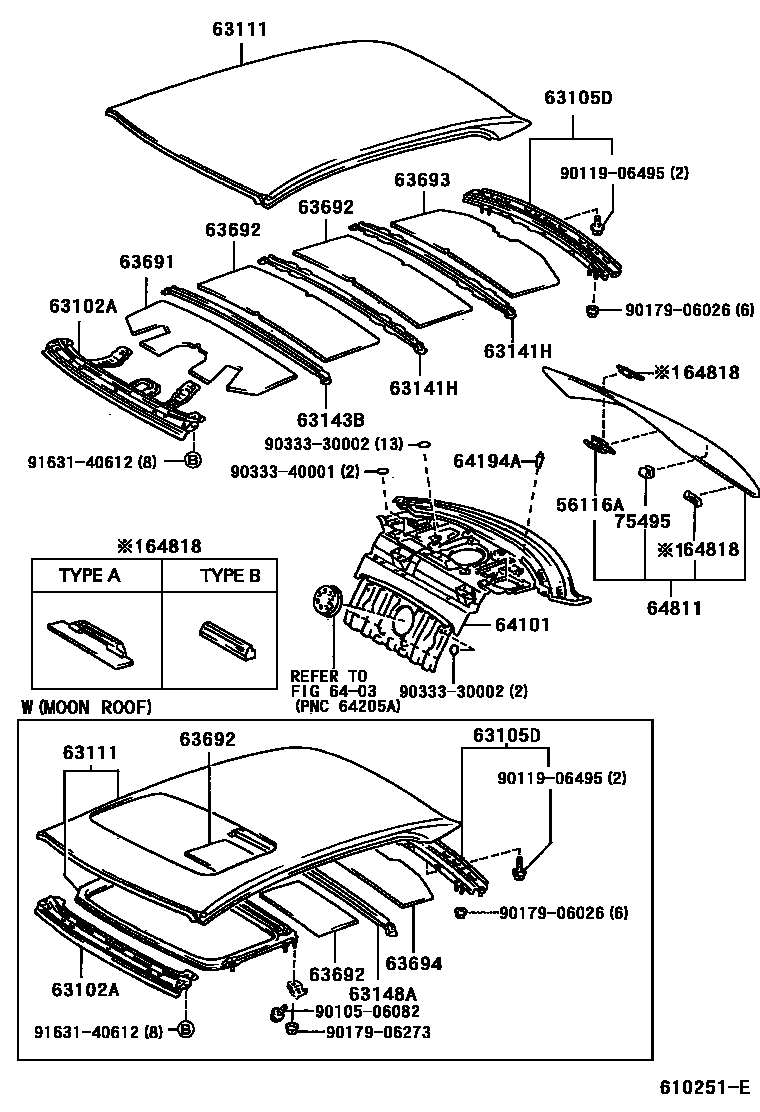

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1

56116ASPACER, WINDSHIELD GLASS

main56116-22080iUCF20¥360199410-199707

main56116-50020iUCF20¥330199707

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-50030iUCF20¥5,800199410-199808

sub63102-50031¥5,800

main63102-50031iUCF20¥5,800199808

main63102-50040iUCF20¥4,640199410-199808

W(MOON ROOF)

sub63102-50041¥4,640

main63102-50041iUCF20¥4,640199808

W(MOON ROOF)

63105DFRAME SUB-ASSY, BACK WINDOW, UPPER

main63105-50020iUCF20¥11,600199410

63111PANEL, ROOF

main63111-50030iUCF20¥59,600199410-199808

sub63111-50031¥59,600

main63111-50031iUCF20¥59,600199808

main63111-50900iUCF20¥70,400199410-199808

W(MOON ROOF)

sub63111-50901¥70,400

main63111-50901iUCF20¥70,400199808

W(MOON ROOF)

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-50020iUCF20¥2,930199410

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-50020iUCF20¥2,920199410

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-50020iUCF20¥4,210199410

63691PAD, ROOF SILENCER, NO.21

main63691-50020iUCF20¥2,650199410-199707

sub63691-50030¥2,650

main63691-50030iUCF20¥2,650199707

63692PAD, ROOF SILENCER, NO.22

main63692-50010iUCF20¥3,640199410-199707

sub63692-50020¥650

main63692-50020iUCF20¥650199410

W(MOON ROOF)

main63692-50030iUCF20¥3,030199707

63693PAD, ROOF SILENCER, NO.23

main63693-50010iUCF20¥3,340199410-199707

sub63693-50020¥3,340

main63693-50020iUCF20¥3,340199707

63694PAD, ROOF SILENCER, NO.24

main63694-50010iUCF20¥1,870199410-199707

sub63694-50020¥1,870

main63694-50020iUCF20¥1,870199707

6403

64101PANEL SUB-ASSY, UPPER BACK

main64101-50080iUCF20..EUR,GEN¥36,200199410-199904

sub64101-50081¥36,400

main64101-50081iUCF20..EUR,GEN¥36,400199904-200008

sub64101-50101¥36,400

main64101-50090iUCF20..ARL¥36,200199410-199904

sub64101-50091¥36,200

main64101-50091iUCF20..ARL¥36,200199904-199908

sub64101-50101¥36,400

sub73708-50020¥2,330

sub73717-50011¥350

main64101-50101iUCF20..ARL¥36,400199908-200008

main64101-50110iUCF20..GEN¥36,200199410-199707

W(REAR AIR CONDITIONER)

sub64101-50111¥36,400

main64101-50110iUCF20..V¥36,200199410-199904

W(REAR COOLER)

sub64101-50111¥36,400

main64101-50111iUCF20..V¥36,400199904-200008

W(REAR COOLER)

sub64101-50122¥30,600

main64101-50120iUCF20..ARL¥36,200199707-199904

W(REAR COOLER)

sub64101-50121¥36,200

main64101-50120iUCF20..ARL¥36,200199410-199707

W(REAR AIR CONDITIONER)

sub64101-50121¥36,200

main64101-50121iUCF20..ARL¥36,200199904-199908

W(REAR COOLER)

sub64101-50122¥30,600

sub73708-50020¥2,330

sub73717-50011¥350

main64101-50122iUCF20..ARL¥30,600199908-200008

W(REAR COOLER)

main64101-50130iUCF20..ARL¥36,200199808-199904

SINGAPORE OR THAILAND SPEC

sub64101-50131¥36,400

main64101-50130iUCF20..V¥36,200199808-199904

W(REAR POWER SEAT)

sub64101-50131¥36,400

main64101-50131iUCF20..V¥36,400199904-200008

W(REAR POWER SEAT)

main64101-50131iUCF20..ARL¥36,400199904-200008

SINGAPORE OR THAILAND SPEC

64194APAD, BACK PANEL SILENCER, UPPER

main64194-30010iUCF20¥190199707

64811GLASS, BACK WINDOW

main64810-50180iUCF20¥115,000199410-199707

*TT,T=4.0,GREEN

main64810-50270iUCF20¥119,000199707

*UVCT,T=5.0,GREEN

64818SPACER, BACK WINDOW GLASS

main56115-30090iUCF20¥210199410-199707

TYPE A:REFER TO ILLUSTRATION

main64818-50030iUCF20¥130199410

TYPE B:REFER TO ILLUSTRATION

75495CLIP, OUTSIDE MOULDING, NO.4

main75495-50030iUCF20¥130199410-199707

main75495-50040iUCF20¥130199707

9010506082

main90105-06082¥80

9011906495

main90119-06495¥120

9017906026

main90179-06026¥70

9017906273

main90179-06273¥120

9033330002

main90333-30002¥70

9033340001

main90333-40001¥100

9163140612

main91631-40612¥120
