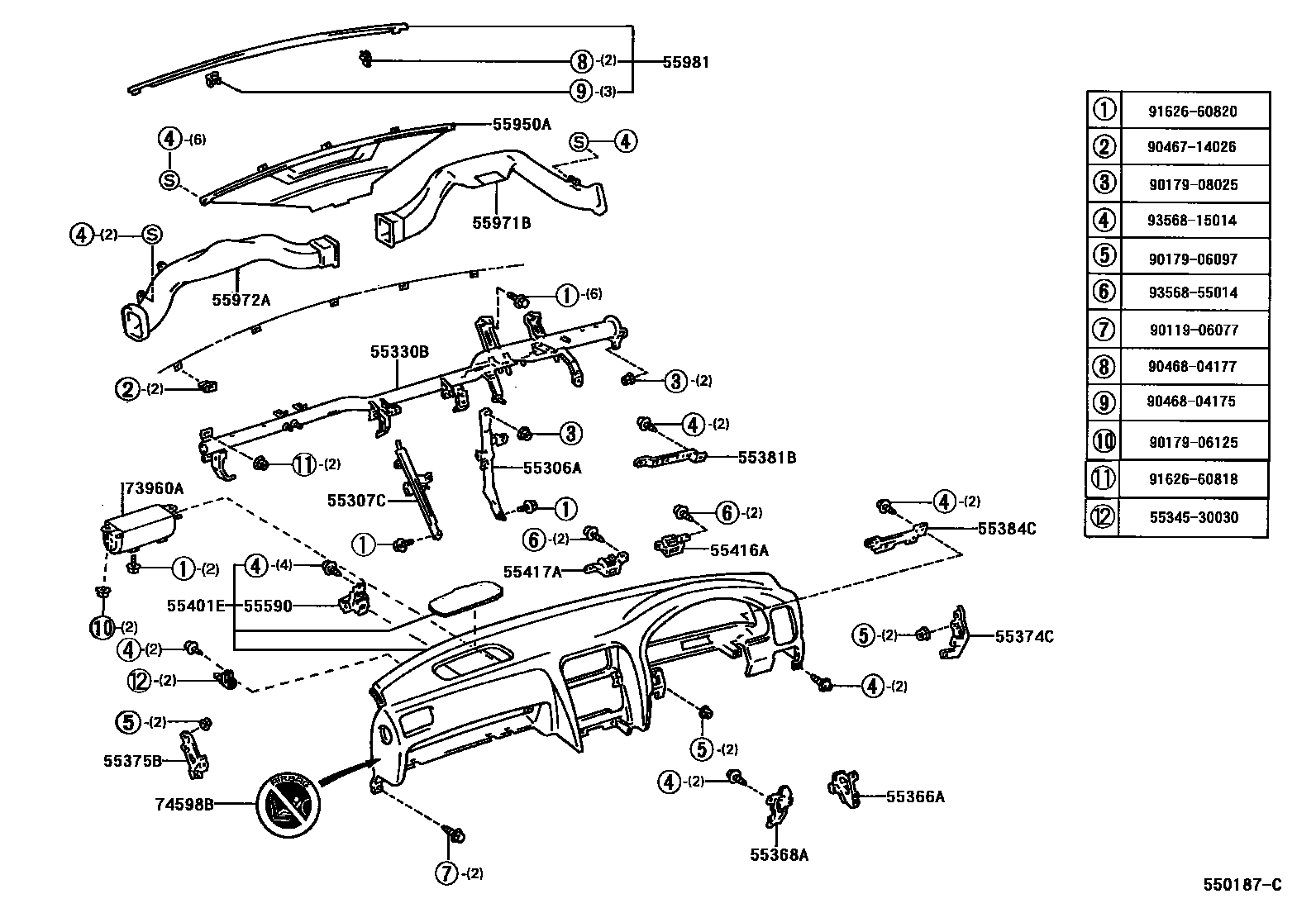

INSTRUMENT PANEL & GLOVE COMPARTMENT
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55330BREINFORCEMENT ASSY, INSTRUMENT PANEL
55366ABRACKET, RADIO MOUNTING, NO.1
55368ABRACKET, RADIO MOUNTING, NO.2
55374CBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1
55375BBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2
55381BBRACKET, FINISH PANEL MOUNTING, NO.1
55384CBRACKET, FINISH PANEL MOUNTING, NO.4
55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY
DK.BLUE GRAY,TRIM1#
BLACK,TRIM2#
OAK,TRIM0#
DK.AGATE,TRIM6#
DK.BLUE GRAY,TRIM1#
BLACK,TRIM2#
OAK,TRIM0#
DK.AGATE,TRIM6#
DK.BLUE GRAY,TRIM1#
BLACK,TRIM2#
SANDAL WOOD,TRIM0#
DK.AGATE,TRIM6#
DK.BLUE GRAY,TRIM1#
BLACK,TRIM2#
SANDAL WOOD,TRIM0#
DK.AGATE,TRIM6#
55416ARETAINER, METER HOOD, NO.1
55417ARETAINER, METER HOOD, NO.2
55590PLATE ASSY, GROVE COMPARTMENT DOOR LOCK STRIKER
55950ANOZZLE ASSY, DEFROSTER
55971BDUCT, SIDE DEFROSTER NOZZLE, NO.1
55972ADUCT, SIDE DEFROSTER NOZZLE, NO.2
55981GARNISH, DEFROSTER NOZZLE, NO.1
73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
74598BLABEL, PASSENGER AIRBAG CAUTION
5534530030GARNISH, GLOVE COMPARTMENT, UPPER
main55345-30030
9011906077
main90119-06077
9017906097
main90179-06097
9017906125
main90179-06125
9017908025
main90179-08025
9046714026
main90467-14026
9046804175
main90468-04175
9046804177
main90468-04177
9162660818
main91626-60818
9162660820
main91626-60820
9165160816
main91651-60816
9356815014
main93568-15014
9356855014
main93568-55014
32 parts on this diagram · 4 diagrams in section
