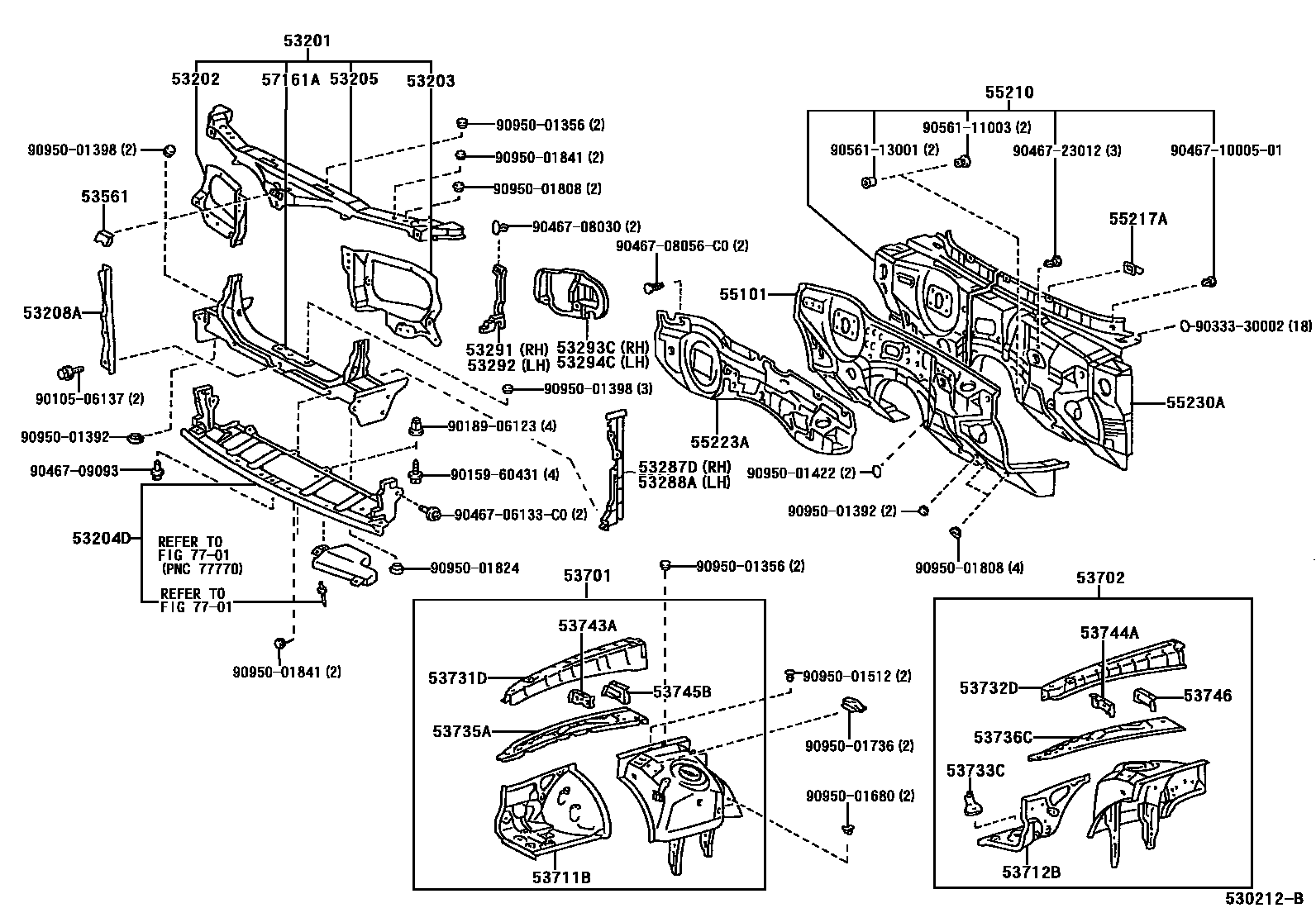

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1

53201SUPPORT SUB-ASSY, RADIATOR

main53201-50040iUCF20..EUR,V199410-199706

sub53201-50042

sub57017-50022

sub90950-01356

sub90950-01749

main53201-50041iUCF20..EUR,V199706-199707

sub53201-50042

sub90950-01356

sub90950-01749

main53201-50050iUCF20..ARL,GEN199410-199706

sub53201-50052

sub57017-50022

sub90950-01749

main53201-50051iUCF20..ARL,GEN199706-199707

sub53201-50052

sub90950-01749

main53201-50060iUCF20..EUR,V199707

main53201-50070iUCF20..ARL,GEN199707

sub53201-50060

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53211-50020iUCF20199410-199706

sub53211-50030

sub90950-01749

main53211-50021iUCF20199706-199707

sub53211-50030

sub90950-01749

main53211-50030iUCF20199707

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53212-50020iUCF20199410-199706

main53212-50021iUCF20199706-199707

sub53212-50030

sub90950-01749

main53212-50030iUCF20199707

sub53212-50020

53204DGUIDE SUB-ASSY, LOWER WIND

main53204-50020iUCF20199410-199707

main53204-50030iUCF20199707

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-50020iUCF20199410-199707

main53205-50030iUCF20199707

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-50010iUCF20199410-199707

main53208-50020iUCF20199707

53287DDUCT, COOL AIR INTAKE

main53287-50010iUCF20199410

53288ADUCT, COOL AIR INTAKE

main53288-50010iUCF20199410

53291SEAL, RADIATOR SUPPORT TO FRAME, RH

main53291-50030iUCF20199410-199707

53292SEAL, RADIATOR SUPPORT TO FRAME, LH

main53292-50030iUCF20199410-199707

53293CDEFLECTOR, RADIATOR SIDE, RH

main53293-50020iUCF20199410-199707

main53293-50030iUCF20199707

53294CDEFLECTOR, RADIATOR SIDE, LH

main53294-50020iUCF20199410-199707

main53294-50030iUCF20199707

53561GUIDE, HOOD AUXILIARY CATCH HOOK

main53561-30010iUCF20199410

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-50110iUCF20..RHD199410-199704

sub53701-50111

main53701-50111iUCF20..RHD199704

main53701-50130iUCF20..LHD199410-199704

sub53701-50131

main53701-50131iUCF20..LHD199704

sub53701-50111

main53701-50140iUCF20..LHD..EUR199410-199704

W(AIR SUSPENSION)

sub53701-50141

main53701-50141iUCF20..LHD..EUR199704

W(AIR SUSPENSION)

sub53701-50121

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-50120iUCF20..LHD..EUR199410-199608

sub53702-50121

sub90115-08112

main53702-50121iUCF20..LHD199608

main53702-50130iUCF20..LHD..EUR199410-199608

W(AIR SUSPENSION)

sub53702-50131

sub90115-08112

main53702-50131iUCF20..LHD..EUR199608

W(AIR SUSPENSION)

main53702-50140iUCF20..V199410-199608

sub53702-50121

main53702-50150iUCF20..ARL,GEN199410-199608

W(*TRC)

sub53702-50151

sub90115-08112

main53702-50151iUCF20..RHD199608

sub53702-50121

main53702-50170iUCF20..RHD199410-199608

sub53702-50151

53711BAPRON, FRONT FENDER, FRONT RH

main53711-50050iUCF20199410-199804

sub53711-50060

main53711-50060iUCF20..LHD..EUR199410

W(AIR SUSPENSION)

main53711-50060iUCF20..V;UCF20..RHD199804

53712BAPRON, FRONT FENDER, FRONT LH

main53712-50030iUCF20199410

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-50030iUCF20199410

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-50030iUCF20199410

53733CPATCH, FRONT FENDER APRON

main53733-50030iUCF20199410

53735AMEMBER, FRONT APRON TO COWL SIDE, LOWER RH

main53735-50030iUCF20199410

53736CMEMBER, FRONT APRON TO COWL SIDE, LOWER LH

main53736-50030iUCF20199410

53743AREINFORCEMENT, FRONT FENDER APRON, FRONT RH

main53743-50020iUCF20199410

53744AREINFORCEMENT, FRONT FENDER APRON, FRONT LH

main53744-50020iUCF20199410

53745BREINFORCEMENT, FRONT FENDER APRON, REAR RH

main53745-50020iUCF20199410

53746REINFORCEMENT, FRONT FENDER APRON, REAR LH

main53746-50020iUCF20199410

55101PANEL SUB-ASSY, DASH

main55101-50040iUCF20..RHD199410-199707

main55101-50041iUCF20..RHD199707

sub55101-50040

main55101-50905iUCF20..LHD199410-199706

sub55101-50906

sub90116-06113

main55101-50906iUCF20..LHD199706

55210INSULATOR ASSY, DASH PANEL

main55210-50030iUCF20..LHD199410-199704

sub55210-50031

main55210-50031iUCF20..LHD199704-199707

sub55210-50050

sub55230-50010

main55210-50040iUCF20..RHD199410-199704

sub55210-50041

main55210-50041iUCF20..RHD199704-199707

sub55210-50060

sub55230-50020

main55210-50050iUCF20..LHD199707

main55210-50060iUCF20..RHD199707

55217ARETAINER, DASH PANEL SILENCER

main55217-50020iUCF20199410-199707

main55217-50030iUCF20199707

55223AINSULATOR, DASH PANEL, OUTER

main55223-50050iUCF20..LHD199410-199702

sub55223-50051

main55223-50051iUCF20..LHD199702-199703

sub55223-50052

main55223-50052iUCF20..LHD199703

main55223-50060iUCF20..RHD199410-199702

sub55223-50061

main55223-50061iUCF20..RHD199702

55230AINSULATOR ASSY, DASH PANEL, NO.4

main55230-50010iUCF20..LHD199707

main55230-50020iUCF20..RHD199707

57161AMEMBER, FRONT CROSS, FRONT W/REAR

main57104-50040iUCF20..EUR,V199410-199707

sub57104-50041

sub90950-01356

main57104-50060iUCF20..ARL,GEN199410-199707

sub57104-50080

main57104-50070iUCF20..EUR,V199707

main57104-50080iUCF20..ARL,GEN199707

7701

9010506137

main90105-06137

9015960431

main90159-60431

9018906123

main90189-06123

9033330002

main90333-30002

9046706133C0

main90467-06133C0

9046708030

main90467-08030

9046708056C0

main90467-08056C0

9046709093

main90467-09093

904671000501

main90467-1000501

9046723012

main90467-23012

9056111003

main90561-11003

9056113001

main90561-13001

9095001356

main90950-01356

9095001392

main90950-01392

9095001398

main90950-01398

9095001422

main90950-01422

9095001512

main90950-01512

9095001680

main90950-01680

9095001736

main90950-01736

9095001808

main90950-01808

9095001824

main90950-01824

9095001841

main90950-01841

55 parts on this diagram · 2 diagrams in section
