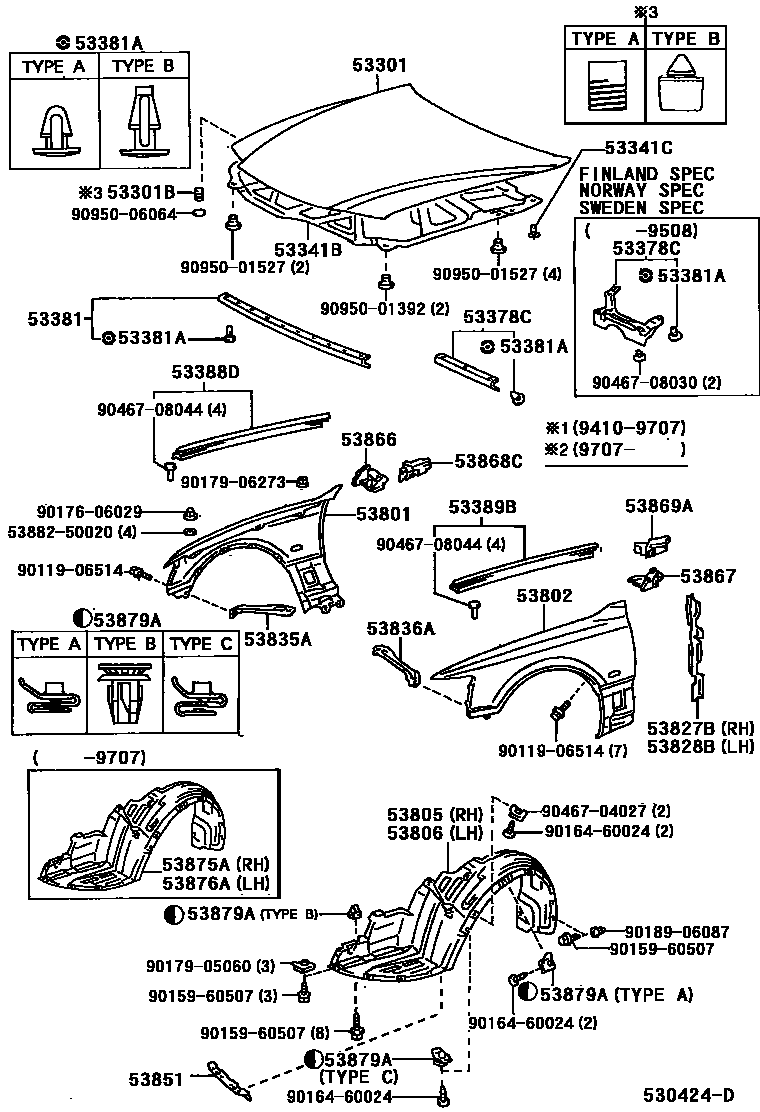

HOOD & FRONT FENDER
53301HOOD SUB-ASSY
53301BCUSHION, HOOD BUMPER
TYPE B:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION
53341CCLIP(FOR HOOD INSULATOR)
53378CSEAL, HOOD AIR INTAKE DUCT
NORWAY SPEC OR SWEDEN SPEC OR FINLAND SPEC
sub53378-50040
NORWAY SPEC OR SWEDEN SPEC OR FINLAND SPEC
53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
TYPE A:REFER TO ILLUSTRATION
NORWAY SPEC OR SWEDEN SPEC OR FINLAND SPEC,TYPE A
TYPE B:REFER TO ILLUSTRATION
53388DSEAL, HOOD TO FRONT FENDER, RH
53389BSEAL, HOOD TO FRONT FENDER, LH
53805SHIELD SUB-ASSY, FRONT FENDER SPLASH, RH
53806SHIELD SUB-ASSY, FRONT FENDER SPLASH, LH
53827BPROTECTOR, FRONT FENDER SIDE PANEL
53828BPROTECTOR, FRONT FENDER SIDE PANEL, LH
53835ABRACE, FRONT FENDER TO APRON, RH
53836ABRACE, FRONT FENDER TO APRON, LH
53851BRACE, FRONT FENDER TO RADIATOR SUPPORT, RH
53866SEAL, FRONT FENDER TO COWL SIDE, RH
53867SEAL, FRONT FENDER TO COWL SIDE, LH
53868CSEAL, FRONT FENDER TO COWL SIDE, NO.2 RH
53869ASEAL, FRONT FENDER TO COWL SIDE, NO.2 LH
53875ALINER, FRONT FENDER, RH
53876ALINER, FRONT FENDER, LH
53879ARETAINER, FRONT FENDER LINER
TYPE C
TYPE C:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION
TYPE B
5388250020PACKING, FRONT FENDER MAIN
main53882-50020
9011906514
main90119-06514
9015960507
main90159-60507
9016460024
main90164-60024
9017606029
main90176-06029
9017905060
main90179-05060
9017906273
main90179-06273
9018906087
main90189-06087
9046704027
main90467-04027
9046708030
main90467-08030
9046708044
main90467-08044
9095001392
main90950-01392
9095001527
main90950-01527
9095006064
main90950-06064
39 parts on this diagram · 1 diagram in section
