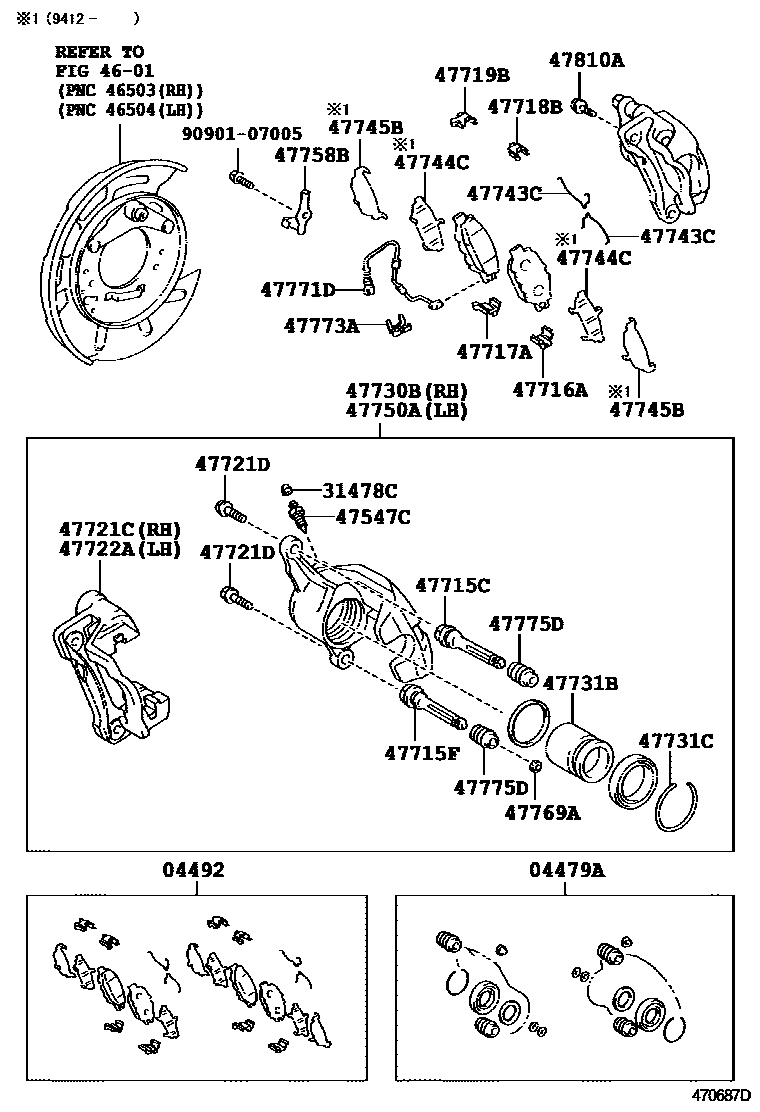

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-50100iUCF20199410-199503

sub04479-50101

main04479-50101iUCF20199503-199608

sub04479-50102

main04479-50102iUCF20..EUR,V;UCF20..(ARL,GEN)..4FC199608

sub04479-50170

main04479-50120iUCF20..ARL,GEN199707

04492PAD KIT, DISC BRAKE, REAR

main04492-50070iUCF20..ARL,GEN199410-199412

sub04492-50071

main04492-50071iUCF20..ARL,GEN199412-199505

sub04466-50050

main04492-50080iUCF20..EUR,V199410-199505

sub04466-50030

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-50020iUCF20199410

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-27030iUCF20..EUR,V199410-199707

47715CPIN, CYLINDER SLIDE(FOR REAR DISC BRAKE)

main47715-50030iUCF20199410

47715FPIN, CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47715-50010iUCF20199410

47716APLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)

main47716-30210iUCF20199608

main47716-50040iUCF20199410-199608

47717APLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE)

main47716-30200iUCF20199608

main47716-50020iUCF20199410-199608

47718BPLATE, PAD SUPPORT, NO.3(FOR REAR DISK BRAKE)

main47717-30100iUCF20199608

main47717-50040iUCF20199410-199608

47719BPLATE, PAD SUPPORT, NO.4(FOR REAR DISK BRAKE)

main47717-30090iUCF20199608

main47717-50020iUCF20199410-199608

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47721-50070iUCF20199410

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90105-08164iUCF20199410

*8-1.00PX23-15

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47722-50060iUCF20199410

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-50110iUCF20199410-199608

sub47730-50111

main47730-50111iUCF20..EUR,V;UCF20..(ARL,GEN)..4FC199608

main47730-50140iUCF20..ARL,GEN199707

47731BPISTON, REAR DISC BRAKE

main47731-30120iUCF20..EUR,V;UCF20..(ARL,GEN)..4FC199608

main47731-30150iUCF20..ARL,GEN199707

main47731-50020iUCF20199410-199608

47731CRING, SET(FOR REAR DISC BRAKE PISTON)

main90522-50002iUCF20199410

47743CSPRING, ANTI-SQUEAL(FOR REAR DISC BRAKE)

main47743-50020iUCF20199410

47744CSHIM, ANTI-SQUEAL, NO.1(FOR REAR DISC BRAKE)

main47744-50080iUCF20..EUR,V199410-199707

47745BSHIM, ANTI-SQUEAL, NO.2(FOR REAR DISC BRAKE)

main47745-50080iUCF20..EUR,V199410-199707

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-50110iUCF20199410-199608

sub47750-50111

main47750-50111iUCF20..EUR,V;UCF20..(ARL,GEN)..4FC199608

main47750-50140iUCF20..ARL,GEN199707

47758BBRACKET, WIRE CLAMP, RH NO.1

main47758-50050iUCF20199410

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-50010iUCF20199410

47771DWIRE, PAD WEAR INDICATOR RH

main47771-50060iUCF20199410

47773ARETAINER, PAD WEAR INDICATOR

main47773-50020iUCF20199410

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47775-30070iUCF20199608

sub47775-50010

main47775-50010iUCF20199410-199608

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-12174iUCF20199410

9090107005

main90901-07005
