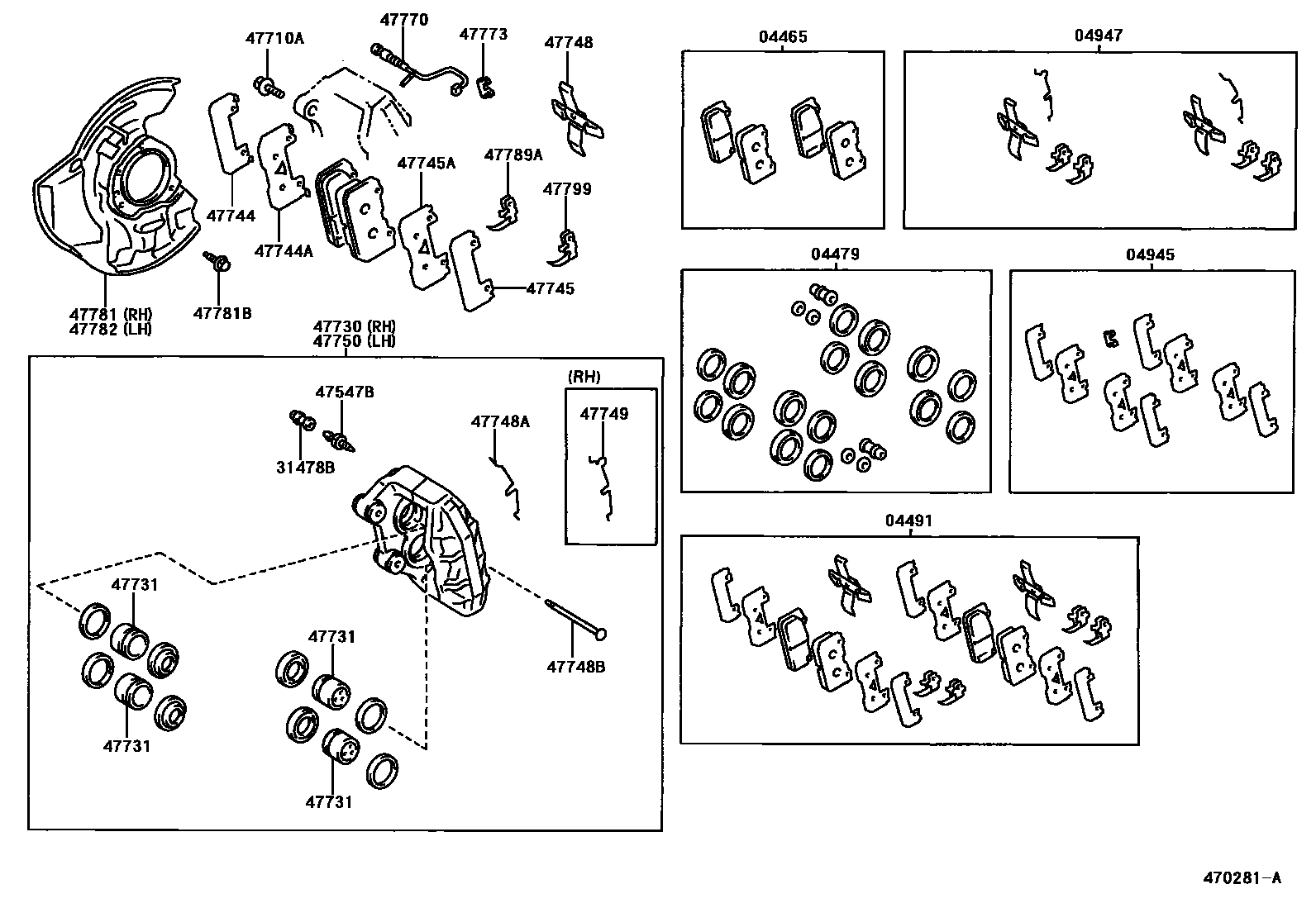

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-50050iUCF20..ARL,GEN199410-199607

sub04465-50070

main04465-50060iUCF20..EUR199410-199707

MARK NBK PN532H

sub04465-50220

main04465-50070iUCF20..ARL,GEN199607-200008

main04465-50161iUCF20..V199410-200008

main04465-50220iUCF20..EUR,V199707-200008

MARK NBK PN532H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-50090iUCF20199410-199503

sub04479-50091

main04479-50091iUCF20199503-200008

04491PAD KIT, DISC BRAKE, FRONT

main04491-50210iUCF20..ARL,GEN199410-199505

sub04465-50050

main04491-50220iUCF20..EUR,V199410-199505

sub04465-50060

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-50010iUCF20199410-199606

sub04945-50011

main04945-50011iUCF20199606-199609

sub04945-50012

main04945-50012iUCF20199609-200008

04947FITTING KIT, DISC BRAKE, FRONT

main04947-50080iUCF20199410-199606

sub04947-50081

main04947-50081iUCF20199606-199707

sub04947-50082

main04947-50082iUCF20199707-200008

sub04947-50083

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-14010iUCF20199410

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20030iUCF20199410-200008

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12228iUCF20199410

*12-1.25PX32-24

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-50100iUCF20199410-199503

sub47730-50101

sub47389-50020

main47730-50101iUCF20199503-199608

sub47730-50102

main47730-50102iUCF20199608-200008

47731PISTON, FRONT DISC BRAKE

main47731-50060iUCF20199410-200008

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47745-50060iUCF20199410-199707

RH

main47745-50070iUCF20199410-199707

LH

47744ASHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE)

main47744-50070iUCF20199410-199707

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47745-50060iUCF20199410-199707

LH

main47745-50070iUCF20199410-199707

RH

47745ASHIM, ANTI-SQUEAL, NO.4(FOR FRONT DISC BRAKE)

main47744-50070iUCF20199410-199707

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-50010iUCF20199410-200008

47748ACLIP(FOR FRONT DISC BRAKE ANTI-RATTLE)

main90468-12022iUCF20199410-200008

47748BPIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)

main47735-50010iUCF20199410-200008

47749CLIP, PIN HOLD

main47749-50020iUCF20199410-200008

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-50100iUCF20199410-199503

sub47750-50101

sub47389-50020

main47750-50101iUCF20199503-199608

sub47750-50102

main47750-50102iUCF20199608-200008

47770WIRE ASSY, PAD WEAR INDICATOR, FRONT RH

main47770-50030iUCF20199410-200005

sub47770-50031

main47770-50031iUCF20200005-200008

47773RETAINER, PAD WEAR INDICATOR

main47773-50030iUCF20199410-200008

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-50030iUCF20199410-199609

sub47781-50031

sub90148-60028

main47781-50031iUCF20199609

47781BBOLT(FOR DUST COVER SETTING)

main90119-06227iUCF20199410-199609

*6-1.0PX14-7.5

main90148-60028iUCF20199609

*6-1.0PX14-10.5

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-50030iUCF20199410-199609

sub47782-50031

sub90148-60028

main47782-50031iUCF20199609

47789ASPACER, FRONT DISC BRAKE PAD, NO.1

main47789-50010iUCF20199410-199503

sub47789-50011

main47789-50011iUCF20199503-199612

sub47789-50012

main47789-50012iUCF20199612-200008

47799SPACER, DISC BRAKE PAD, NO.2

main47789-50010iUCF20199410-199503

sub47789-50011

main47789-50011iUCF20199503-199612

sub47789-50012

main47789-50012iUCF20199612-200008

26 parts on this diagram · 1 diagram in section
