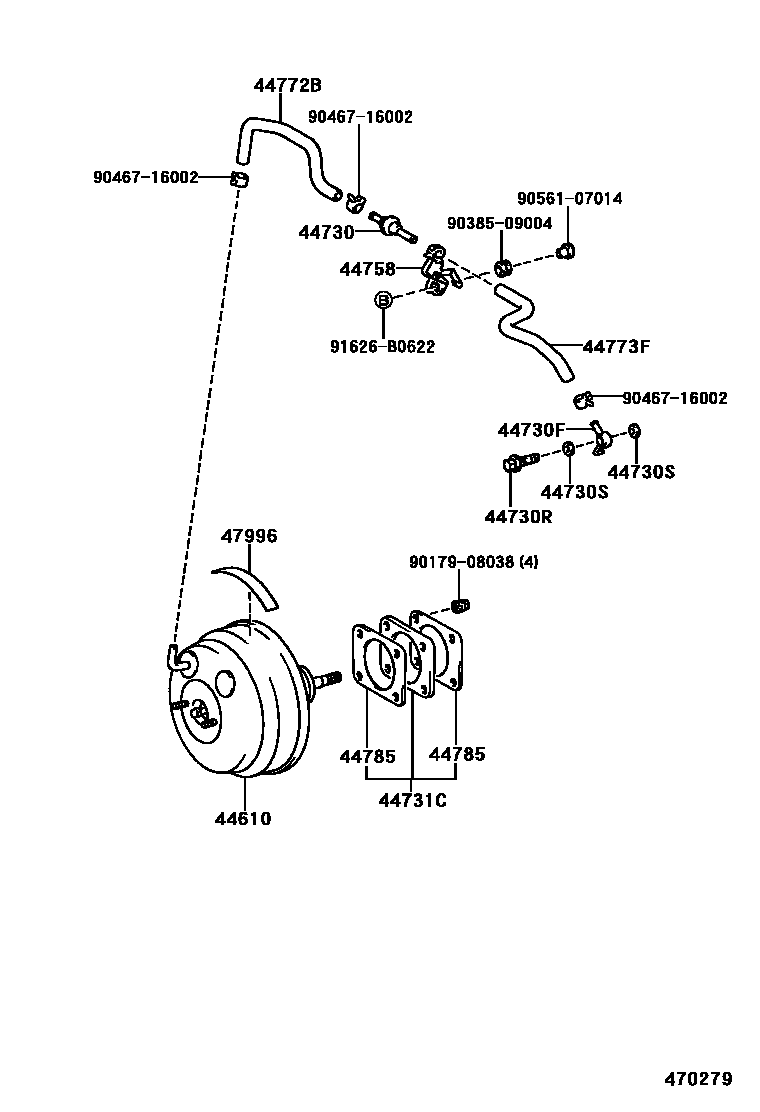

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1

44610BOOSTER ASSY, BRAKE

main44610-50180iUCF20..LHD..EUR199410-199608

sub44610-50181

main44610-50181iUCF20..LHD..EUR199608-199707

main44610-50200iUCF20..ARL,GEN199410-199608

sub44610-50201

main44610-50201iUCF20..ARL,GEN199608-199707

main44610-50210iUCF20..RHD..EUR199410-199608

sub44610-50211

main44610-50211iUCF20..RHD..EUR199608-199707

main44610-50230iUCF20..V199410-199608

sub44610-50231

main44610-50231iUCF20..V199608-199707

main44610-50250iUCF20..LHD199707-199801

sub44610-50251

main44610-50251iUCF20..LHD199801

main44610-50260iUCF20..RHD..EUR199707-199801

sub44610-50261

main44610-50261iUCF20..RHD..EUR199801

main44610-50270iUCF20..ARL,GEN199707

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-40040iUCF20..ARL,GEN199707

main44730-50010iUCF20199410-199707

main44730-50020iUCF20..EUR,V199707

44730FUNION, VACUUM HOSE(FOR MANIFOLD SIDE)

main90405-09177iUCF20199410-199707

main90904-05003iUCF20..RHD199707

main90904-05004iUCF20..LHD199707

44730RBOLT, UNION(FOR VACUUM HOSE UNION)

main90401-12012iUCF20199410

44730SGASKET(FOR VACUUM HOSE UNION)

main90430-12005iUCF20199410

44731CBRACKET, BRAKE BOOSTER

main44731-50011iUCF20199410-199707

sub44731-50020

main44731-50020iUCF20199707

44758BRACKET, VACUUM CHECK VALVE

main44758-40020iUCF20199707

main44758-50011iUCF20..LHD199410-199707

main44758-50021iUCF20..RHD199410-199707

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-33040iUCF20..LHD199410-199707

44772BHOSE, CHECK VALVE TO BRAKE BOOSTER

main44772-50040iUCF20..LHD199410-199707

main44772-50060iUCF20..RHD199410-199707

44773FHOSE, UNION TO CHECK VALVE

main44773-50010iUCF20..RHD199410-199707

main44773-50020iUCF20..LHD199707

main44773-50030iUCF20..RHD199707

44785GASKET, BRAKE BOOSTER

main44785-50010iUCF20199410

47996LABEL, BRAKE BLEED NOTICE

main47996-50010iUCF20..ARL,GEN;UCF20..LHD..EUR199410-199608

main47996-50030iUCF20..ARL,GEN;UCF20..LHD..EUR199608-199707

sub47996-50050

main47996-50050iUCF20199707

9017908038

main90179-08038

9038509004

main90385-09004

9046716002

main90467-16002

9056107014

main90561-07014

91626B0622

main91626-B0622

17 parts on this diagram · 4 diagrams in section
