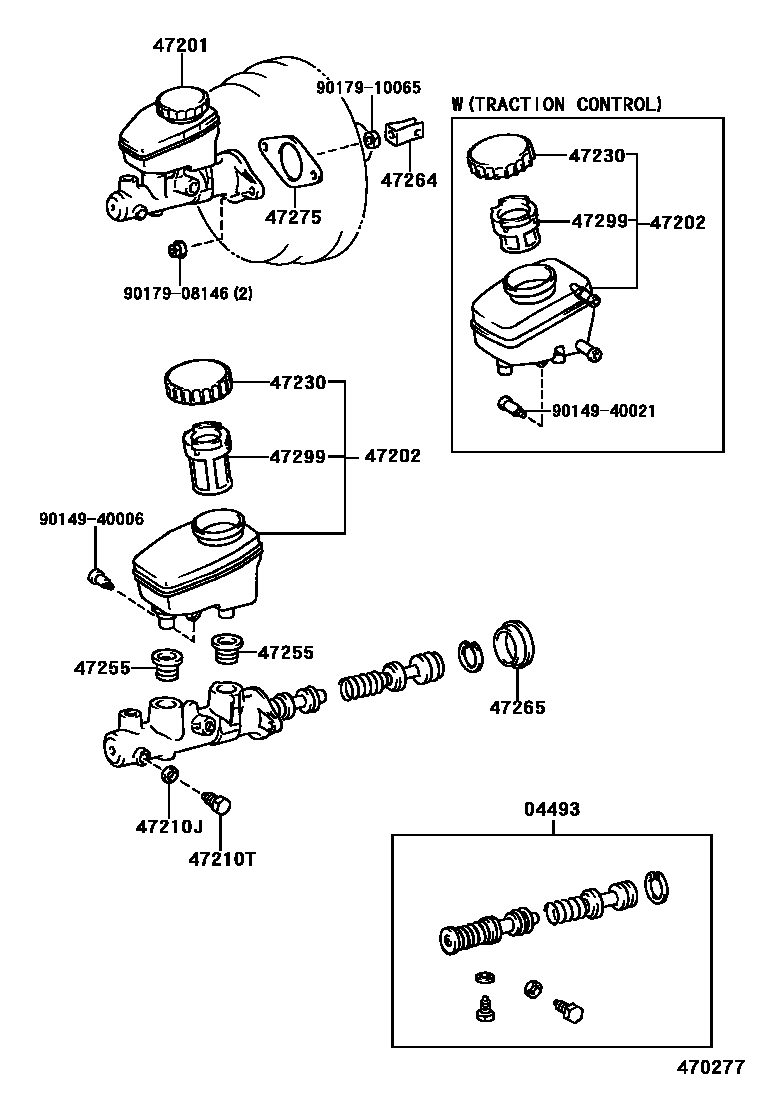

BRAKE MASTER CYLINDER
04493CYLINDER KIT, BRAKE MASTER
47201CYLINDER SUB-ASSY, BRAKE MASTER
W(TRACTION CONTROL)
W(TRACTION CONTROL)
47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
sub47220-50090
sub47220-50100
sub47220-50110
W(TRACTION CONTROL)
47210JGASKET(FOR MASTER CYLINDER)
W(*TRC)
47210TBOLT(FOR BRAKE MASTER CYLINDER)
W(*TRC)
47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
sub47230-47090
47255GROMMET, MASTER CYLINDER RESERVOIR
47264CLEVIS, MASTER CYLINDER PUSH ROD
47265BOOT, MASTER CYLINDER
47275GASKET, BRAKE MASTER CYLINDER
47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR
W(TRACTION CONTROL)
9014940006
main90149-40006
9014940021
main90149-40021
9017908146
main90179-08146
9017910065
main90179-10065
15 parts on this diagram · 4 diagrams in section
