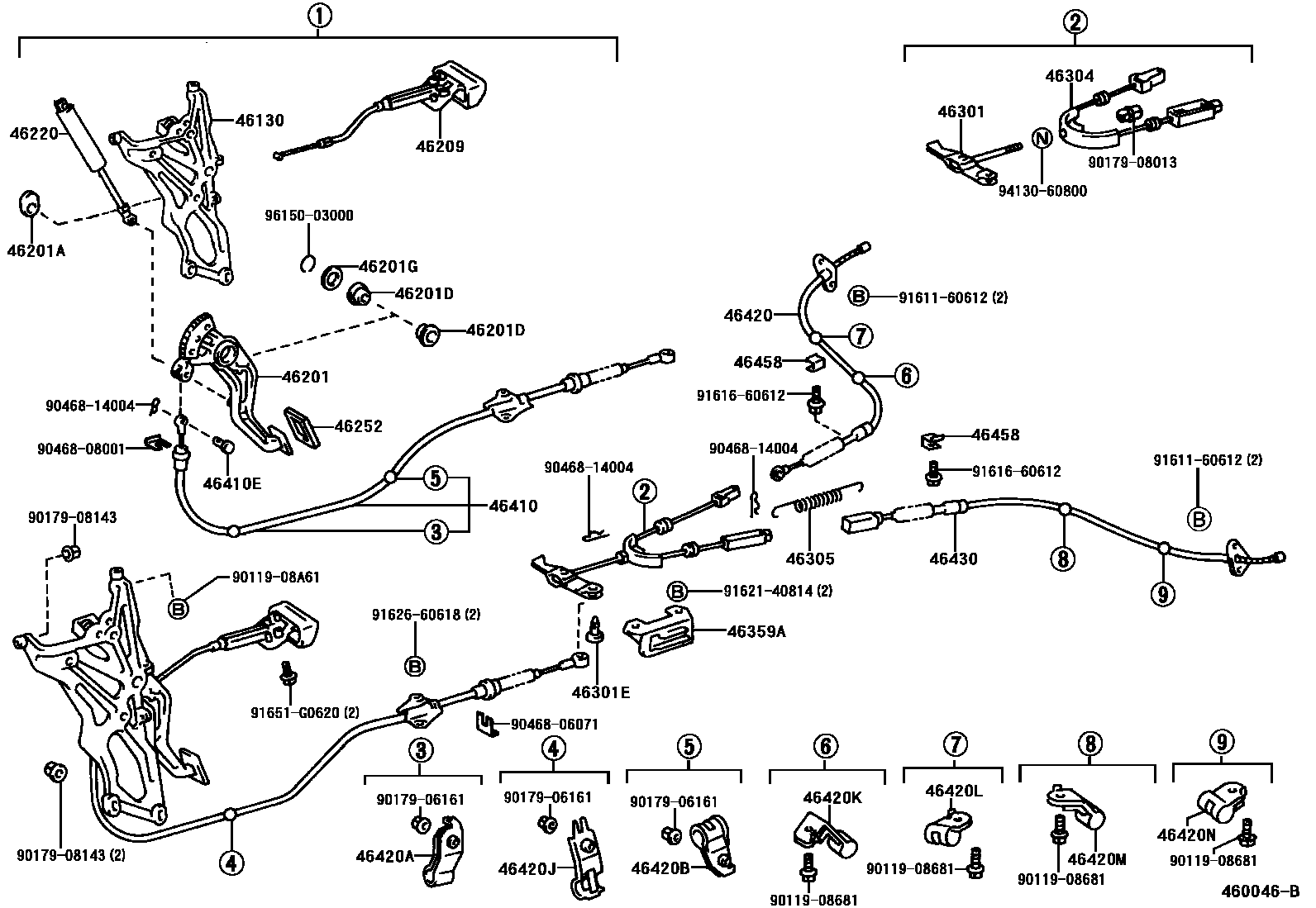

PARKING BRAKE & CABLE
46130BRACKET ASSY, PARKING BRAKE PEDAL
46201PEDAL SUB-ASSY, PARKING BRAKE
46201ACUSHION(FOR PARKING BRAKE PEDAL)
46201DBUSH(FOR PARKING BRAKE PEDAL)
RH
LH
46201GSPACER(FOR PARKING BRAKE PEDAL)
46209CABLE SUB-ASSY, PARKING BRAKE RELEASE
DK.BLUE GRAY,TRIM1#
BLACK,TRIM2#
OAK,TRIM0#
SANDAL WOOD,TRIM0#
DK.AGATE,TRIM6#
46220ABSORBER ASSY, PARKING BRAKE PEDAL RETURN
46301LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE
46301EPIN, W/HOLE(FOR INTERMEDIATE LEVER)
46304EQUALIZER SUB-ASSY, PARKING BRAKE
46305SPRING, PARKING BRAKE RETURN W/DAMPER
46359ABRACKET, PARKING BRAKE INTERMEDIATE LEVER SUPPORT
46410CABLE ASSY, PARKING BRAKE, NO.1
46410EPIN, W/HOLE(FOR PARKING BRAKE CABLE NO.1)
46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)
46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)
46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)
46420KCLAMP, NO.4(FOR PARKING BRAKE CABLE)
46420LCLAMP, NO.5(FOR PARKING BRAKE CABLE)
46420MCLAMP, NO.6(FOR PARKING BRAKE CABLE)
46420NCLAMP, NO.7(FOR PARKING BRAKE CABLE)
46458RETAINER, CABLE
9011908681
main90119-08681
9011908A61
main90119-08A61
9017906161
main90179-06161
9017908013
main90179-08013
9017908143
main90179-08143
9046806071
main90468-06071
9046808001
main90468-08001
9046814004
main90468-14004
9161160612
main91611-60612
9161660612
main91616-60612
9162140814
main91621-40814
9162660618
main91626-60618
91651G0620
main91651-G0620
9413060800
main94130-60800
9615003000
main96150-03000
40 parts on this diagram · 4 diagrams in section
