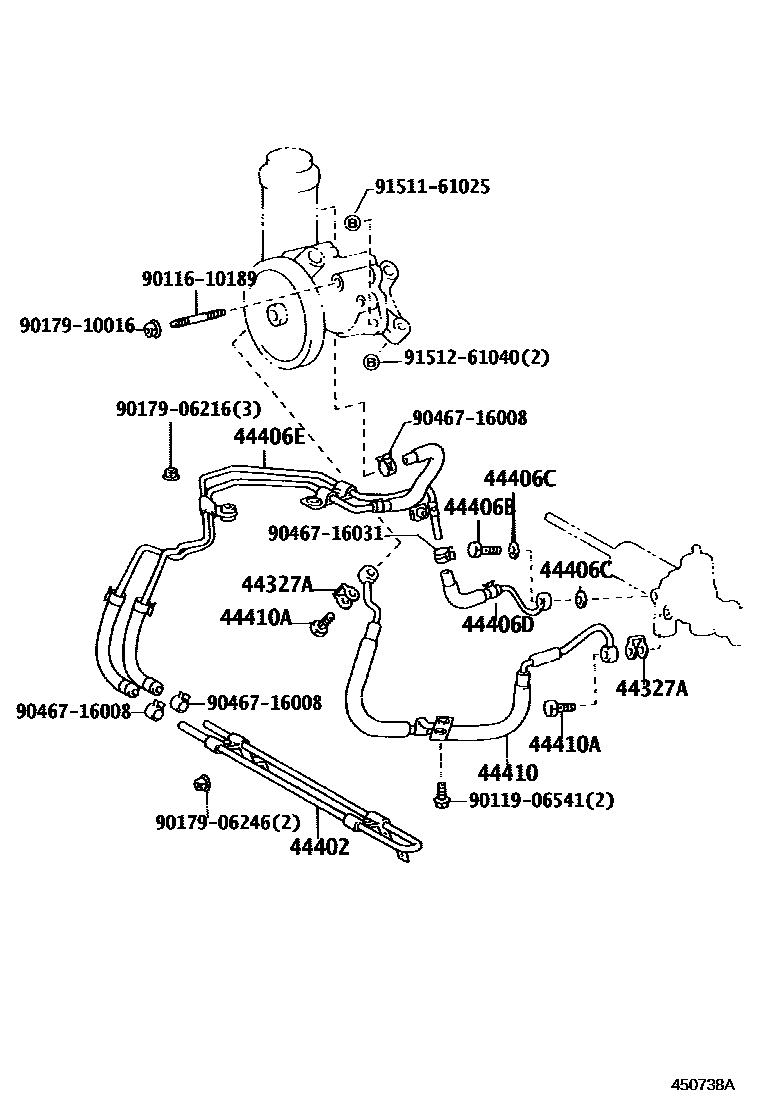

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1

44327AGASKET, PRESSURE PORT, NO.1

main44327-30030iUCF20199410

44402COOLER SUB-ASSY, POWER STEERING OIL, NO.1

main44402-50060iUCF20..LHD..EUR199410

main44402-50070iUCF20..V199410

ISRAEL SPEC

main44402-50080iUCF20..RHD199410

44406BBOLT, UNION(FOR RETURN TUBE)

main96341-11703iUCF20199410

sub90401-17005

44406CGASKET(FOR RETURN TUBE)

main90430-17006iUCF20199410-199707

main90430-17008iUCF20199707

44406DTUBE SUB-ASSY, RETURN, NO.1

main44406-50080iUCF20..RHD199410-199707

main44406-50100iUCF20..LHD199410-199707

main44406-50160iUCF20..LHD199707

main44406-50170iUCF20..RHD199707

44406ETUBE SUB-ASSY, RETURN, NO.2

main44406-50110iUCF20..LHD199410-199707

main44406-50120iUCF20..RHD199410-199608

sub44406-50121

main44406-50121iUCF20..RHD199608-199707

main44406-50180iUCF20..RHD199707

main44406-50190iUCF20..LHD199707

44410TUBE ASSY, PRESSURE FEED

main44410-50040iUCF20..LHD199410-199707

main44410-50050iUCF20..RHD199410-199707

main44410-50060iUCF20..LHD199707

main44410-50070iUCF20..RHD199707

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main96341-41603iUCF20199410

9011610189

main90116-10189

9011906541

main90119-06541

9017906216

main90179-06216

9017906246

main90179-06246

9017910016

main90179-10016

9046716008

main90467-16008

9046716031

main90467-16031

9151161025

main91511-61025

9151261040

main91512-61040

17 parts on this diagram · 4 diagrams in section
