FRONT AXLE HUB

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-50021iUCF20199410

sub43502-50022

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02070iUCF20199410

sub90942-02049

43501EBEARING (FOR FRONT AXLE HUB RH)

main90903-63006iUCF20199410-199707

main90903-63011iUCF20199707

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-50021iUCF20199410

sub43502-50022

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02070iUCF20199410

sub90942-02049

43502EBEARING (FOR FRONT AXLE HUB LH)

main90903-63006iUCF20199410-199707

main90903-63011iUCF20199707

43510LNUT (FOR STEERING KNUCKLE RH)

main90179-24005iUCF20199410

43511FRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-82001iUCF20199410

43511GSEAL, OIL (FOR FRONT AXLE HUB OUTER RH)

main90311-50016iUCF20199410

43512DISC, FRONT

main43512-50130iUCF20199410-199511

sub43512-50150

main43512-50150iUCF20..EUR,V199509-199607

sub43512-50151

main43512-50151iUCF20199607-199704

sub43512-50152

main43512-50152iUCF20199704

43512CSCREW (FOR FRONT DISC)

main90155-60002iUCF20199410-199707

43512ERING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-82001iUCF20199410

43512FSEAL, OIL (FOR FRONT AXLE HUB OUTER LH)

main90311-50016iUCF20199410

43514BCAP, FRONT AXLE HUB GREASE, RH

main43514-50010iUCF20199410

43514CCAP, FRONT AXLE HUB GREASE, LH

main43514-50010iUCF20199410

43515ROTOR, SKID CONTROL, FRONT

main43515-50010iUCF20199410

43520CNUT (FOR STEERING KNUCKLE LH)

main90179-24005iUCF20199410

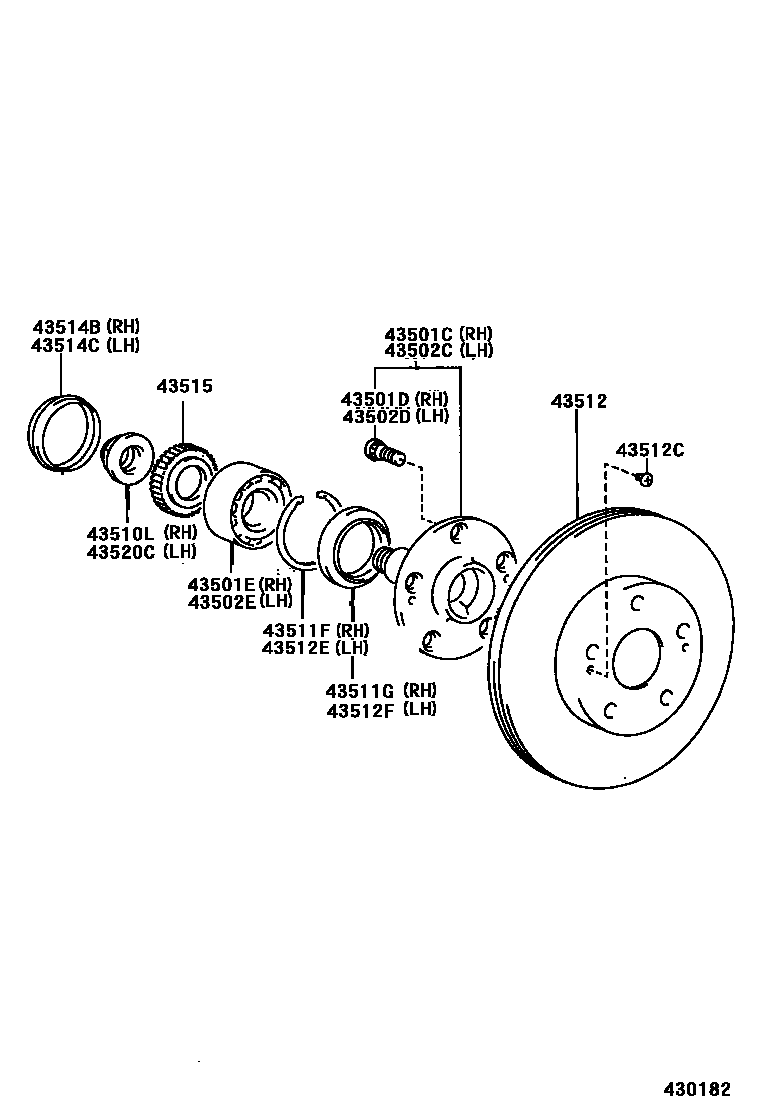

17 parts on this diagram · 1 diagram in section
