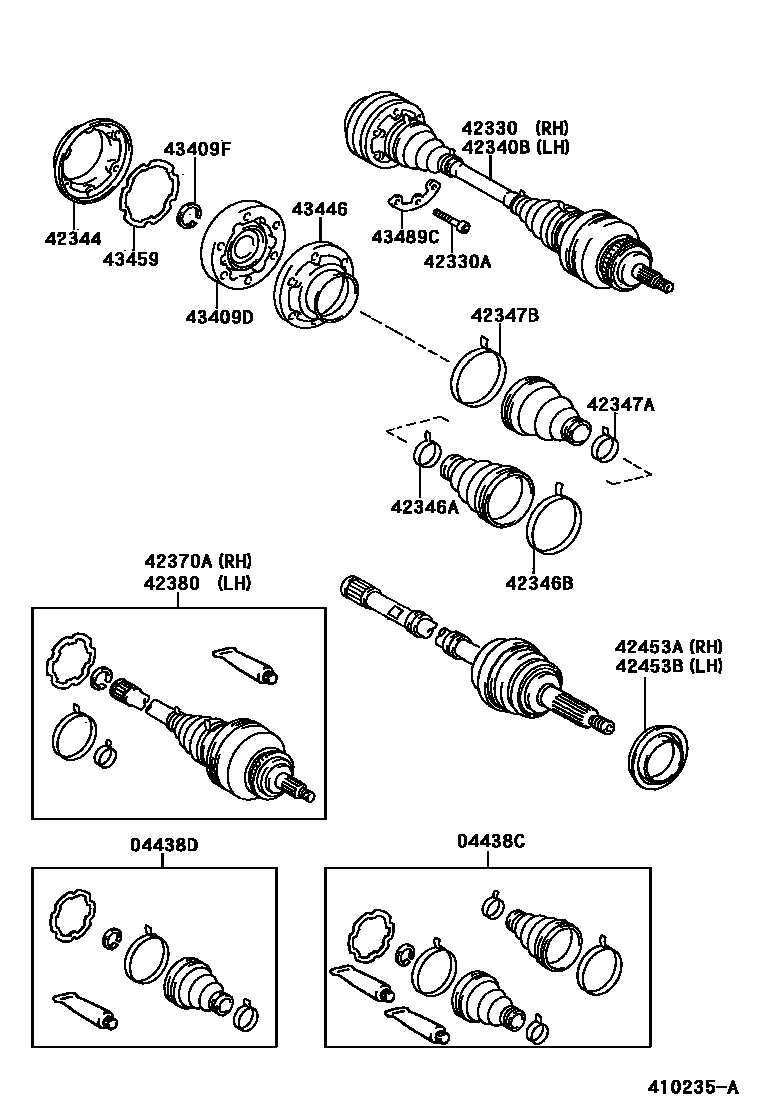

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1

04438CBOOT KIT, REAR DRIVE SHAFT

main04437-24040iUCF20¥10,800199410-199809

sub04437-24041¥10,800

main04437-53040iUCF20¥10,800199809

sub04437-24041¥10,800

04438DBOOT KIT, REAR DRIVE SHAFT INBOARD JOINT

main04437-24030iUCF20¥6,700199410-199809

sub04437-24031¥6,700

main04437-53030iUCF20¥6,700199809

sub04437-24031¥6,700

42330SHAFT ASSY, REAR DRIVE, RH

main42330-50030iUCF20¥61,700199410

42330ABOLT(FOR REAR DRIVE SHAFT)

main90110-12003iUCF20¥300199410

*12-1.25PX53-28

42340BSHAFT ASSY, REAR DRIVE, LH

main42340-50030iUCF20¥59,200199410

42344COVER, REAR AXLE INBOARD JOINT END

main42344-50011iUCF20¥750199410

42346ACLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT)

main90949-01838iUCF20¥530199410

42346BCLAMP, NO. 2 (FOR RR DRIVE SHAFT OUTBOARD JOINT BOOT)

main90949-01837iUCF20¥450199410

42347ACLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)

main90949-01838iUCF20¥530199410

42347BCLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)

main90949-01837iUCF20¥450199410

42370ASHAFT ASSY, REAR DRIVE OUTBOARD JOINT, RH

main42370-59035iUCF20¥49,000199410-199809

sub42370-59036¥49,000

main42370-59036iUCF20¥49,000199809

sub42370-59037¥49,000

42380SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, LH

main42380-59035iUCF20¥47,500199410-199809

sub42380-59036¥47,300

main42380-59036iUCF20¥47,300199809

sub42380-59037¥47,400

42453ADEFLECTOR, REAR WHEEL BEARING DUST, NO.3 RH

main42453-50010iUCF20¥690199410-200008

42453BDEFLECTOR, REAR WHEEL BEARING DUST, NO.3 LH

main42453-50010iUCF20¥690199410

43409DJOINT SUB-ASSY, REAR DRIVE SHAFT CROSS GROOVE

main43409-24010iUCF20¥29,700199410

43409FRING, SNAP (FOR REAR DRIVE SHAFT CROSS GROOVE JOINT)

main90520-26028iUCF20¥110199410

43446COVER, REAR AXLE INBOARD JOINT

main43446-24020iUCF20¥1,240199410

43459GASKET, REAR AXLE INBOARD JOINT END COVER

main43459-50011iUCF20¥340199410

43489CWASHER, REAR DRIVE SHAFT

main43489-50010iUCF20¥650199410

19 parts on this diagram · 3 diagrams in section
