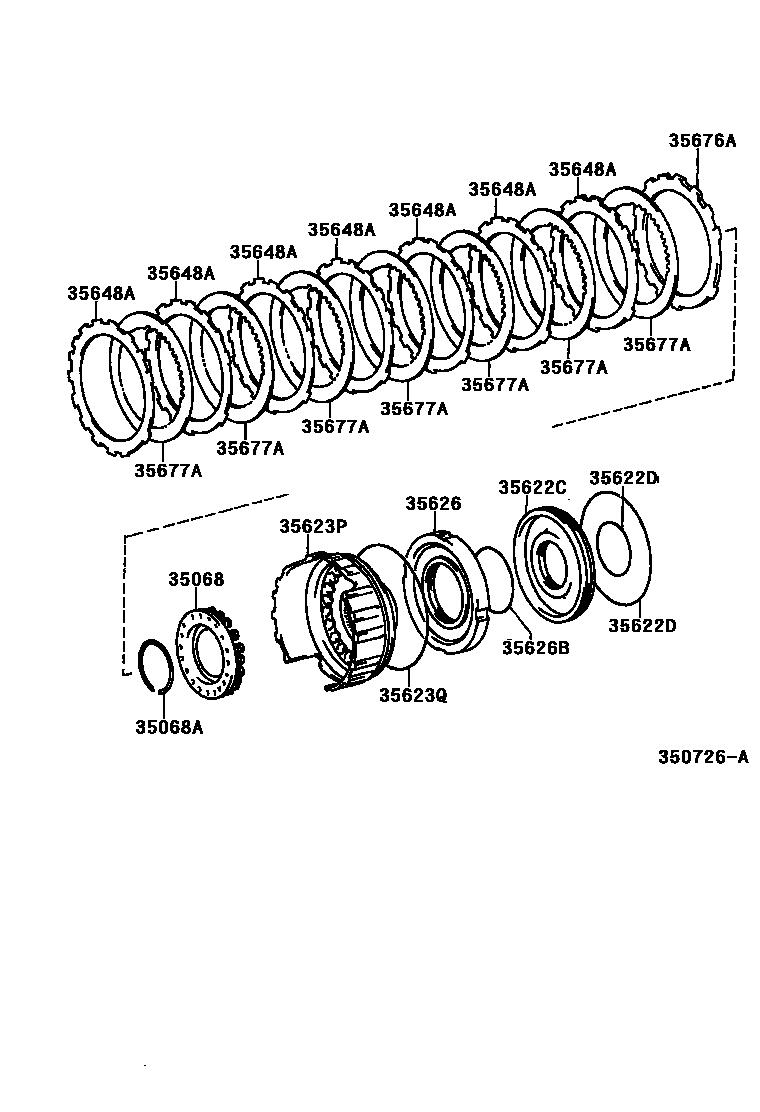

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)
35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN
35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)
35622CPISTON, 1ST & REVERSE BRAKE, NO.1
35622DRING, O (FOR 1ST & REVERSE BRAKE PISTON NO.1)
INNER
OUTER
35623PPISTON, 1ST & REVERSE BRAKE, NO.2
35623QRING, O (FOR 1ST & REVERSE BRAKE PISTON NO.2)
35626SLEEVE, BRAKE REACTION
35626BRING (FOR BRAKE REACTION SLEEVE INNER)
35648APLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)
T=2.0
T=2.2
T=2.4
T=2.6
T=2.8
T=3.0
T=1.8
T=1.9
T=2.1
T=2.3
T=2.5
T=2.7
T=2.9
35676AFLANGE, BRAKE (FOR 1ST & REVERSE BRAKE)
T=5.2
T=5.4
T=5.0
T=4.8
T=4.6
T=4.4
T=4.2
T=4.0
T=6.0
35677ADISC, CLUTCH (FOR 1ST & REVERSE BRAKE)
11 parts on this diagram · 2 diagrams in section
