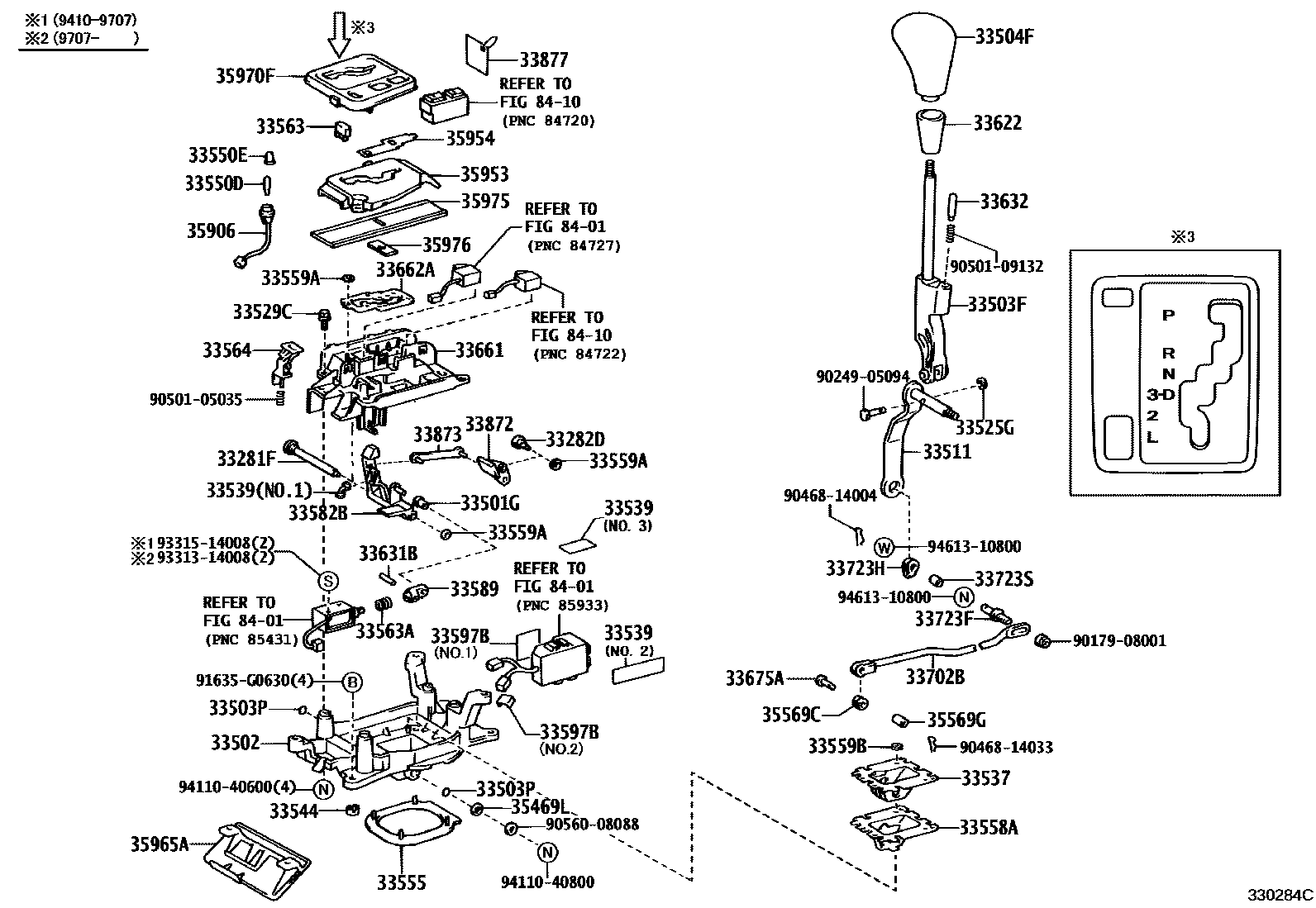

SHIFT LEVER & RETAINER
33281FPIN, LEVER LOCK (FOR FLOOR SHIFT)
33282DPIN, LEVER LOCK, NO.2
33501GBUSH (FOR FLOOR SHIFT CONTROL SHAFT)
33502PLATE SUB-ASSY, SHIFT LEVER
33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
33503PRING, O(FOR SHIFT LEVER)
33504FKNOB SUB-ASSY, SHIFT LEVER
LEXUS 10TH ANNIVERSARY EDITION(G.C.C.),DK.BLUE GRAY,TRIM15
sub33542-50060
LEXUS 10TH ANNIVERSARY EDITION(EUROPE),BLACK,TRIM27
sub33542-50060
LEXUS 10TH ANNIVERSARY EDITION(G.C.C.),BLACK,TRIM27
sub33542-50060
LEXUS 10TH ANNIVERSARY EDITION(G.C.C.),SANDAL WOOD,TRIM03
sub33542-50060
33511SHAFT, CONTROL (FOR FLOOR SHIFT)
33525GRING, SHIFT LEVER
33529CBOLT, SHIFT LEVER
33537PLATE, CONTROL LEVER
33539CUSHION, SHIFT LEVER ANTI-RATTLE
NO.1
NO.2
NO.3
NO.4
NO.4
NO.5
NO.5
NO.6
33544INSERT, SHIFT LEVER, NO.1
33550DBULB, POSITION INDICATOR LAMP
12V 1.2W W/O SOCKET
33550ECAP, POSITION INDICATOR LAMP
33555BOOT, SHIFT LEVER
33558ASEAL, SHIFT LEVER BOOT DUST, NO.1
33559ANUT, SHIFT LEVER, NO.1
33559BNUT, SHIFT LEVER, NO.2
33563BUTTON, SHIFT LOCK RELEASE
33563ASPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON)
33564LINK, SHIFT LOCK RELEASE, NO.1
33582BSTOPPER, SHIFT LOCK PLATE (FOR FLOOR SHIFT)
33589LINK, SHIFT LOCK SOLENOID
33597BSEAT, SHIFT LEVER, NO.1 (FOR FLOOR SHIFT)
NO.1
NO.2
33622COVER, SHIFT LEVER KNOB, NO.1
33631BPIN, SLOTTED SPRING (FOR DETENT ROD)
33632ROD, DETENT, NO.2
33661HOUSING, SHIFT LEVER GUIDE
33662ACUSHION, SHIFT LEVER GUIDE
33675APIN, W/HOLE (FOR TRANSMISSION CONTROL ROD)
33723FSWIVEL, CONNECTING ROD (FOR FLOOR SHIFT)
33723HGROMMET (FOR FLOOR SHIFT CONTROL SHAFT)
33723SBUSH (FOR CONNECTING ROD SWIVEL)
33872LINK, SHIFT LOCK RELEASE, NO.2
33877LABEL, SHIFT LOCK INFORMATION, NO.1
35469LSPACER, SHIFT LEVER
35569CGROMMET (FOR TRANSMISSION CONTROL ROD)
35569GBUSH (FOR TRANSMISSION CONTROL ROD)
35953GUIDE, POSITION INDICATOR LIGHT
35965AGUIDE, SHIFT LEVER SLIDE COVER
35970FHOUSING ASSY, POSITION INDICATOR
W(AIR SUSPENSION)
W(REAR DOOR CURTAIN)
W(AIR SUSPENSION)
W(REAR DOOR CURTAIN)
35975COVER, SLIDE (FOR POSITION INDICATOR)
35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
8401
8410
9017908001
main90179-08001
9024905094
main90249-05094
9046814004
main90468-14004
9046814033
main90468-14033
9050105035
main90501-05035
9050109132
main90501-09132
9056008088
main90560-08088
91635G0630
main91635-G0630
9331314008
main93313-14008
9331514008
main93315-14008
9411040600
main94110-40600
9411040800
main94110-40800
9461310800
main94613-10800
63 parts on this diagram · 4 diagrams in section
