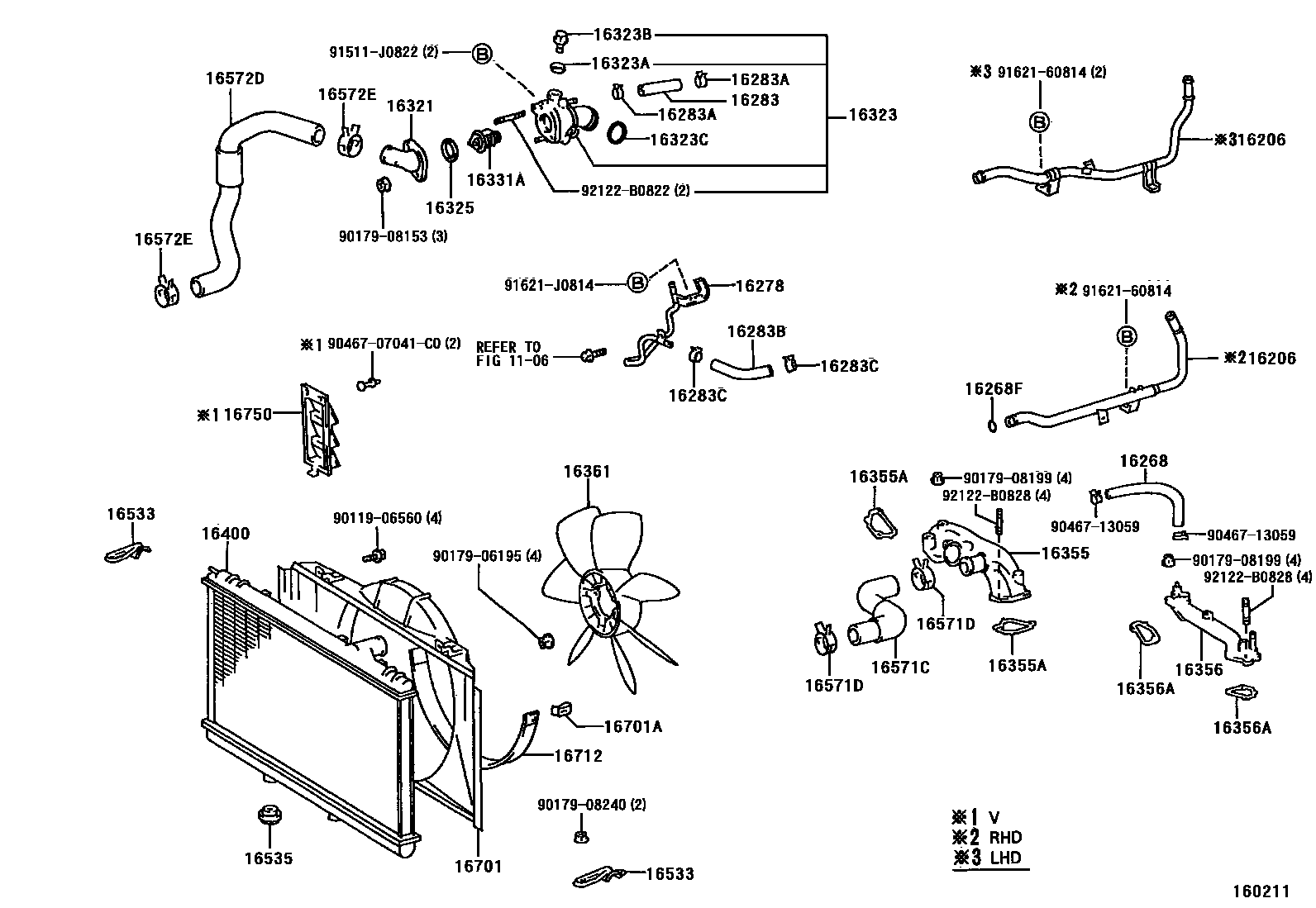

RADIATOR & WATER OUTLET
1106
16206PIPE SUB-ASSY, WATER BY-PASS
16268FRING, O(FOR WATER BY-PASS PIPE)
16278PIPE, WATER BY-PASS, NO.2
16283HOSE, WATER BY-PASS, NO.6
L=85
16283ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)
16283BHOSE, WATER BY-PASS
16283CCLAMP OR CLIP(FOR WATER BY-PASS HOSE)
sub96135-51100
16323AGASKET(FOR WATER INLET HOUSING)
16323BPLUG(FOR WATER INLET HOUSING)
16323CRING, O(FOR WATER INLET HOUSING)
16325GASKET, WATER INLET HOUSING, NO.1
16331ATHERMOSTAT
*WAX 82-95
16355JOINT, WATER BY-PASS, FRONT
16355AGASKET(FOR WATER BY-PASS JOINT FRONT)
16356JOINT, WATER BY-PASS, REAR
SOUTH AFRICA SPEC
16356AGASKET(WATER BY-PASS JOINT, REAR)
SOUTH AFRICA SPEC
16361FAN
16400RADIATOR ASSY
SINGAPORE OR THAILAND SPEC OR W(TOWING PACKAGE)
16533SUPPORT, RADIATOR, UPPER
RH
LH
16535SUPPORT, RADIATOR, LOWER
16571CHOSE, RADIATOR, NO.1
16571DCLIP, RADIATOR HOSE, NO.1
NO.1
16572DHOSE, RADIATOR, NO.2
16572ECLIP, RADIATOR HOSE, NO.2
sub90467-41002
16701SHROUD SUB-ASSY, FAN
16701ACLIP(FOR FAN SHROUD)
16712SHROUD, FAN, NO.2
16750DUCT ASSY, FAN SHROUD VENTILATION
9011906560
main90119-06560
9017906195
main90179-06195
9017908153
main90179-08153
9017908199
main90179-08199
9017908240
main90179-08240
9046707041C0
main90467-07041C0
9046713059
main90467-13059
91511J0822
main91511-J0822
9162160814
main91621-60814
91621J0814
main91621-J0814
92122B0822
main92122-B0822
92122B0828
main92122-B0828
44 parts on this diagram · 4 diagrams in section
