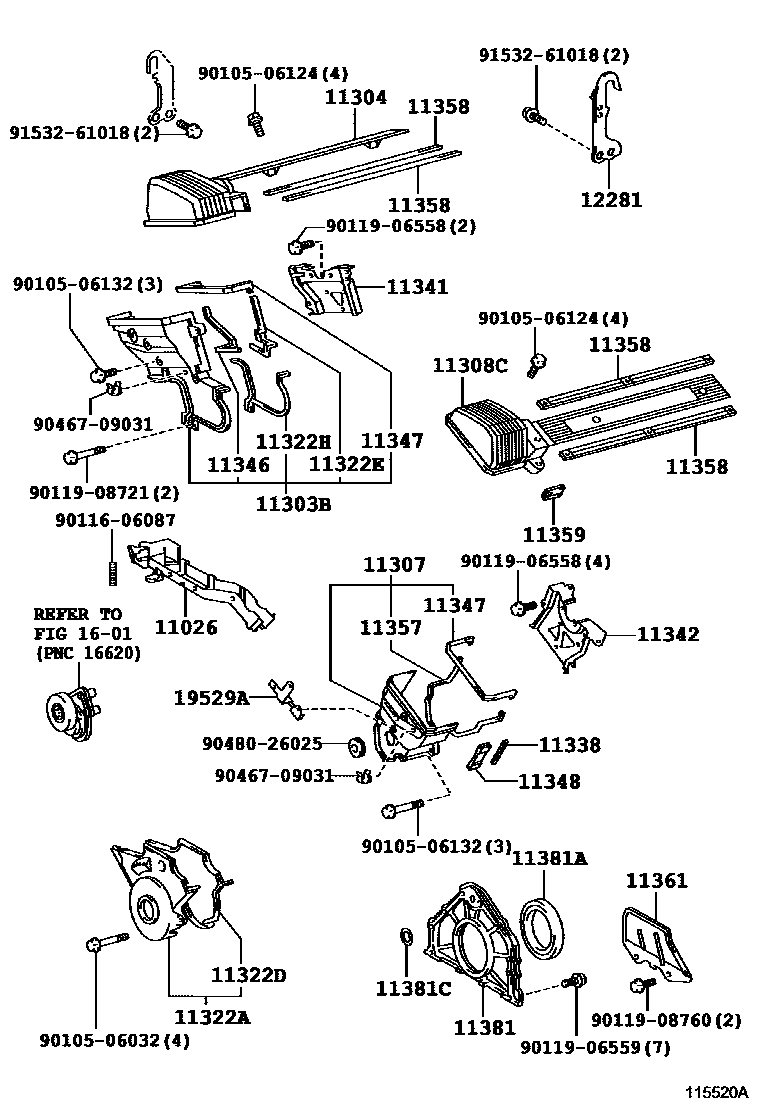

TIMING GEAR COVER & REAR END PLATE
11026COVER SUB-ASSY, COIL & RESISTIVE CORD, LOWER
11303BCOVER SUB-ASSY, TIMING BELT, NO.2
11304COVER, TIMING CHAIN OR BELT, NO.2
11307COVER, SUB-ASSY, TIMING BELT, NO.3
11308CCOVER SUB-ASSY, TIMING BELT, NO.3 LH
11322ACOVER, TIMING BELT, NO.1
11322DGASKET, TIMING BELT COVER, NO.1
11322EGASKET, TIMING BELT COVER, NO.2
11322HGASKET, TIMING BELT COVER, NO.3
11338GASKET, TIMING CHAIN COVER, NO.2
11341PLATE, TIMING BELT, REAR RH
11346GASKET, TIMING BELT COVER, NO.4
11347GASKET, TIMING BELT COVER, NO.5
11348SPACER, TIMING GEAR COVER
11357GASKET, TIMING BELT COVER, NO.6
11358GASKET,TIMING BELT COVER, NO.7
11359GASKET, TIMING BELT COVER, NO.8
11361COVER, FLYWHEEL HOUSING UNDER
11381RETAINER, ENGINE REAR OIL SEAL
11381CRING, O(FOR OIL SEAL RETAINER)
12281HANGER, ENGINE, NO.1
1601
19529ACLAMP
9010506032
main90105-06032
9010506124
main90105-06124
9010506132
main90105-06132
9011606087
main90116-06087
9011906558
main90119-06558
9011906559
main90119-06559
9011908721
main90119-08721
9011908760
main90119-08760
9046709031
main90467-09031
9048026025
main90480-26025
9153261018
main91532-61018
36 parts on this diagram · 2 diagrams in section
