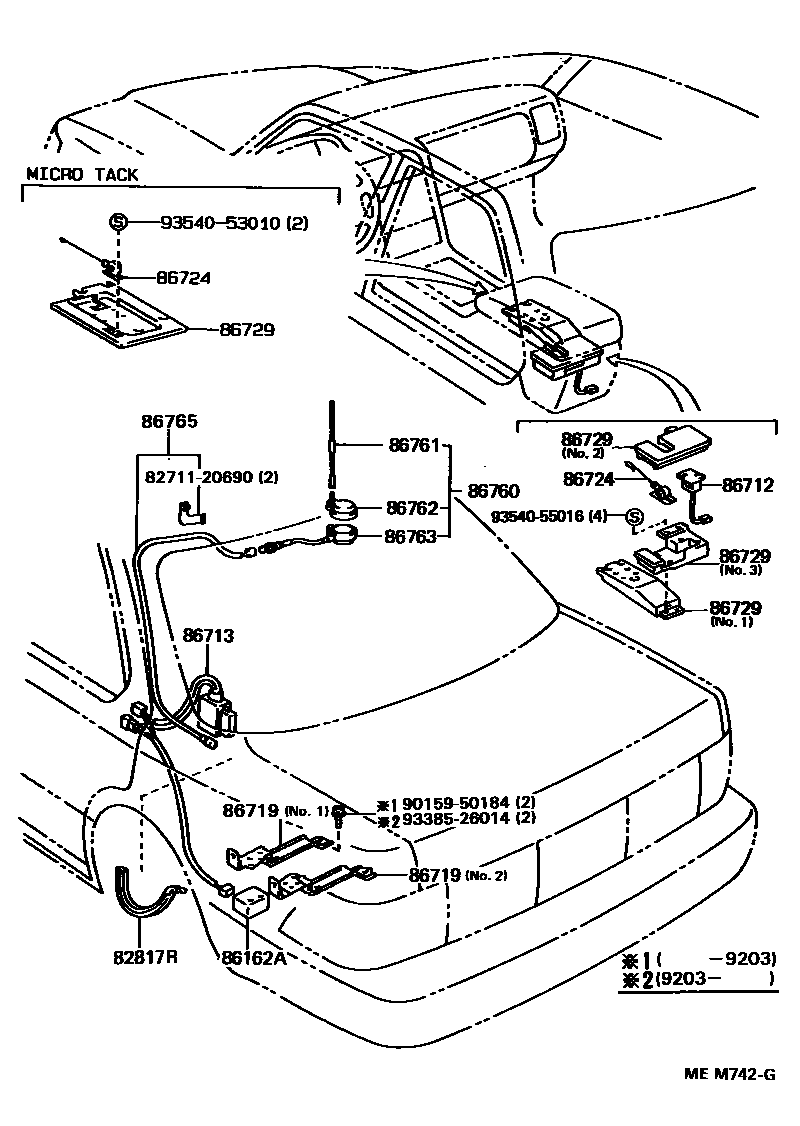

TELEPHONE & MAYDAY
82817RPROTECTOR, WIRING HARNESS, NO.16
86162ARELAY, SPEAKER
86712WIRE, TELEPHONE
86713WIRE, TELEPHONE COMPUTER
86719BRACKET, TELEPHONE
NO.1
NO.2
86724GUIDE, CURL CORD
sub86724-33010
86729BRACKET, MOBILEPHONE
NO.1
NO.2
NO.3
MICRO TACK
86760ANTENNA ASSY, TELEPHONE
86761ROD, TELEPHONE ANTENNA
86762BASE, TELEPHONE ANTENNA
86763BASE, TELEPHONE ANTENNA, N0.2
8271120690WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-20690
9015950184
main90159-50184
9338526014
main93385-26014
9354053010
main93540-53010
9354055016
main93540-55016
17 parts on this diagram · 1 diagram in section
