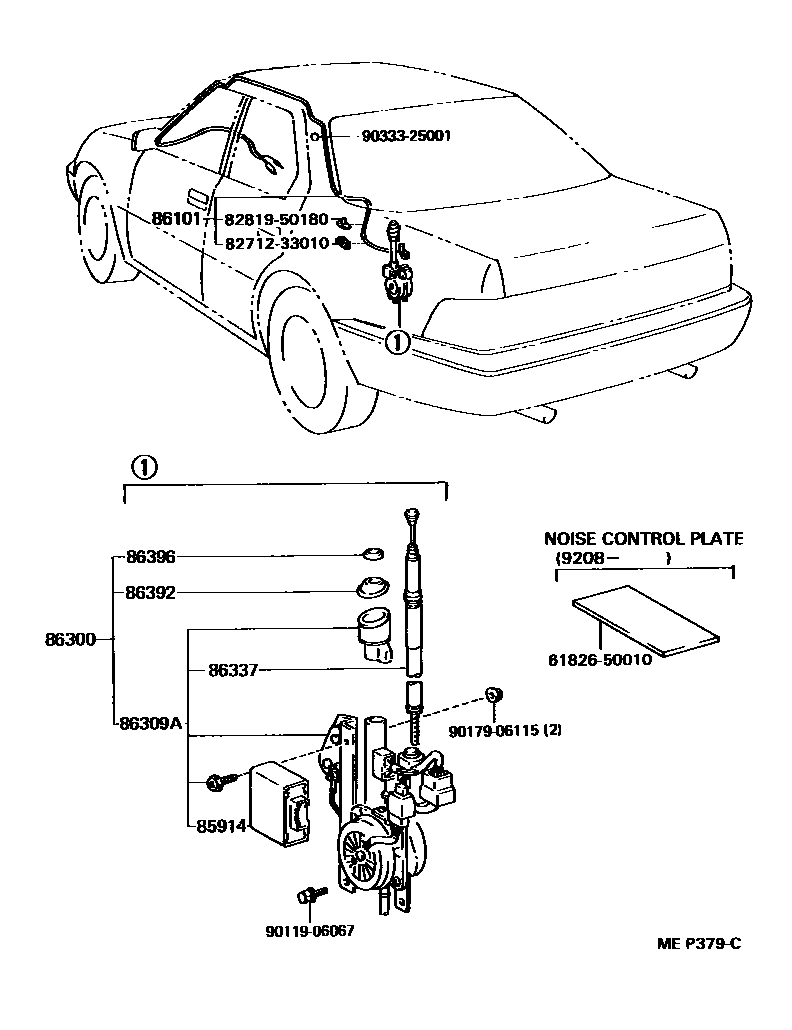

ANTENNA

85914RELAY, MOTOR ANTENNA CONTROL

main85914-50010iUCF10198912-199410

86101CORD SUB-ASSY, ANTENNA

main86101-50030iUCF10..LHD..EUR198912-199208

main86101-50040iUCF10..RHD..(EUR,GEN)198912-199108

sub86101-50041

main86101-50041iUCF10..RHD..(EUR,GEN)199108-199208

main86101-50050iUCF10..V198912-199208

main86101-50060iUCF10..ARL198912-199208

main86101-50070iUCF10..LHD..EUR198912-199208

W/O WIRELESS DOOR LOCK

main86101-50100iUCF10..V199210-199410

W(RADIO---AM/FM MPX ETR CST)

main86101-50120iUCF10..V199304-199410

CHINA SPEC

main86101-50130iUCF10..LHD..EUR199208-199410

main86101-50140iUCF10..RHD..(EUR,GEN)199208-199410

main86101-50150iUCF10..V199208-199410

main86101-50160iUCF10..ARL199208-199410

86300ANTENNA ASSY, W/HOLDER

main86300-50020iUCF10198912-199203

sub86300-50021

main86300-50021iUCF10199203-199208

main86300-50081iUCF10..V199210-199410

W(RADIO---AM/FM MPX ETR CST)

main86300-50091iUCF10199208-199410

86309APOLE SUB-ASSY, MOTOR ANTENNA

main86309-50020iUCF10198912-199203

sub86309-50021

main86309-50021iUCF10199203-199208

main86309-50030iUCF10..V199210-199410

W(RADIO---AM/FM MPX ETR CST)

main86309-50040iUCF10199208-199410

86337ROD & PIPE, SEALED W/CABLE

main86337-24180iUCF10199203-199210

sub86337-24181

main86337-50010iUCF10198912-199203

main86337-50080iUCF10199210-199410

sub86337-24181

86392ORNAMENT, ANTENNA

main86392-50010iUCF10198912-199410

86396NUT, ANTENNA

main86396-50010iUCF10198912-199410

6182650010PLATE, QUARTER INNER PANEL, LOWER FRONT LH

main61826-50010

8271233010CLAMP, WIRING HARNESS

main82712-33010

8281950180GROMMET, WIRING HARNESS

main82819-50180

9011906067

main90119-06067

9017906115

main90179-06115

9033325001

main90333-25001

13 parts on this diagram · 1 diagram in section
