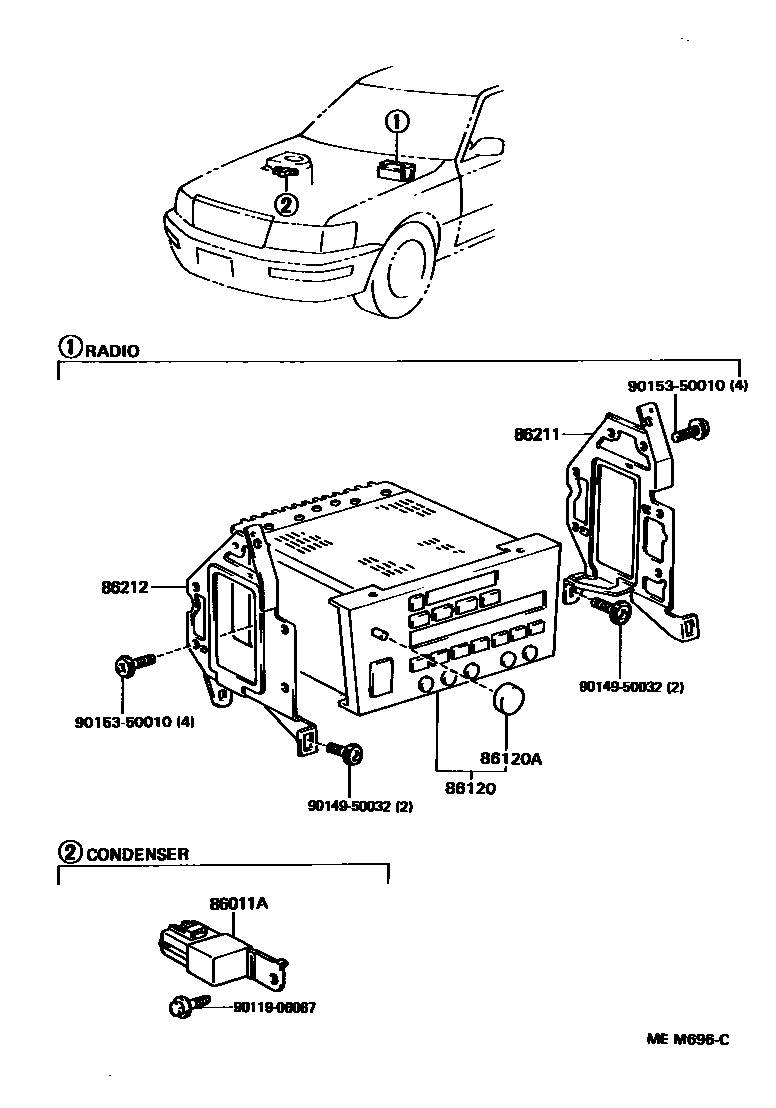

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1RADIO & CONDENSOR 0002 1CD AUTO CHANGER 0003 1CD AUTO CHANGER & SPEAKER AMP

86011ACONDENSER, RADIO SETTING

main90980-04077iUCF10198912-199410

E/G ROOM

86120RECEIVER ASSY, RADIO

main86120-50090iUCF10..LHD..EUR198912-199107

sub86120-50091

main86120-50091iUCF10..LHD..EUR199107-199208

main86120-50092iUCF10..LHD..EUR199208-199302

main86120-50100iUCF10..LHD..EUR198912-199012

PIONEER,W(DISC PLAYER)

sub86120-50101

main86120-50101iUCF10..LHD..EUR199012-199208

W(DISC PLAYER)

main86120-50102iUCF10..LHD..EUR199208-199302

W(DISC PLAYER)

main86120-50110iUCF10..RHD..EUR198912-199107

sub86120-50111

main86120-50111iUCF10..RHD..EUR199107-199208

main86120-50120iUCF10..RHD..EUR198912-199012

W(DISC PLAYER)

sub86120-50121

main86120-50121iUCF10..RHD..EUR199012-199208

W(DISC PLAYER)

main86120-50122iUCF10..RHD..EUR199208-199302

main86120-50130iUCF10..V198912-199208

main86120-50140iUCF10..V198912-199208

W(DISC PLAYER)

main86120-50141iUCF10..V199208-199410

main86120-50150iUCF10..ARL198912-199208

main86120-50151iUCF10..ARL199208-199410

main86120-50160iUCF10..GEN198912-199208

main86120-50161iUCF10..GEN199208-199410

PIONEER

main86120-50240iUCF10..V199210-199410

PIONEER

main86120-50300iUCF10..LHD..EUR199302-199410

main86120-50310iUCF10..LHD..EUR199302-199410

W(DISC PLAYER)

main86120-50320iUCF10..RHD..EUR199302-199410

86120AKNOB, RADIO RECEIVER SWITCH

main86127-50010iUCF10..V199210-199410

RADIO---PIONEER

main86127-50010iUCF10..V198912-199410

main86127-50030iUCF10..LHD..EUR198912-199410

main86127-50050iUCF10..RHD..EUR198912-199410

main86127-50070iUCF10..ARL,GEN198912-199410

86211BRACKET, RADIO, NO.1

main86211-50010iUCF10198912-199208

sub86211-50020

main86211-50020iUCF10199208-199410

86212BRACKET, RADIO, NO.2

main86212-50010iUCF10198912-199208

sub86212-50020

main86212-50020iUCF10199208-199410

9011906067

main90119-06067

9014950032

main90149-50032

9015350010

main90153-50010

8 parts on this diagram · 3 diagrams in section
