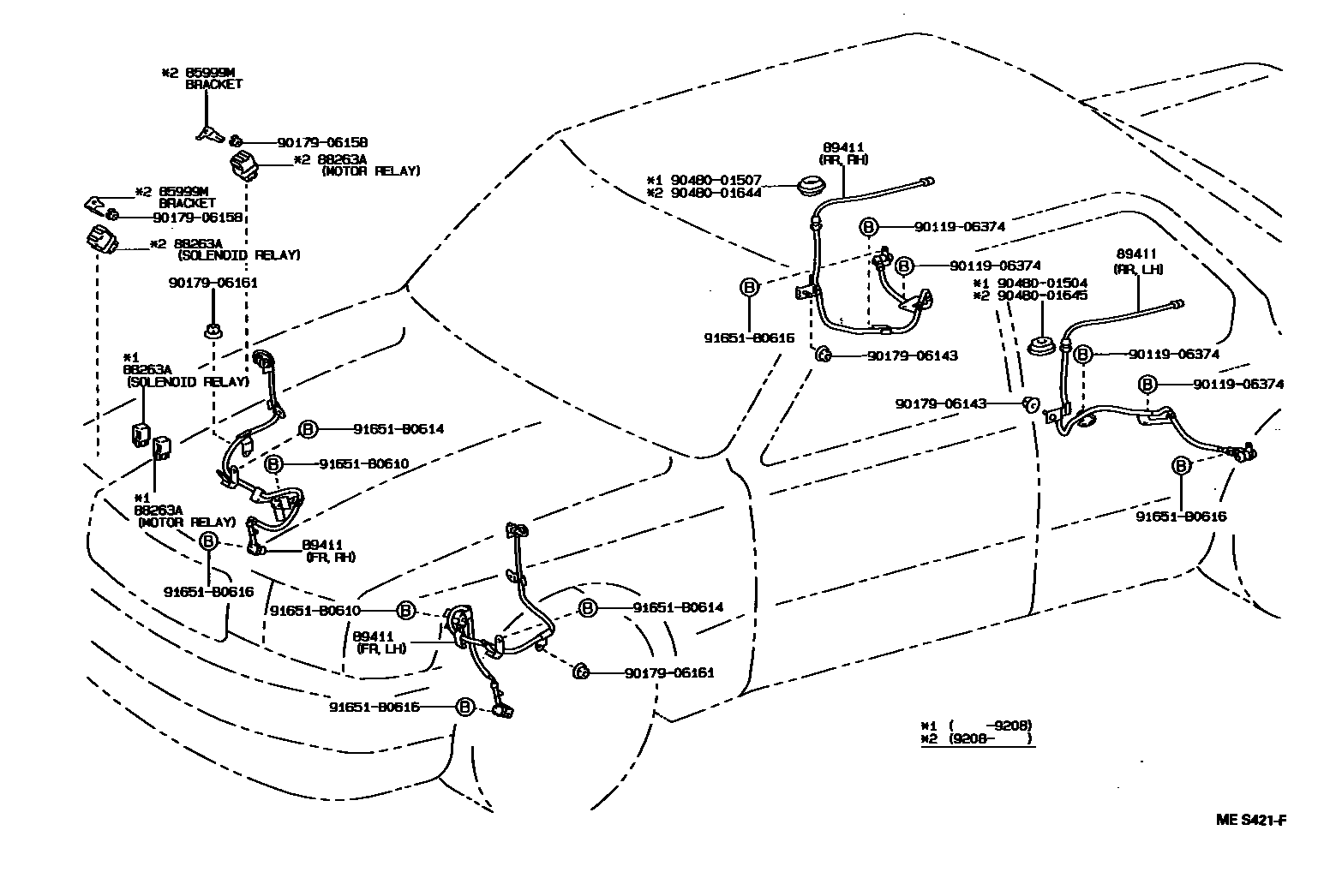

ABS & VSC

0001 1 0002 1

85999MBRACKET, RELAY

main85999-50100iUCF10199208-199410

MOTOR RELAY

main85999-50110iUCF10199208-199410

SOLENOID RELAY

88263ARELAY, SKID CONTROL

main88263-14110iUCF10198912-199208

MOTOR RELAY

main88263-14120iUCF10198912-199208

SOLENOID RELAY

main88263-35070iUCF10199208-199410

SOLENOID RELAY

main89633-50030iUCF10199208-199410

MOTOR RELAY

sub28610-64110

89411SENSOR, SPEED

main89542-50020iUCF10198912-199208

FRONT,RH

main89542-50030iUCF10199208-199410

FRONT,RH

main89543-50020iUCF10198912-199208

FRONT,LH

main89543-50030iUCF10199208-199410

FRONT,LH

main89545-50010iUCF10198912-199208

REAR,RH

main89545-50020iUCF10199208-199410

REAR,RH

main89546-50010iUCF10198912-199208

REAR,LH

main89546-50020iUCF10199208-199410

REAR,LH

9011906374

main90119-06374

9017906143

main90179-06143

9017906158

main90179-06158

9017906161

main90179-06161

9048001504

main90480-01504

9048001507

main90480-01507

9048001644

main90480-01644

9048001645

main90480-01645

91651B0610

main91651-B0610

91651B0614

main91651-B0614

91651B0616

main91651-B0616

14 parts on this diagram · 2 diagrams in section
