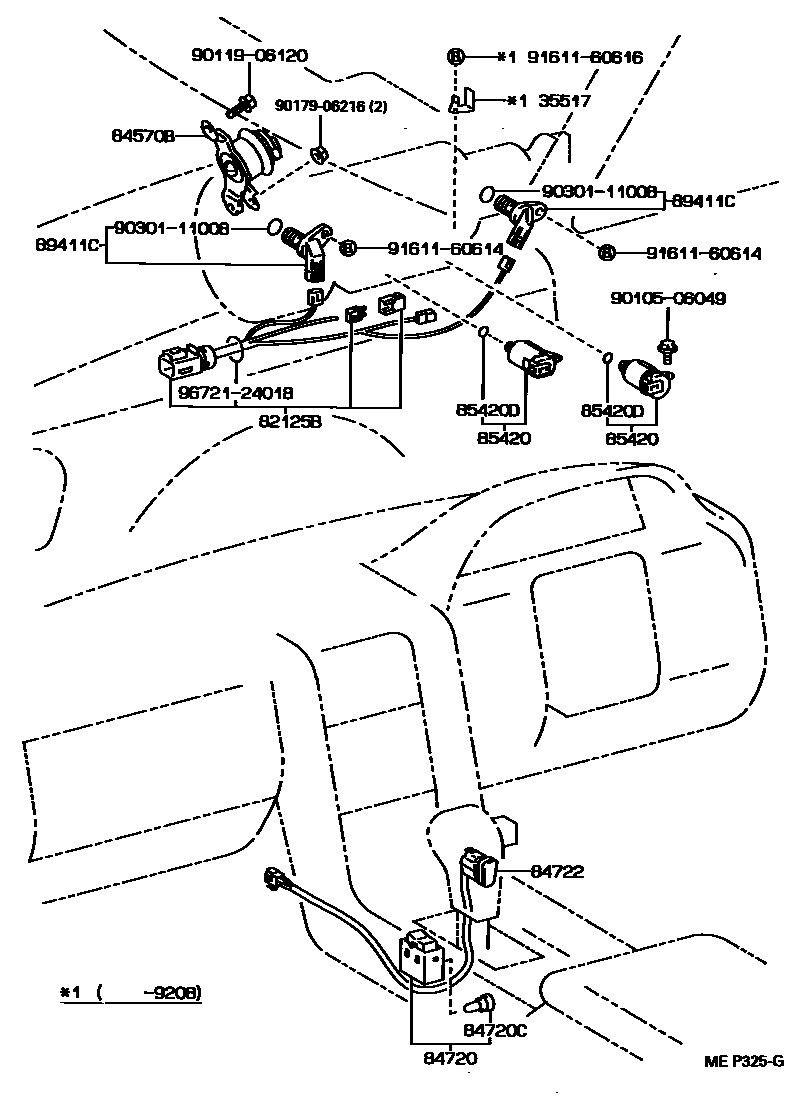

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

35517PLATE, TRANSMISSION WIRE LOCK

main35517-50010iUCF10198912-199208

82125BWIRE, TRANSMISSION

main82125-50010iUCF10198912-199208

main82125-50030iUCF10199208-199410

84570BSWITCH ASSY, KICK DOWN

main84570-50010iUCF10..LHD198912-199410

main84570-50020iUCF10..RHD198912-199410

84720SWITCH ASSY, PATTERN SELECT

main84720-30170iUCF10199203-199410

sub84720-50020

main84720-50010iUCF10198912-199203

sub84720-30170

84720CBULB(FOR PATTERN SELECT SWITCH)

main84999-10320iUCF10198912-199410

14V 0.84W

84722SWITCH, TRANSMISSION CONTROL

main84722-50010-02iUCF10..V198912-199108

DEEP RED,TRIM3#

sub84722-50010

main84722-50010-03iUCF10..LHD198912-199208

SHADOW GRAY,TRIM1#

sub84722-50010

main84722-50010-04iUCF10..LHD198912-199208

DARK BLUE,TRIM8#

sub84722-50010

main84722-50010-05iUCF10..LHD198912-199208

DARK GREIGE,TRIM0#

sub84722-50010

main84722-50010-06iUCF10..LHD198912-199208

DARK ROSE,TRIM4#

sub84722-50010

main84722-50020-02iUCF10..V198912-199108

W(LEATHER SEAT),DEEP RED,TRIM3#

sub84722-50020

main84722-50020-03iUCF10..LHD198912-199208

W(LEATHER SEAT),SHADOW GRAY,TRIM1#

sub84722-50020

main84722-50020-04iUCF10..LHD198912-199208

W(LEATHER SEAT),DARK BLUE,TRIM8#

sub84722-50020

main84722-50020-05iUCF10..LHD198912-199208

W(LEATHER SEAT),DARK GRAIGE,TRIM0#

sub84722-50020

main84722-50020-06iUCF10..LHD198912-199208

W(LEATHER SEAT),DARK ROSE,TRIM4#

sub84722-50020

main84722-50030-03iUCF10..RHD198912-199208

SHADOW GRAY,TRIM1#

sub84722-50030

main84722-50030-04iUCF10..RHD198912-199208

DARK BLUE,TRIM8#

sub84722-50030

main84722-50030-05iUCF10..RHD198912-199208

GREIGE,TRIM0#

sub84722-50030

main84722-50030-06iUCF10..RHD198912-199208

DARK ROSE,TRIM4#

sub84722-50030

main84722-50040-03iUCF10..RHD198912-199208

W(LEATHER SEAT),SHADOW GRAY,TRIM1#

sub84722-50040

main84722-50040-04iUCF10..RHD198912-199208

W(LEATHER SEAT),DARK BLUE,TRIM8#

sub84722-50040

main84722-50040-05iUCF10..RHD198912-199208

W(LEATHER SEAT),GREIGE,TRIM0#

sub84722-50040

main84722-50040-06iUCF10..RHD198912-199208

W(LEATHER SEAT),DARK ROSE,TRIM4#

sub84722-50040

main84722-50050-B0iUCF10199208-199410

SHADOW GRAY,TRIM1#

sub84722-50050

main84722-50050-C0iUCF10..EUR199208-199410

BLACK,TRIM2#

sub84722-50050

main84722-50050-E0iUCF10199208-199410

OAK,TRIM0#

sub84722-50050

main84722-50050-J0iUCF10199208-199410

DK.BLUE,TRIM8#

sub84722-50050

main84722-50050-K0iUCF10..ARL,GEN,V199208-199410

TAUPE,TRIM9#

sub84722-50050

85420SOLENOID ASSY, TRANSMISSION

main85420-50020iUCF10198912-199410

85420DRING, O (FOR TRANSMISSION SOLENOID)

main90301-06004iUCF10198912-199410

89411CSENSOR, SPEED

main89411-50010iUCF10198912-199410

9010506049

main90105-06049

9011906120

main90119-06120

9017906216

main90179-06216

9030111008

main90301-11008

9161160614

main91611-60614

9161160616

main91611-60616

9672124018

main96721-24018

16 parts on this diagram · 1 diagram in section
