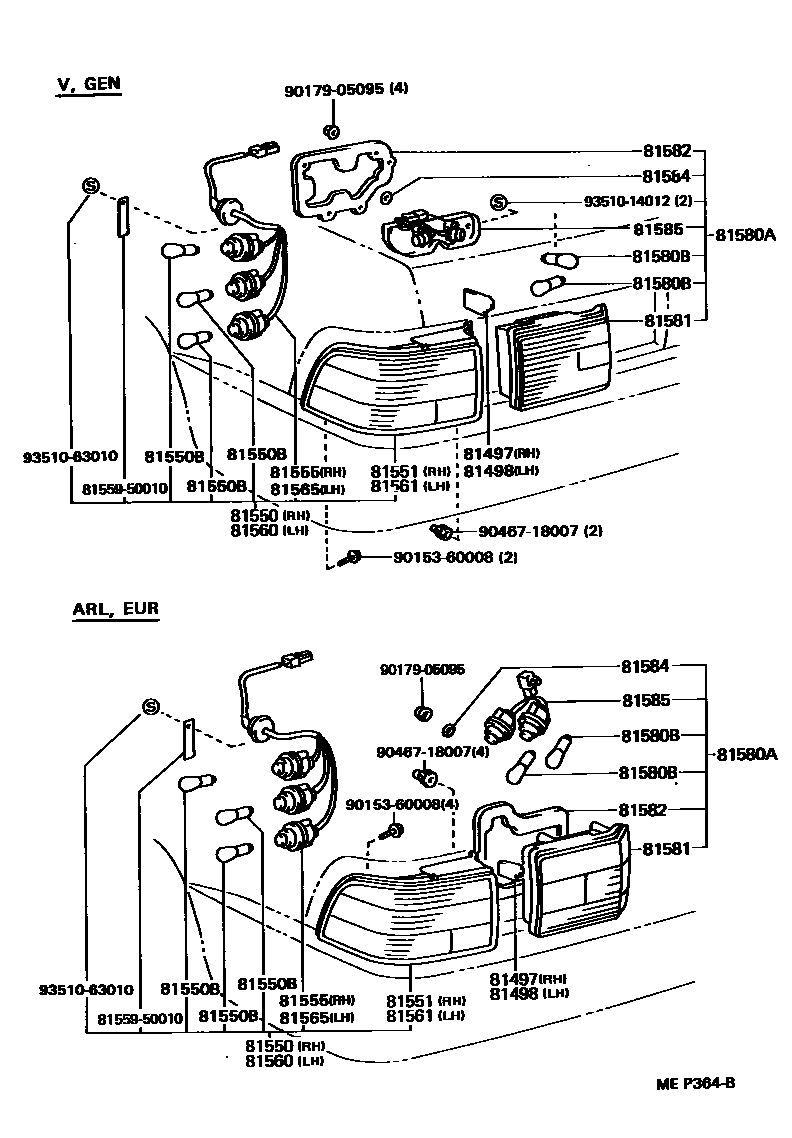

REAR COMBINATION LAMP

81497COVER, REAR COMBINATION LAMP, RH

main81497-50010iUCF10198912-199410

81498COVER, REAR COMBINATION LAMP, LH

main81498-50010iUCF10198912-199410

81550LAMP ASSY, REAR COMBINATION, RH

main81550-50020iUCF10..ARL,EUR198912-199207

sub81550-50021

main81550-50021iUCF10..ARL,EUR199207-199410

main81550-50030iUCF10..GEN,V198912-199410

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11210iUCF10..GEN,V198912-199410

12V 21W

main99132-21210iUCF10..GEN,V198912-199410

12V 21/5W

81551LENS, REAR COMBINATION LAMP, RH

main81551-50020iUCF10..ARL,EUR198912-199207

sub81551-50021

main81551-50021iUCF10..ARL,EUR199207-199410

main81551-50030iUCF10..GEN,V198912-199410

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-50020iUCF10..ARL,EUR198912-199410

main81555-50030iUCF10..GEN,V198912-199410

81560LAMP ASSY, REAR COMBINATION, LH

main81560-50020iUCF10..ARL,EUR198912-199207

sub81560-50021

main81560-50021iUCF10..ARL,EUR199207-199410

main81560-50030iUCF10..GEN,V198912-199410

81561LENS, REAR COMBINATION LAMP, LH

main81561-50020iUCF10..ARL,EUR198912-199207

sub81561-50021

main81561-50021iUCF10..ARL,EUR199207-199410

main81561-50030iUCF10..GEN,V198912-199410

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-50020iUCF10..ARL,EUR198912-199410

main81555-50030iUCF10..GEN,V198912-199410

81580ALAMP ASSY, REAR

main81580-50020iUCF10..ARL,EUR198912-199410

RH

sub81581-50020

main81580-50030iUCF10..GEN,V198912-199410

RH

sub81581-50010

main81590-50020iUCF10..ARL,EUR198912-199410

LH

main81590-50030iUCF10..GEN,V198912-199410

LH

81580BBULB (FOR REAR LAMP)

main99132-11210iUCF10..GEN,V198912-199410

12V 21W

main99132-21210iUCF10..GEN,V198912-199410

12V 21/5W

81581LENS, REAR LAMP

main81581-50010iUCF10..GEN,V198912-199410

RH

main81581-50020iUCF10..ARL,EUR198912-199410

RH

main81591-50010iUCF10..GEN,V198912-199410

LH

main81591-50020iUCF10..ARL,EUR198912-199410

LH

81582GASKET, REAR LAMP

main81582-50010iUCF10..GEN,V198912-199410

RH

main81582-50020iUCF10..ARL,EUR198912-199410

main81592-50010iUCF10..GEN,V198912-199410

LH

81584PACKING, REAR LAMP RH

main81554-32150iUCF10198912-199410

81585SOCKET & WIRE, REAR LAMP

main81585-50010iUCF10..GEN,V198912-199410

RH

main81585-50020iUCF10..ARL,EUR198912-199207

main81585-50020iUCF10..ARL,EUR199207-199410

RH

main81595-50010iUCF10..GEN,V198912-199410

LH

main81595-50020iUCF10..ARL,EUR199207-199410

LH

8155950010MOULDING, REAR COMBINATION LAMP, RH

main81559-50010

9015360008

main90153-60008

9017905095

main90179-05095

9046718007

main90467-18007

9351014012

main93510-14012

9351063010

main93510-63010

21 parts on this diagram · 1 diagram in section
