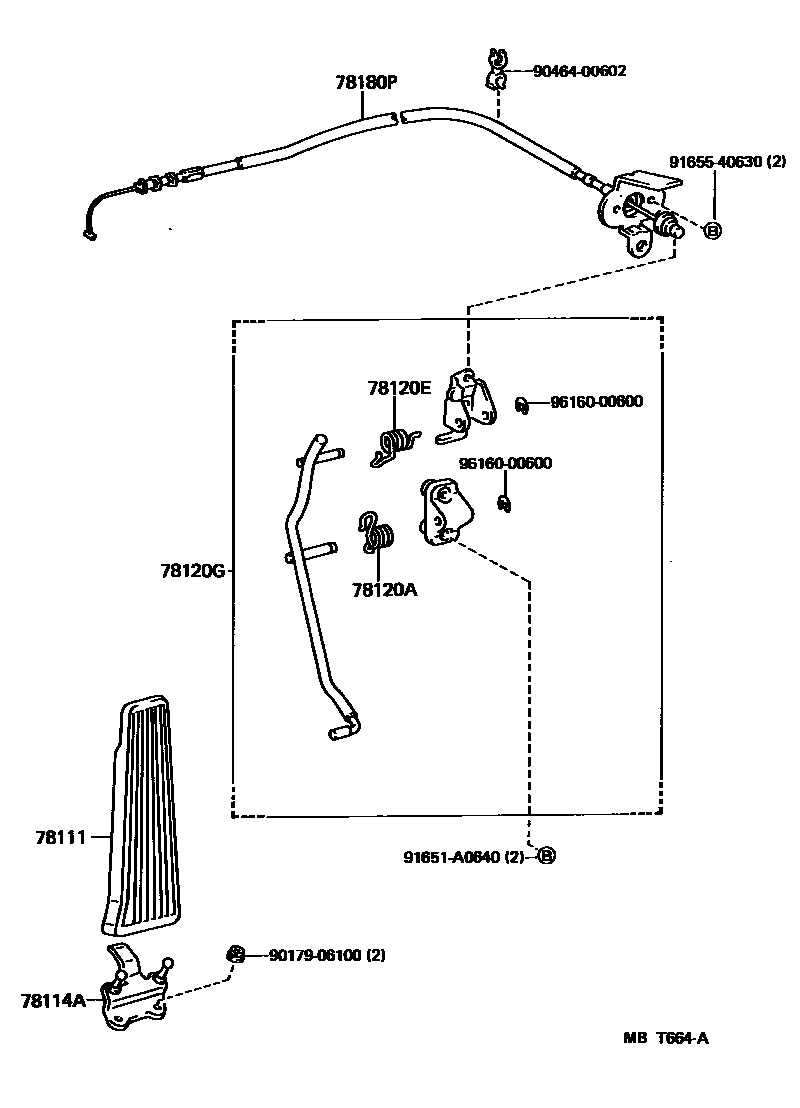

ACCELERATOR LINK

0001 1 0002 1

78111PEDAL, ACCELERATOR

main78111-50010iUCF10198912-199101

sub78111-50020

main78111-50020iUCF10199101-199104

sub78111-50030

main78111-50030iUCF10199104-199410

78114ABRACKET, ACCELERATOR PEDAL SUPPORT

main78114-50010iUCF10198912-199102

sub78114-50020

main78114-50020iUCF10199102-199209

sub78114-50021

main78114-50021iUCF10199209-199410

78120ASPRING, COMPRESSION (FOR ACCELERATOR LINK ROD)

main90508-18077iUCF10198912-199410

78120ESPRING, TENSION (FOR ACCELERATOR LINK ROD)

main90508-29022iUCF10198912-199410

78120GROD ASSY, ACCELERATOR PEDAL

main78120-50010iUCF10..LHD198912-199410

main78120-50030iUCF10..RHD198912-199410

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-50010iUCF10..LHD198912-199208

sub78180-50011

main78180-50011iUCF10..LHD199208-199302

main78180-50012iUCF10..LHD199302-199410

main78180-50020iUCF10..RHD198912-199111

sub78180-50021

main78180-50021iUCF10..RHD199111-199208

main78180-50022iUCF10..RHD199208-199410

9017906100

main90179-06100

9046400602

main90464-00602

91651A0640

main91651-A0640

9165540630

main91655-40630

9616000600

main96160-00600

11 parts on this diagram · 2 diagrams in section
