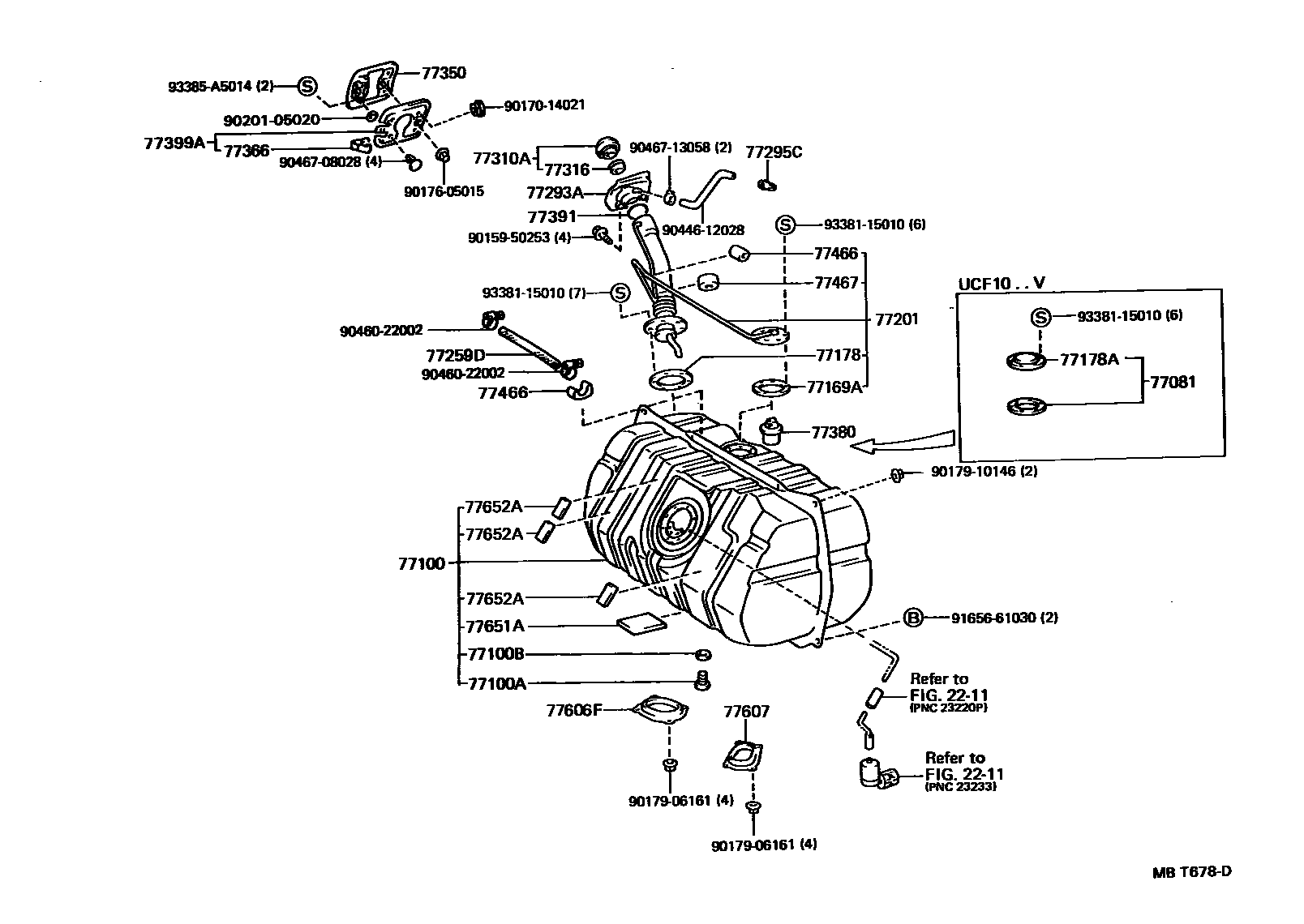

FUEL TANK & TUBE

0001 1 0002 1 0003 1

2211

77081RETAINER SUB-ASSY, FUEL CUT OFF VALVE

main77081-50010iUCF10..V¥1,440198912-199410

77100TANK ASSY, FUEL

main77001-50010iUCF10..ARL,EUR,GEN¥56,700198912-199208

sub77001-50020¥56,700

main77001-50010iUCF10..GEN¥56,700199208-199310

ISRAEL SPEC

sub77001-50020¥56,700

main77001-50010iUCF10..LHD..EUR¥56,700199308-199310

HONG KONG SPEC

sub77001-50020¥56,700

main77001-50020iUCF10..ARL,EUR,GEN¥56,700199104-199410

main77001-50040iUCF10..V¥56,700198912-199410

77100APLUG(FOR FUEL TANK)

main90105-12018iUCF10..ARL¥380199104-199307

77100BGASKET(FOR FUEL TANK)

main90430-12245iUCF10..ARL¥160199104-199307

77169AGASKET, FUEL SUCTION TUBE SET

main77169-50010iUCF10..ARL,EUR,GEN¥380198912-199410

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77169-14010iUCF10..ARL,EUR,GEN¥230198912-199208

TYPE A

main77169-14010iUCF10¥230199208-199410

77178AGASKET, FUEL TANK FILLER PIPE, LOWER

main77178-10010iUCF10..V¥640198912-199410

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-50010iUCF10..ARL,EUR¥15,700198912-199410

main77201-50010iUCF10..GEN¥15,700199108-199410

HONG KONG SPEC

main77201-50020iUCF10..GEN¥14,400198912-199410

main77201-50020iUCF10..RHD..EUR¥14,400199208-199410

SOUTH AFRICA SPEC

main77201-50030iUCF10..V¥10,900198912-199410

77259DHOSE, FUEL, NO.1

main77259-12090iUCF10..V¥990198912-199410

77293ASHIELD, FUEL TANK FILLER PIPE, NO.3

main77293-50010iUCF10¥7,400198912-199112

sub77293-50011¥7,400

main77293-50011iUCF10¥7,400199112-199410

77295CGROMMET, FUEL TUBE

main77295-50010iUCF10¥370198912-199410

77310ACAP ASSY, FUEL TANK

main77310-16011iUCF10¥2,790198912-199410

sub77310-12140¥2,790

77316GASKET, FUEL TANK CAP

main77316-16010iUCF10¥660198912-199410

77350LID ASSY, FUEL FILLER OPENING

main77350-50010iUCF10¥4,330198912-199410

77366SPRING, FUEL FILLER OPENING LID HINGE

main77366-50010iUCF10¥240198912-199205

sub77366-50011¥250

main77366-50011iUCF10¥250199205-199410

77380VALVE ASSY, FUEL CUT OFF

main77380-50010iUCF10..ARL,EUR,GEN¥2,120198912-199410

main77380-50020iUCF10..V¥2,050198912-199410

77391RING, FUEL INLET BOX

main77391-24010iUCF10¥270199208-199410

77399ACOVER, FUEL FILLER OPENING LID

main77399-50010iUCF10¥2,490198912-199205

sub77399-50011¥2,490

main77399-50011iUCF10¥2,490199205-199410

77466PROTECTOR, FUEL TUBE, NO.4

main77466-50010iUCF10..ARL,EUR,GEN¥390198912-199410

main77466-50030iUCF10..V¥440198912-199410

77467PROTECTOR, FUEL TUBE, NO.5

main77467-50010iUCF10..ARL,EUR,GEN¥250198912-199410

77606FCASE SUB-ASSY, FUEL TANK COVER VENT

main77606-50010iUCF10¥1,970198912-199410

77607CASE SUB-ASSY, FUEL TANK COVER VENT, LH

main77607-50010iUCF10¥1,900198912-199410

77651ACUSHION, FUEL TANK, NO.1

main77651-50010iUCF10¥310198912-199410

77652ACUSHION, FUEL TANK, NO.2

main77652-50010iUCF10¥190198912-199410

9015950253

main90159-50253¥120

9017014021

main90170-14021¥200

9017605015

main90176-05015¥120

9017906161

main90179-06161¥70

9017910146

main90179-10146¥300

9020105020

main90201-05020¥70

9044612028

main90446-12028¥670

9046022002

main90460-22002¥530

9046708028

main90467-08028¥160

9046713058

main90467-13058¥170

9165661030

main91656-61030¥180

9338115010

main93381-15010¥60

93385A5014

main93385-A5014¥70

38 parts on this diagram · 3 diagrams in section
