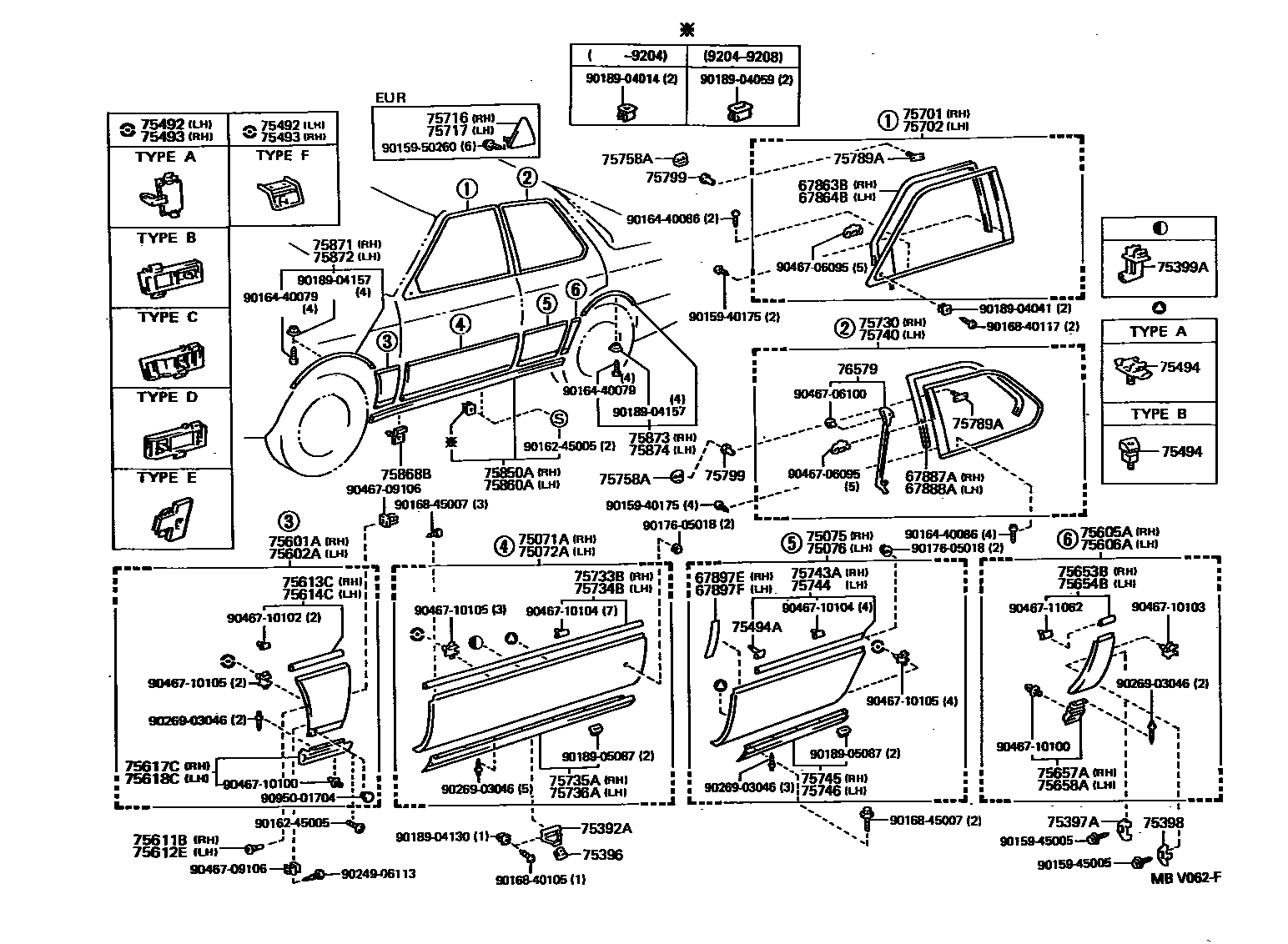

SIDE MOULDING
67863BWEATHERSTRIP, FRONT DOOR, NO.2 RH
67864BWEATHERSTRIP, FRONT DOOR, NO.2 LH
67887AWEATHERSTRIP, REAR DOOR, NO.2 RH
67888AWEATHERSTRIP, REAR DOOR, NO.2 LH
67897ECUSHION, REAR DOOR, RH
67897FCUSHION, REAR DOOR, LH
75071AMOULDING SUB-ASSY, FRONT DOOR, OUTSIDE RH
DEEP RED MICA,3H8
LIGHT GRAY M,176
CAMEL BEIGE M,4K9
DARK ROSE M,3H9 ,4K8
DARK ROSE M,3H9
DARK GRAY M,180 ,202
DARK BLUISH GRAY M,172 ,6K4
DARK BLUISH GRAY M,172
SILVER M,051
SILVER M,050
SILVER M,051
LIGHT GRAY,199
LIGHT GRAY,176
MEDIUM GRAY,180 ,202 ,6K4
CAMEL BEIGE,4K9
MEDIUM BROWN,4K7
DARK STEEL BLUE M,8J5
75072AMOULDING SUB-ASSY, FRONT DOOR, OUTSIDE LH
DEEP RED MICA,3H8
LIGHT GRAY M,176
CAMEL BEIGE M,4K9
DARK ROSE M,3H9
DARK ROSE M,3H9 ,4K8
DARK GRAY M,180 ,202
DARK BLUISH GRAY M,172
DARK BLUISH GRAY M,172 ,6K4
SILVER M,051
SILVER M,050
SILVER M,051
LIGHT GRAY,176
LIGHT GRAY,199
MEDIUM GRAY,180 ,202 ,6K4
CAMEL BEIGE,4K9
MEDIUM BROWN,4K7
DARK STEEL BLUE M,8J5
75075MOULDING SUB-ASSY, REAR DOOR, OUTSIDE RH
DEEP RED MICA,3H8
LIGHT GRAY M,176
CAMEL BEIGE M,4K9
DARK ROSE M,3H9
DARK ROSE M,3H9 ,4K8
DARK GRAY M,180 ,202
DARK BLUISH GRAY M,172 ,6K4
DARK BLUISH GRAY M,172
SILVER M,050
SILVER M,051
SILVER M,051
LIGHT GRAY,199
LIGHT GRAY,176
MEDIUM GRAY,180 ,202 ,6K4
CAMEL BEIGE,4K9
MEDIUM BROWN,4K7
DARK STEEL BLUE M,8J5
75076MOULDING SUB-ASSY, REAR DOOR, OUTSIDE LH
W(MUD GUARDS),DARK BLUISH GRAY M
DEEP RED MICA,3H8
LIGHT GRAY M,176
CAMEL BEIGE M,4K9
DARK ROSE M,3H9
DARK ROSE M,3H9 ,4K8
DARK GRAY M,180 ,202
DARK BLUISH GRAY M,172 ,6K4
DARK BLUISH GRAY M,172
SILVER M,050
SILVER M,051
SILVER M,051
LIGHT GRAY,199
LIGHT GRAY,176
MEDIUM GRAY,180 ,202 ,6K4
CAMEL BEIGE,4K9
MEDIUM BROWN,4K7
DARK STEEL BLUE M,8J5
75392ARETAINER, OUTSIDE MOULDING, NO.1
75396CLIP, OUTSIDE MOULDING, NO.2
75397ACLIP, OUTSIDE MOULDING, NO.3
REAR
FRONT
75398CLIP, OUTSIDE MOULDING, NO.5
75399AHOLDER, OUTSIDE MOULDING SEAL
RH
LH
75492RETAINER, OUTSIDE MOULDING, NO.5
TYPE A,FOR FR FENDER
TYPE B,FOR FR DOOR
TYPE C,FOR FR DOOR
TYPE D,FOR RR DOOR
TYPE E,FOR RR DOOR
FRONT-LH,FOR FR DOOR
REAR-LH,FOR FR DOOR
W(*MG),REAR-LH,FOR FR DOOR
LH,FOR RR DOOR
LH,FOR QUARTER PANEL
75493RETAINER, OUTSIDE MOULDING, NO.4
TYPE A,FOR FR FENDER
TYPE B,FOR FR DOOR
TYPE C,FOR FR DOOR
TYPE D,FOR RR DOOR
TYPE E,FOR RR DOOR
RH,FOR QOARTER PANEL
FRONT-RH,FOR FR DOOR
REAR-RH,FOR FR DOOR
FOR RR DOOR, RH
75494CLIP, OUTSIDE MOULDING, NO.3
TYPE A
TYPE B
75494ACLIP, OUTSIDE MOULDING, NO.3
TYPE A
TYPE B
75601AMOULDING SUB-ASSY, FRONT FENDER, RH
DEEP RED MICA,3H8
LIGHT GRAY M,176
CAMEL BEIGE M,4K9
DARK ROSE M,3H9 ,4K8
DARK ROSE M,3H9
DARK GRAY M,180 ,202
DARK BLUISH GRAY M,172
DARK BLUISH GRAY M,172 ,6K4
SILVER M,050
SILVER M,051
SILVER M,051
LIGHT GRAY,199
LIGHT GRAY,176
MEDIUM GRAY,180 ,202 ,6K4
CAMEL BEIGE,4K9
MEDIUM BROWN,4K7
DARK STEEL BLUE M,8J5
75602AMOULDING SUB-ASSY, FRONT FENDER, LH
DEEP RED MICA,3H8
LIGHT GRAY M,176
CAMEL BEIGE M,4K9
DARK ROSE M,3H9 ,4K8
DARK ROSE M,3H9
DARK GRAY M,180 ,202
DARK BLUISH GRAY M,172 ,6K4
DARK BLUISH GRAY M,172
SILVER M,050
SILVER M,051
SILVER M,051
LIGHT GRAY,176
LIGHT GRAY,199
MEDIUM GRAY,180 ,202 ,6K4
CAMEL BEIGE,4K9
MEDIUM BROWN,4K7
DARK STEEL BLUE M,8J5
75605AMOULDING SUB-ASSY, QUARTER OUTSIDE, RH
DEEP RED MICA,3H8
LIGHT GRAY M,176
CAMEL BEIGE M,4K9
DARK ROSE M,3H9
DARK ROSE M,3H9 ,4K8
DARK GRAY M,180 ,202
DARK BLUISH GRAY M,172
DARK BLUISH GRAY M,172 ,6K4
SILVER M,050
SILVER M,051
SILVER M,051
LIGHT GRAY,199
LIGHT GRAY,176
MEDIUM GRAY,180 ,202 ,6K4
CAMEL BEIGE,4K9
MEDIUM BROWN,4K7
DARK STEEL BLUE M,8J5
75606AMOULDING SUB-ASSY, QUARTER OUTSIDE, LH
DEEP RED MICA,3H8
LIGHT GRAY M,176
CAMEL BEIGE M,4K9
DARK ROSE M,3H9
DARK ROSE M,3H9 ,4K8
DARK GRAY M,180 ,202
DARK BLUISH GRAY M,172 ,6K4
DARK BLUISH GRAY M,172
SILVER M,050
SILVER M,051
SILVER M,051
LIGHT GRAY,199
LIGHT GRAY,176
MEDIUM GRAY,180 ,202 ,6K4
CAMEL BEIGE,4K9
MEDIUM BROWN,4K7
DARK STEEL BLUE M,8J5
75611BMOULDING, SIDE PANEL, NO.1 RH
W(MUD GUARD)
75613CMOULDING, FRONT FENDER, OUTSIDE NO.2 RH
75614CMOULDING, FRONT FENDER, OUTSIDE NO.2 LH
75617CMOULDING, FRONT FENDER, LOWER REAR RH
75618CMOULDING, FRONT FENDER, LOWER REAR LH
75653BMOULDING, QUARTER OUTSIDE, RH NO.3
75654BMOULDING, QUARTER, OUTSIDE NO.4
75657AMOULDING, QUARTER PANEL, LOWER REAR RH
75658AMOULDING, QUARTER PANEL, LOWER REAR LH
75701MOULDING SUB-ASSY, FRONT DOOR BELT, RH
75702MOULDING SUB-ASSY, FRONT DOOR BELT, LH
75716COVER, FRONT DOOR BELT MOULDING END, FRONT RH
75717COVER, FRONT DOOR BELT MOULDING END, FRONT LH
75730MOULDING ASSY, REAR DOOR BELT, RH
75733BMOULDING, FRONT DOOR, OUTSIDE UPPER REAR RH
75734BMOULDING, FRONT DOOR, OUTSIDE UPPER REAR LH
75735AMOULDING, FRONT DOOR OUTSIDE, LOWER RH
75736AMOULDING, FRONT DOOR OUTSIDE, LOWER LH
75740MOULDING ASSY, REAR DOOR BELT, LH
75743AMOULDING, REAR DOOR, OUTSIDE UPPER REAR RH
75744MOULDING, REAR DOOR, OUTSIDE UPPER REAR LH
75745MOULDING, REAR DOOR OUTSIDE, LOWER RH
75746MOULDING, REAR DOOR OUTSIDE, LOWER LH
75758ACOVER, FRONT DOOR WINDOW FRAME MOULDING JOINT, FRONT
BLACK,050 ,172 ,176 ,180 ,202 ,3H8 ,3H9 ,4K8 ,4K9
BLACK,172 ,176 ,180 ,202 ,3H8 ,3H9 ,4K8 ,4K9
BLACK,172 ,176 ,180 ,202 ,3H8 ,3H9 ,4K9 ,6K4
BLACK,051 ,172 ,176 ,180 ,202 ,3H8 ,3H9 ,4K8 ,4K9 ,6K4
BLACK,051 ,172 ,176 ,180 ,202 ,3H8 ,3H9 ,4K8 ,4K9
BLACK,051 ,172 ,176 ,180 ,202 ,3H8 ,3H9 ,4K9 ,6K4
BLACK,051 ,176 ,180 ,202 ,4K7 ,4K9 ,6K4 ,8J5
BLACK,051 ,180 ,199 ,202 ,4K7 ,4K9 ,6K4 ,8J5
BLACK,050 ,172 ,176 ,180 ,202 ,3H8 ,3H9 ,4K8 ,4K9 ,6K4
BLACK,050 ,172 ,176 ,180 ,202 ,3H8 ,3H9 ,4K9 ,6K4
75789ABOLT, DOOR BELT MOULDING
75799NUT, DOOR BELT MOULDING
75850AMOULDING ASSY, BODY ROCKER PANEL, RH
SILVER M,051,FR
LIGHT GRAY M,199,FR
LIGHT GRAY M,176,FR
DARK GRAY M,180 ,202 ,6K4,FR
CAMEL BEIGE M,4K9,FR
LT GRAYISH BROWN M,4K7,FR
DARK STEEL BLUE,8J5,FR
SILVER M,051,RR
LIGHT GRAY M,176,RR
LIGHT GRAY M,199,RR
DARK GRAY M,180 ,202 ,6K4,RR
CAMEL BEIGE M,4K9,RR
LT GRAYISH BROWN M,4K7,RR
DARK STEEL BLUE,8J5,RR
75860AMOULDING ASSY, BODY ROCKER PANEL, LH
SILVER M,051,FR
LIGHT GRAY M,176,FR
LIGHT GRAY M,199,FR
DARK GRAY M,180 ,202 ,6K4,FR
CAMEL BEIGE M,4K9,FR
LT GRAYISH BROWN M,4K7,FR
DARK STEEL BLUE,8J5,FR
SILVER M,051,RR
LIGHT GRAY M,199,RR
LIGHT GRAY M,176,RR
DARK GRAY M,180 ,202 ,6K4,RR
CAMEL BEIGE M,4K9,RR
LT GRAYISH BROWN M,4K7,RR
DARK STEEL BLUE,8J5,RR
75868BCLIP, ROCKER PANEL MOULDING, NO.2
TYPE A
TYPE B
TYPE C
TYPE D
75871MOULDING, FRONT FENDER WHEEL OPENING, RH
75872MOULDING, FRONT FENDER WHEEL OPENING, LH
75873MOULDING, QUARTER PANEL WHEEL OPENING, RH
75874MOULDING, QUARTER PANEL WHEEL OPENING, LH
76579SEAL, CENTER PILLAR MOULDING
RH
LH
9015940175
9015945005
9015950260
9016245005
9016440079
9016440086
9016840105
9016840117
9016845007
9017605018
9018904014
9018904041
9018904059
9018904130
9018904157
9018905087
9024906113
9026903046
9046706095
9046706100
9046709106
9046710100
9046710102
9046710103
9046710104
9046710105
9046711062
9095001704
86 parts on this diagram · 3 diagrams in section
