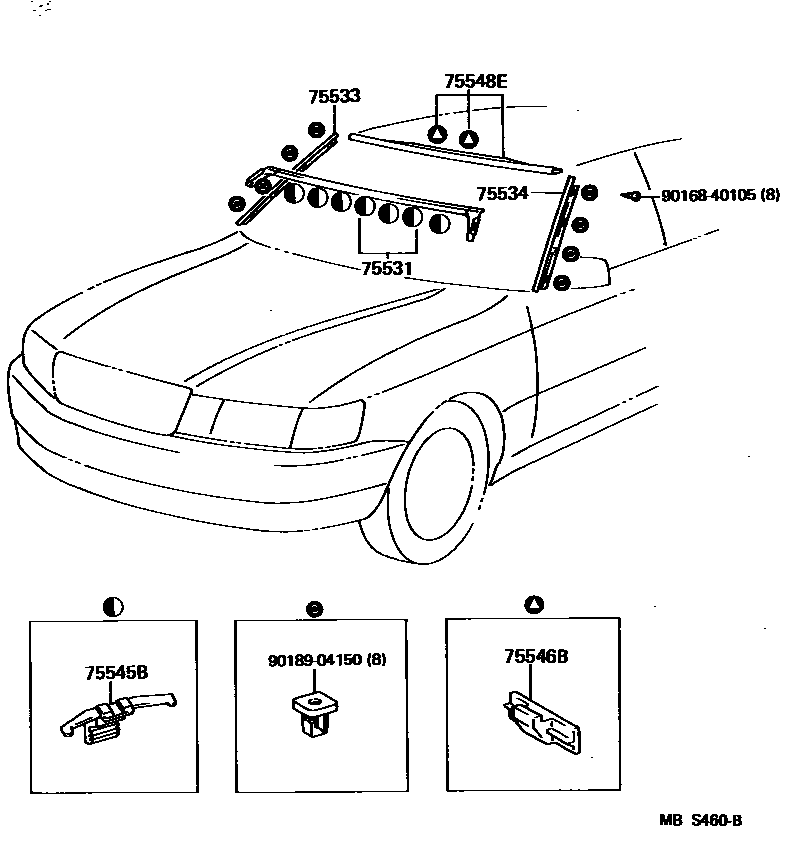

FRONT MOULDING

75531MOULDING, WINDSHIELD, OUTER UPPER

main75531-50010iUCF10¥5,800198912-199410

75533MOULDING, WINDSHIELD, OUTSIDE RH

main75533-50010iUCF10¥8,100198912-199410

75534MOULDING, WINDSHIELD, OUTSIDE LH

main75534-50010iUCF10¥8,100198912-199410

75545BCLIP, WINDSHIELD OUTSIDE MOULDING, NO.1

main75545-50020iUCF10¥210198912-199204

sub75545-50021¥210

main75545-50021iUCF10¥210199204-199410

75546BCLIP, WINDSHIELD OUTSIDE MOULDING, NO.2

main75546-50010iUCF10¥210198912-199410

75548EFASTENER, WINDSHIELD OUTSIDE MOULDING

main75548-50031iUCF10¥1,690198912-199004

sub75548-50032¥1,690

main75548-50032iUCF10¥1,690199004-199410

9016840105

main90168-40105¥120

9018904150

main90189-04150¥130

8 parts on this diagram · 1 diagram in section
