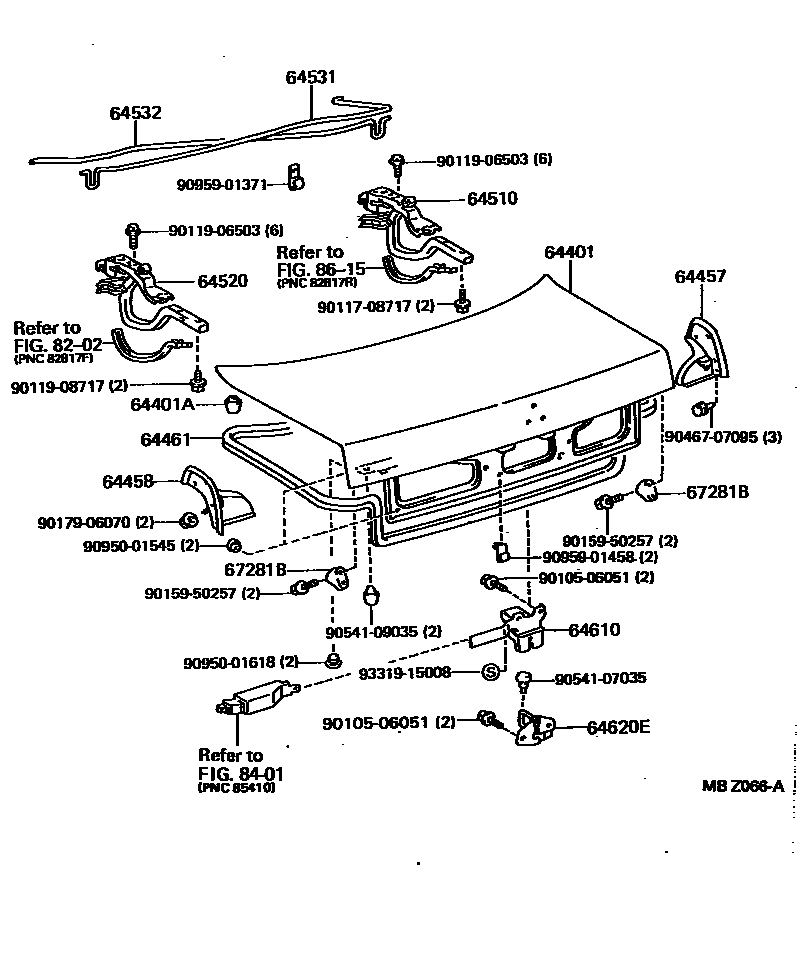

LUGGAGE COMPARTMENT DOOR & LOCK

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-50901iUCF10..ARL,EUR198912-199410

main64401-50903iUCF10..GEN,V198912-199410

64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90541-10007iUCF10198912-199410

sub90541-10038

64457COVER, LUGGAGE DOOR STOPPER CUSHION, RH

main64457-50010iUCF10198912-199410

64458COVER, LUGGAGE DOOR STOPPER CUSHION, LH

main64458-50010iUCF10198912-199410

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-50010iUCF10198912-199410

64510HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-50011iUCF10198912-199410

64520HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64520-50010iUCF10198912-199410

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-50020iUCF10..GEN,V198912-199301

sub64531-50021

main64531-50021iUCF10..GEN,V199301-199410

main64531-50050iUCF10..ARL,EUR198912-199301

sub64531-50051

main64531-50051iUCF10..ARL,EUR199301-199410

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-50020iUCF10..GEN,V198912-199301

sub64532-50021

main64532-50021iUCF10..GEN,V199301-199410

main64532-50050iUCF10..ARL,EUR198912-199301

sub64532-50051

main64532-50051iUCF10..ARL,EUR199301-199410

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64600-50030iUCF10..GEN,V199208-199410

main64600-50040iUCF10..ARL,EUR199208-199410

main64610-50010iUCF10..GEN,V198912-199208

main64610-50020iUCF10..ARL,EUR198912-199208

64620ESTRIKER ASSY, LUGGAGE COMPARTMENT DOOR

main64602-50010iUCF10198912-199410

sub64620-30100

67281BSTOPPER, BACK DOOR, LOWER

main67281-50010iUCF10198912-199410

RH

main67282-50010iUCF10198912-199410

LH

8202

8401

8615

9010506051

main90105-06051

9011708717

main90117-08717

9011906503

main90119-06503

9011908717

main90119-08717

9015950257

main90159-50257

9017906070

main90179-06070

9046707095

main90467-07095

9054107035

main90541-07035

9054109035

main90541-09035

9095001545

main90950-01545

9095001618

main90950-01618

9095901371

main90959-01371

9095901458

main90959-01458

9331915008

main93319-15008

29 parts on this diagram · 1 diagram in section
