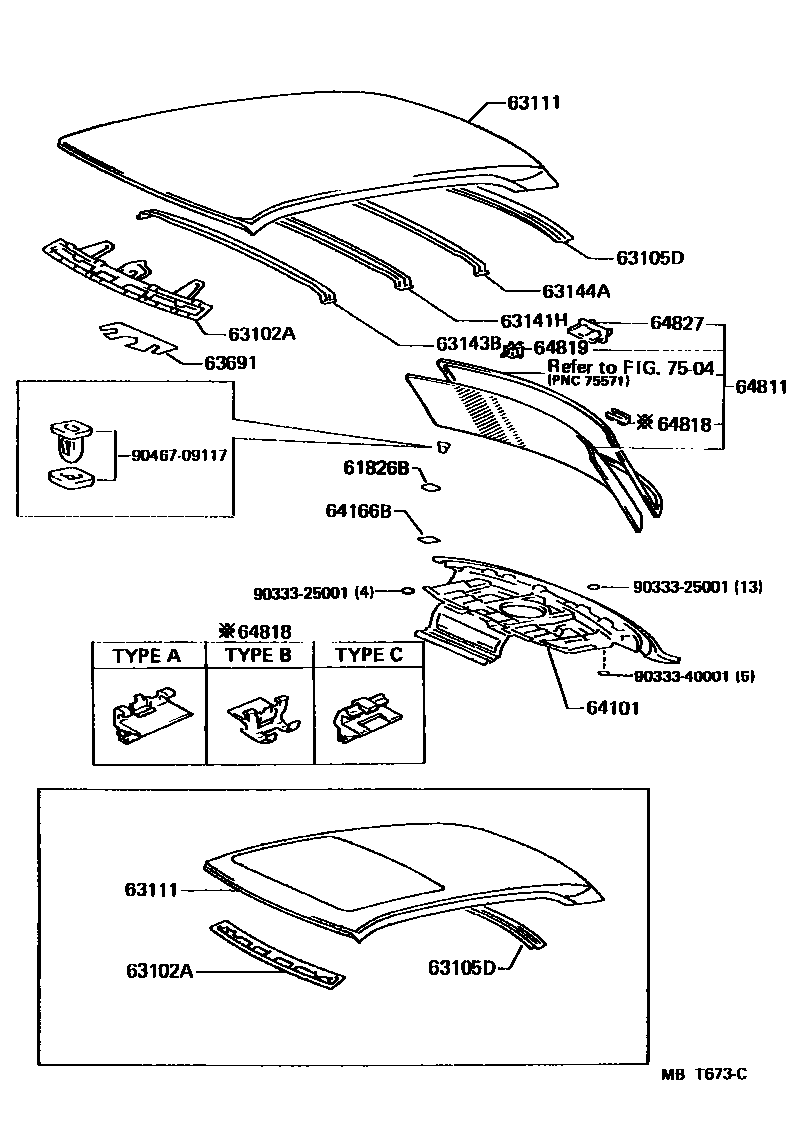

ROOF PANEL & BACK WINDOW GLASS
61826BPLATE, NOISE CONTROL, NO.3
63102APANEL SUB-ASSY, WINDSHIELD HEADER
W(MOON ROOF)
63105DFRAME SUB-ASSY, BACK WINDOW, UPPER
63111PANEL, ROOF
W(MOON ROOF)
63141HREINFORCEMENT, ROOF PANEL, CENTER
63143BREINFORCEMENT, ROOF PANEL, NO.3
63144AREINFORCEMENT, ROOF PANEL, NO.4
63691PAD, ROOF SILENCER, NO.21
64166BCOVER, UPPER BACK PANEL HOLE, NO.2
64811GLASS, BACK WINDOW
*EHTT,T=3.5,BRONZE
*EHTT,T=3.5,BLUE
64818SPACER, BACK WINDOW GLASS
TYPE A, BLUE
TYPE A,BLUE
TYPE B,BLUE
TYPE C,ORANGE
64819SPACER, BACK WINDOW GLASS, NO.2
64827CLIP, BACK WINDOW GLASS, RH
7504
9033325001
9033340001
9046709117
18 parts on this diagram · 2 diagrams in section
