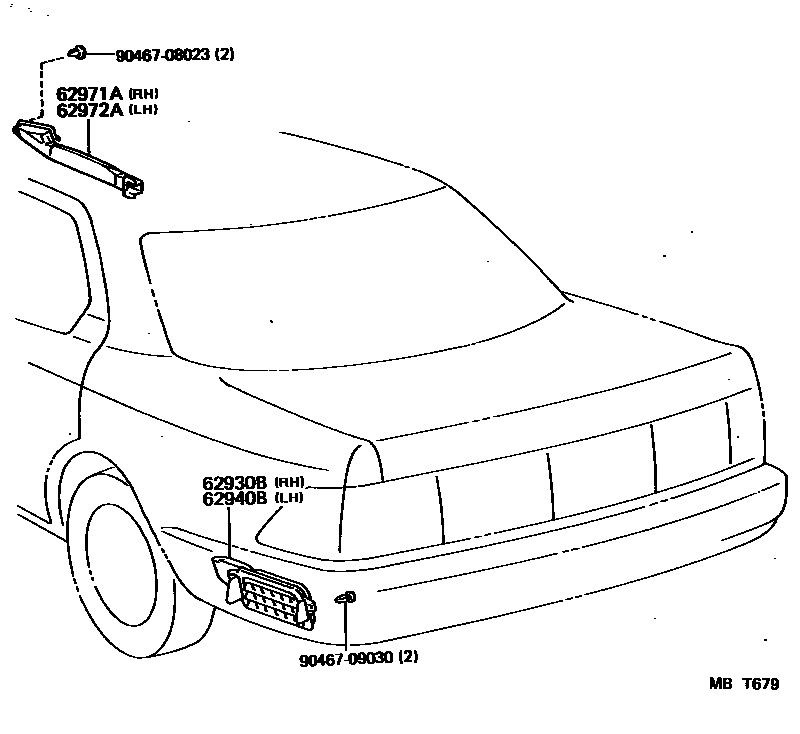

ROOF SIDE VENTILATOR

62930BDUCT ASSY, QUARTER VENT, RH

main62930-50010iUCF10..EUR,GEN198912-199007

sub62930-50020

main62930-50020iUCF10..ARL,V198912-199410

62940BDUCT ASSY, QUARTER VENT, LH

main62940-50010iUCF10..EUR,GEN198912-199007

sub62940-50020

main62940-50020iUCF10..ARL,V198912-199410

62971ADUCT, ROOF SIDE AIR, NO.1 RH

main62971-50010iUCF10..V198912-199012

main62971-50012iUCF10..V199012-199108

sub62971-50013

main62971-50013iUCF10..V199108-199410

62972ADUCT, ROOF SIDE AIR, NO.1 LH

main62972-50010iUCF10..V198912-199012

main62972-50012iUCF10..V199012-199108

sub62972-50013

main62972-50013iUCF10..V199108-199410

9046708023

main90467-08023

9046709030

main90467-09030

6 parts on this diagram · 1 diagram in section
