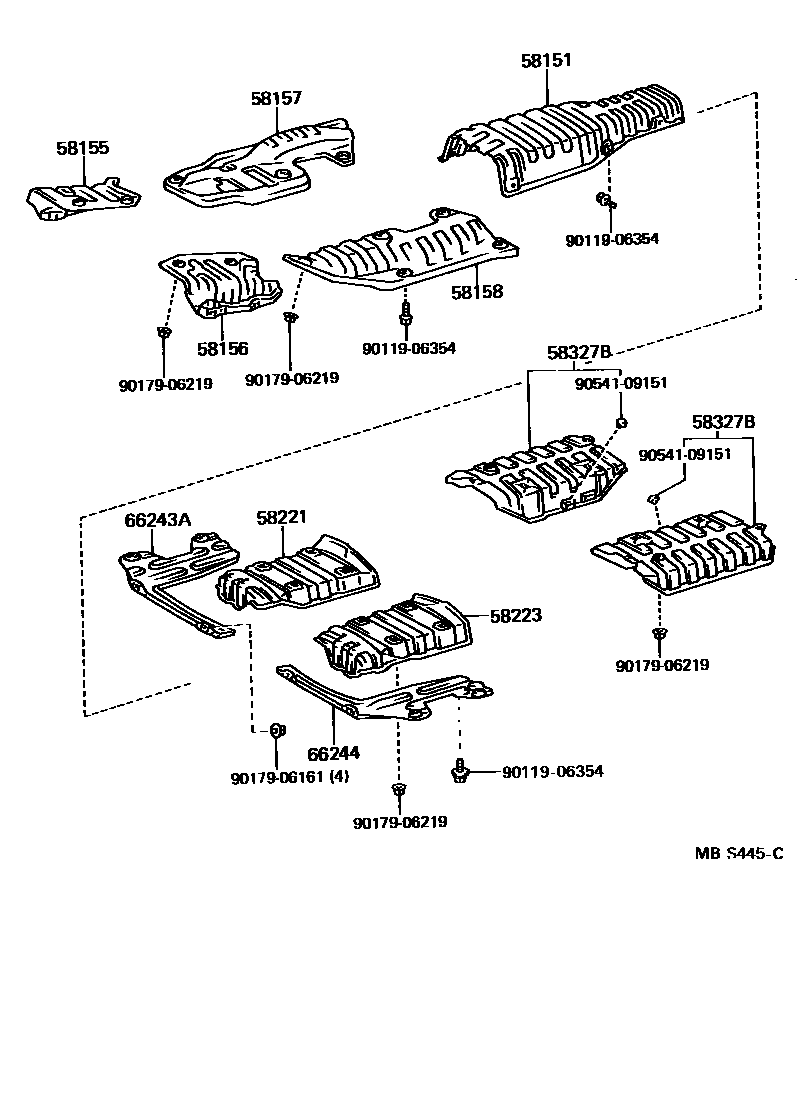

FLOOR INSULATOR
58151INSULATOR, FRONT FLOOR HEAT, NO.1
58155INSULATOR, FRONT FLOOR HEAT, NO.3
58156INSULATOR, FRONT FLOOR HEAT, NO.4
58157INSULATOR, FRONT FLOOR HEAT, NO.5
58158INSULATOR, FRONT FLOOR HEAT, NO.6
58221INSULATOR, CENTER FLOOR HEAT, NO.1
58223INSULATOR, CENTER FLOOR HEAT, NO.2
58327BINSULATOR, MAIN MUFFLER HEAT
RH
LH
66243APROTECTOR, REAR BODY, NO.1
66244PROTECTOR, REAR BODY, NO.2
9011906354
9017906161
9017906219
9054109151
14 parts on this diagram · 1 diagram in section
