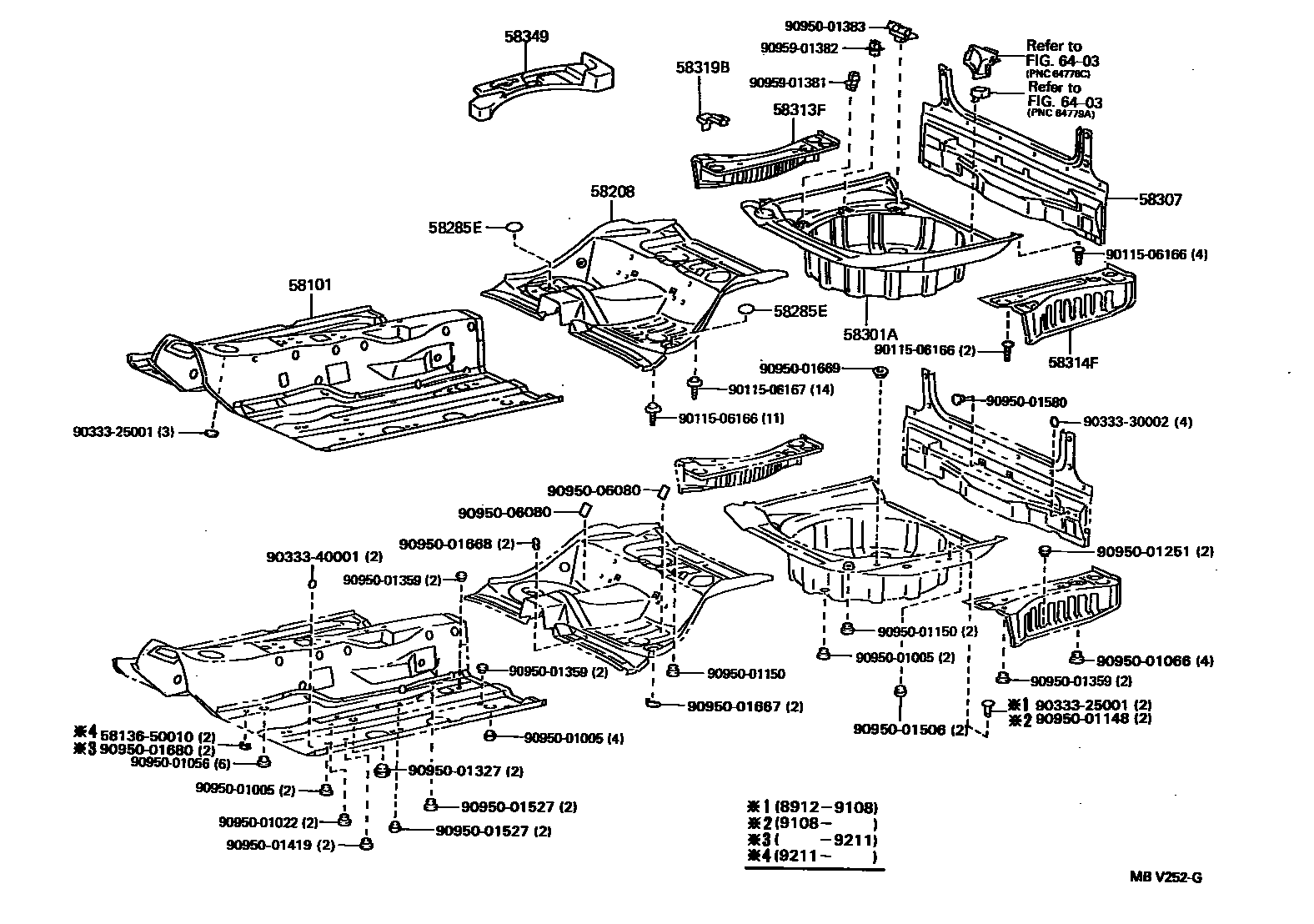

FLOOR PAN & LOWER BACK PANEL

58101PAN SUB-ASSY, FRONT FLOOR

main58101-50010iUCF10..LHD..EUR198912-199208

sub58101-50011

main58101-50011iUCF10..LHD..EUR199208-199211

sub58101-50012

sub58136-50010

main58101-50012iUCF10..LHD..EUR199211-199405

sub58101-50013

sub33555-50011

sub90333-20001

main58101-50013iUCF10..LHD..EUR199405-199410

sub58101-50014

sub90950-01850

main58101-50020iUCF10..RHD198912-199208

sub58101-50021

main58101-50021iUCF10..RHD199208-199211

sub58101-50022

sub58136-50010

main58101-50022iUCF10..RHD199211-199405

sub58101-50023

sub33555-50011

sub90333-20001

main58101-50023iUCF10..RHD199405-199410

sub58101-50024

sub90950-01850

main58101-50030iUCF10..V198912-199208

sub58101-50031

main58101-50031iUCF10..V199208-199211

sub58101-50032

sub58136-50010

main58101-50032iUCF10..V199211-199405

sub58101-50033

sub33555-50011

sub90333-20001

main58101-50033iUCF10..V199405-199410

sub58101-50034

sub90950-01850

58208PAN, CENTER FLOOR

main58201-50900iUCF10..GEN198912-199403

sub58201-50904

main58201-50902iUCF10..ARL,EUR198912-199403

sub58201-50906

main58201-50903iUCF10..V198912-199403

sub58201-50907

58285ECOVER, CENTER FLOOR HOLE

main58285-50010iUCF10198912-199410

58301APANEL SUB-ASSY, REAR FLOOR

main58301-50900iUCF10198912-199202

sub58301-50902

main58301-50902iUCF10199202-199208

sub58301-50903

sub89279-50010

sub89279-50020

main58301-50903iUCF10199208-199410

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-50010iUCF10198912-199212

sub58307-50011

main58307-50011iUCF10199212-199410

58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH

main58313-50010iUCF10198912-199410

58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH

main58314-50010iUCF10198912-199205

sub58314-50011

sub90950-01148

main58314-50011iUCF10199205-199410

58319BBRACKET, REAR FLOOR SIDE PANEL

main58319-50010iUCF10198912-199207

sub58319-50011

main58319-50011iUCF10199207-199410

main58319-50011iUCF10..LHD..EUR;UCF10..ARL,GEN,V199208-199211

W(CD AUTO CHANGER)

58349CUSHION, REAR FLOOR SIDE

main58349-50010iUCF10198912-199208

main58349-50011iUCF10..ARL,EUR,V199208-199410

6403

5813650010COVER, FRONT FLOOR HOLE

main58136-50010

9011506166

main90115-06166

9011506167

main90115-06167

9033325001

main90333-25001

9033330002

main90333-30002

9033340001

main90333-40001

9095001005

main90950-01005

9095001022

main90950-01022

9095001056

main90950-01056

9095001066

main90950-01066

9095001148

main90950-01148

9095001150

main90950-01150

9095001251

main90950-01251

9095001327

main90950-01327

9095001359

main90950-01359

9095001383

main90950-01383

9095001419

main90950-01419

9095001506

main90950-01506

9095001527

main90950-01527

9095001580

main90950-01580

9095001667

main90950-01667

9095001668

main90950-01668

9095001669

main90950-01669

9095001680

main90950-01680

9095006080

main90950-06080

9095901381

main90959-01381

9095901382

main90959-01382

37 parts on this diagram · 1 diagram in section
