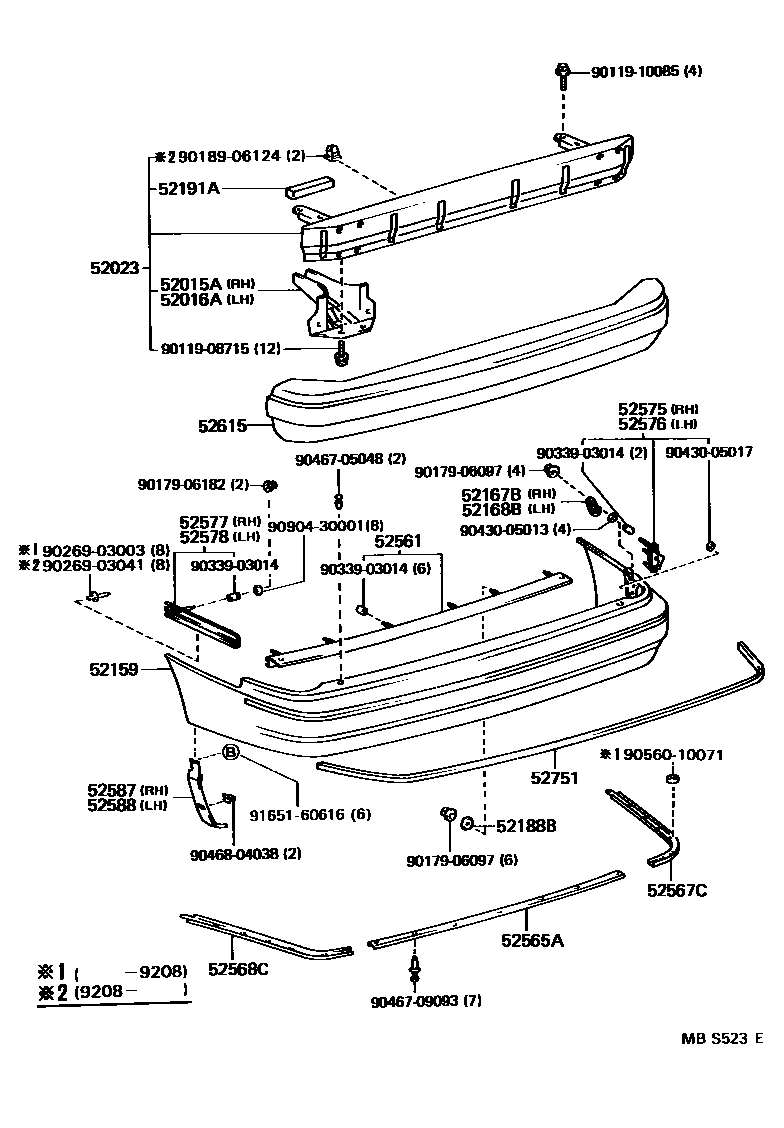

REAR BUMPER & BUMPER STAY
52015AARM SUB-ASSY, REAR BUMPER, RH
52016AARM SUB-ASSY, REAR BUMPER, LH
52023REINFORCEMENT SUB-ASSY, REAR BUMPER
52167BBRACKET, REAR BUMPER EXTENSION MOUNTING, RH
52168BBRACKET, REAR BUMPER EXTENSION MOUNTING, LH
52188BSPACER, REAR BUMPER MOUNTING
52191ASEAL, REAR BUMPER ARM
52561RETAINER, REAR BUMPER, UPPER CENTER
52565ARETAINER, REAR BUMPER, LOWER
52567CRETAINER, REAR BUMPER LOWER SIDE, RH
52568CRETAINER, REAR BUMPER LOWER SIDE, LH
52575RETAINER, REAR BUMPER SIDE, RH
52576RETAINER, REAR BUMPER SIDE, LH
52577RETAINER, REAR BUMPER SIDE, NO.2 RH
52578RETAINER, REAR BUMPER SIDE, NO.2 LH
52587RETAINER, REAR BUMPER END, RH
52588RETAINER, REAR BUMPER END, LH
52615ABSORBER, REAR BUMPER ENERGY
52751MOULDING, REAR BUMPER
9011908715
main90119-08715
9011910085
main90119-10085
9017906097
main90179-06097
9017906182
main90179-06182
9018906124
main90189-06124
9026903003
main90269-03003
9026903041
main90269-03041
9033903014
main90339-03014
9043005017
main90430-05017
9046705048
main90467-05048
9046709093
main90467-09093
9046804038
main90468-04038
9056010071
main90560-10071
9090430001
main90904-30001
9165160616
main91651-60616
35 parts on this diagram · 2 diagrams in section
