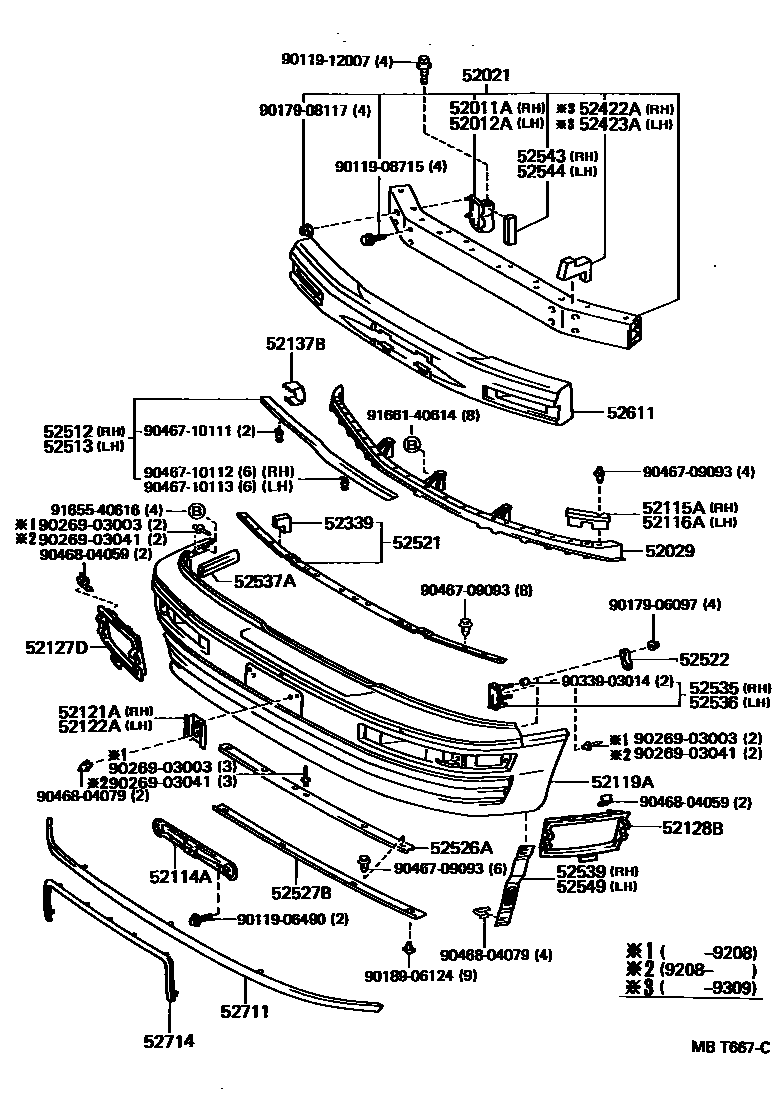

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

52011AARM SUB-ASSY, FRONT BUMPER, RH

main52011-50010iUCF10198912-199410

52012AARM SUB-ASSY, FRONT BUMPER, LH

main52012-50010iUCF10198912-199410

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-50011iUCF10198912-199410

52029REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER

main52029-50010iUCF10198912-199410

52114ABRACKET, FRONT BUMPER EXTENSION MOUNTING

main52114-14090iUCF10..ARL198912-199410

main52114-50010iUCF10..EUR198912-199410

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-50010iUCF10198912-199410

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-50010iUCF10198912-199410

52119ACOVER, FRONT BUMPER

main52119-50901iUCF10..ARL198912-199410

main52119-50902iUCF10..GEN,V198912-199410

main52119-50903iUCF10..LHD..EUR199208-199308

main52119-50904iUCF10..LHD..EUR199208-199308

W(HEAD LAMP CLEANER)

main52119-50905iUCF10..LHD..EUR199208-199308

W(FRONT LICENSE MOULDING)

main52119-50906iUCF10..RHD..EUR199208-199309

W(FRONT LICENSE MOULDING)

main52119-50909iUCF10..ARL199108-199410

W(HEAD LAMP CLEANER)

52121ABRACKET, FRONT LICENSE PLATE MOUNTING, RH

main52121-14090iUCF10198912-199410

52122ABRACKET, FRONT LICENSE PLATE MOUNTING, LH

main52122-14010iUCF10198912-199410

52127DCOVER, FRONT BUMPER HOLE, RH

main52127-50900iUCF10..EUR,GEN,V198912-199410

52128BCOVER, FRONT BUMPER HOLE, LH

main52128-50900iUCF10..EUR,GEN,V198912-199410

52137BPLATE, FRONT BUMPER BRACKET, NO.1

main52137-50010×2iUCF10198912-199410

52339SEAL, FRONT BUMPER STEP

main52339-50010×2iUCF10198912-199410

52422APAD, FRONT BUMPER, RH

main52421-50010iUCF10198912-199309

52423APAD, FRONT BUMPER, LH

main52421-50010iUCF10198912-199309

52512FILLER, FRONT BUMPER, RH

main52512-50010iUCF10198912-199410

52513FILLER, FRONT BUMPER, LH

main52513-50010iUCF10198912-199410

52521RETAINER, FRONT BUMPER, UPPER CENTER

main52521-50010iUCF10198912-199410

52522RETAINER, FRONT BUMPER UPPER SIDE

main52522-50010×2iUCF10198912-199410

52526ARETAINER, FRONT BUMPER, LOWER NO.1

main52526-50011iUCF10198912-199410

52527BRETAINER, FRONT BUMPER, LOWER NO.2

main52527-50010iUCF10198912-199410

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-50010iUCF10198912-199410

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-50010iUCF10198912-199410

52537ARETAINER, FRONT BUMPER SIDE, NO.2

main52537-50010×2iUCF10198912-199410

52539RETAINER, FRONT BUMPER SIDE, NO.3 RH

main52539-50010iUCF10198912-199410

52543SEAL, FRONT BUMPER SIDE, RH

main52543-50010×2iUCF10198912-199410

52544SEAL, FRONT BUMPER SIDE, LH

main52543-50010×2iUCF10198912-199410

52549RETAINER, FRONT BUMPER SIDE, NO.3 LH

main52549-50010iUCF10198912-199410

52611ABSORBER, FRONT BUMPER ENERGY

main52611-50010iUCF10198912-199410

52711MOULDING, FRONT BUMPER

main52711-50010iUCF10198912-199410

52714PLUG, FRONT BUMPER MOULDING, LH

main52714-50010-02iUCF10..EUR198912-199208

DEEP RED MICA,3H8

main52714-50010-03iUCF10..EUR198912-199208

SILVER M,051

main52714-50010-05iUCF10..EUR198912-199208

CAMEL BEIGE,4K9

main52714-50010-12iUCF10..EUR198912-199208

DARK ROSE M,3H9 ,4K8

main52714-50010-13iUCF10..EUR198912-199208

LIGHT GRAY M,176

main52714-50010-23iUCF10..EUR198912-199208

DARK GRAY M,180 ,202

main52714-50010-33iUCF10..EUR198912-199208

DARK BLUISH GRAY M,172 ,6K4

main52714-50010-C0iUCF10..EUR199208-199410

SILVER M,051

main52714-50010-D0iUCF10..EUR199308-199410

LIGHT GRAY,199

main52714-50010-D1iUCF10..EUR199208-199410

MEDIUM GRAY,180 ,202 ,6K4

main52714-50010-E0iUCF10..EUR199208-199410

CAMEL BEIGE,4K9

main52714-50010-F0iUCF10..EUR199208-199410

MEDIUM BROWN,4K7

main52714-50010-F1iUCF10..EUR199208-199410

DARK STEEL BLUE M,8J5

9011906490

main90119-06490

9011908715

main90119-08715

9011912007

main90119-12007

9017906097

main90179-06097

9017908117

main90179-08117

9018906124

main90189-06124

9026903003

main90269-03003

9026903041

main90269-03041

9033903014

main90339-03014

9046709093

main90467-09093

9046710111

main90467-10111

9046710112

main90467-10112

9046710113

main90467-10113

9046804059

main90468-04059

9046804079

main90468-04079

9165540616

main91655-40616

9166140614

main91661-40614

49 parts on this diagram · 2 diagrams in section
