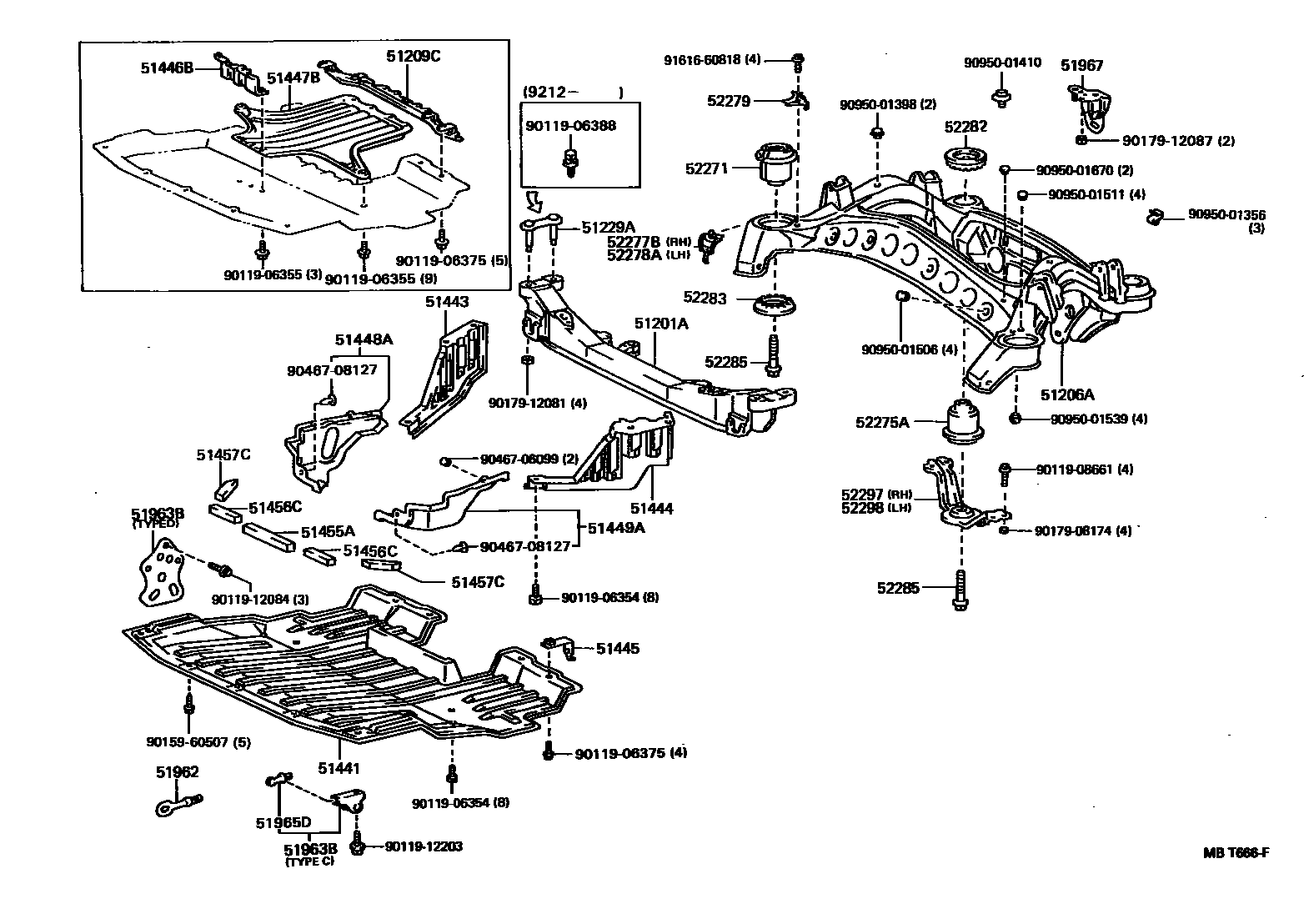

SUSPENSION CROSSMEMBER & UNDER COVER

51201ACROSSMEMBER SUB-ASSY, FRAME, FRONT

main51211-50010iUCF10..LHD198912-199410

main51211-50020iUCF10..RHD198912-199410

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-50010iUCF10..GEN198912-199410

main51206-50020iUCF10..ARL,EUR,V198912-199009

sub51206-50021

main51206-50021iUCF10..ARL,EUR,V199009-199410

51209CCROSSMEMBER SUB-ASSY, FRAME, REAR

main51209-50020iUCF10..LHD..EUR199308-199410

ISRAEL SPEC

sub51209-50030

main51209-50020iUCF10..V198912-199410

ROUGH ROAD PACKAGE

sub51209-50030

51229ABOLT, FRONT SUSPENSION MEMBER MOUNTING

main51229-50010iUCF10198912-199212

sub51229-50011

main51229-50011iUCF10199212-199410

51441COVER, ENGINE UNDER, NO.1

main51441-50010iUCF10..ARL,EUR,GEN198912-199207

sub51441-50012

main51441-50012iUCF10..ARL,EUR,GEN199207-199406

sub51441-50013

main51441-50013iUCF10..ARL,EUR,GEN199406-199410

main51441-50020iUCF10..V198912-199207

sub51441-50022

main51441-50022iUCF10..V199207-199406

sub51441-50023

main51441-50022iUCF10..LHD..EUR199308-199406

ISRAEL SPEC

sub51441-50023

main51441-50023iUCF10..V199406-199410

ISRAEL SPEC

sub51441-50013

51443COVER, ENGINE UNDER, REAR RH

main51443-50010iUCF10..ARL,EUR,GEN198912-199410

51444COVER, ENGINE UNDER, REAR LH

main51444-50010iUCF10..ARL,EUR,GEN198912-199004

sub51444-50011

main51444-50011iUCF10..ARL,EUR,GEN199004-199410

51445BRACKET, ENGINE UNDER COVER

main51445-50010iUCF10198912-199410

51446BBRACKET, ENGINE UNDER COVER, NO.2

main51446-50020iUCF10..V198912-199410

ROUGH ROAD PACKAGE

main51446-50020iUCF10..LHD..EUR199308-199410

ISRAEL SPEC

51447BPROTECTOR, OIL PAN

main51447-50010iUCF10..V198912-199406

ROUGH ROAD PACKAGE

sub51447-50011

sub51441-50013

sub51441-50023

main51447-50010iUCF10..LHD..EUR199308-199406

ISRAEL SPEC

sub51447-50011

sub51441-50013

sub51441-50023

main51447-50011iUCF10..GEN199406-199410

ROUGH ROAD PACKAGE

main51447-50011iUCF10..V199406-199410

ISRAEL SPEC

51448ACOVER, ENGINE SIDE UNDER, RH

main51448-50010iUCF10..ARL,EUR,GEN198912-199410

51449ACOVER, ENGINE SIDE UNDER, LH

main51449-50010iUCF10198912-199410

51455ASEAL, ENGINE UNDER COVER, NO.1

main51455-50010iUCF10198912-199410

51456CSEAL, ENGINE UNDER COVER, NO.2

main51456-50010iUCF10198912-199410

51457CSEAL, ENGINE UNDER COVER, NO.3

main51457-50010iUCF10..ARL,EUR,GEN198912-199410

51962HOOK, NO.2

main51961-50020iUCF10..ARL,EUR,V198912-199410

51963BHOOK, TRANSPORT, FRONT RH

main51093-50020iUCF10..ARL,EUR198912-199410

TYPE C

sub51093-50021

main51093-50020iUCF10..V198912-199410

W(FRONT SPOILER),TYPE C

sub51093-50021

main51963-50020iUCF10..GEN,V198912-199410

TYPE D

main51963-50020iUCF10..V198912-199410

W(FRONT SPOILER),TYPE D

51965DSEAL, FRONT HOOK

main51965-50010iUCF10198912-199410

51967HOOK, TRANSPORT, REAR

main51967-50010iUCF10198912-199410

RH

main51968-50010iUCF10198912-199410

LH

52271CUSHION, REAR SUSPENSION MEMBER

main52271-50010iUCF10198912-199108

sub52271-50011

main52271-50011iUCF10..GEN199108-199410

main52271-50020iUCF10..ARL,EUR,V199009-199108

RH

sub52271-50021

main52271-50021iUCF10..ARL,EUR,V199108-199410

main52272-50020iUCF10..ARL,EUR,V199009-199108

LH

sub52271-50021

52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR

main52275-50010iUCF10198912-199108

sub52275-50011

main52275-50011iUCF10..GEN199108-199410

main52275-50020iUCF10..ARL,EUR,V199108-199410

52277BSTOPPER, REAR SUSPENSION MEMBER, REAR UPPER

main52277-50010iUCF10198912-199410

52278ARETAINER, REAR SUSPENSION MENBER LOWER STOPPER, LH

main52278-50010iUCF10198912-199410

52279RETAINER, REAR SUSPENSION MEMBER CUSHION

main52279-50010iUCF10198912-199310

52282STOPPER, DIFFERENTIAL SUPPORT MEMBER, UPPER

main52282-50010iUCF10198912-199108

sub52282-50011

main52282-50011iUCF10199108-199410

52283STOPPER, DIFFERENTIAL SUPPORT MEMBER, LOWER

main52283-50010iUCF10198912-199108

sub52283-50011

main52283-50011iUCF10199108-199410

52285BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.1

main52285-30020iUCF10199212-199410

sub52285-30021

main52285-50010iUCF10198912-199212

sub52285-50011

52297BRACE, REAR SUSPENSION MEMBER, REAR LOWER RH

main52297-50010iUCF10198912-199301

sub52297-50011

main52297-50011iUCF10199301-199410

52298BRACE, REAR SUSPENSION MEMBER, REAR LOWER LH

main52298-50010iUCF10198912-199301

sub52298-50011

main52298-50011iUCF10199301-199410

9011906354

main90119-06354

9011906355

main90119-06355

9011906375

main90119-06375

9011906388

main90119-06388

9011908661

main90119-08661

9011912084

main90119-12084

9011912203

main90119-12203

9015960507

main90159-60507

9017908174

main90179-08174

9017912081

main90179-12081

9017912087

main90179-12087

9046706099

main90467-06099

9046708127

main90467-08127

9095001356

main90950-01356

9095001398

main90950-01398

9095001410

main90950-01410

9095001506

main90950-01506

9095001511

main90950-01511

9095001539

main90950-01539

9095001670

main90950-01670

9161660818

main91616-60818

50 parts on this diagram · 1 diagram in section
