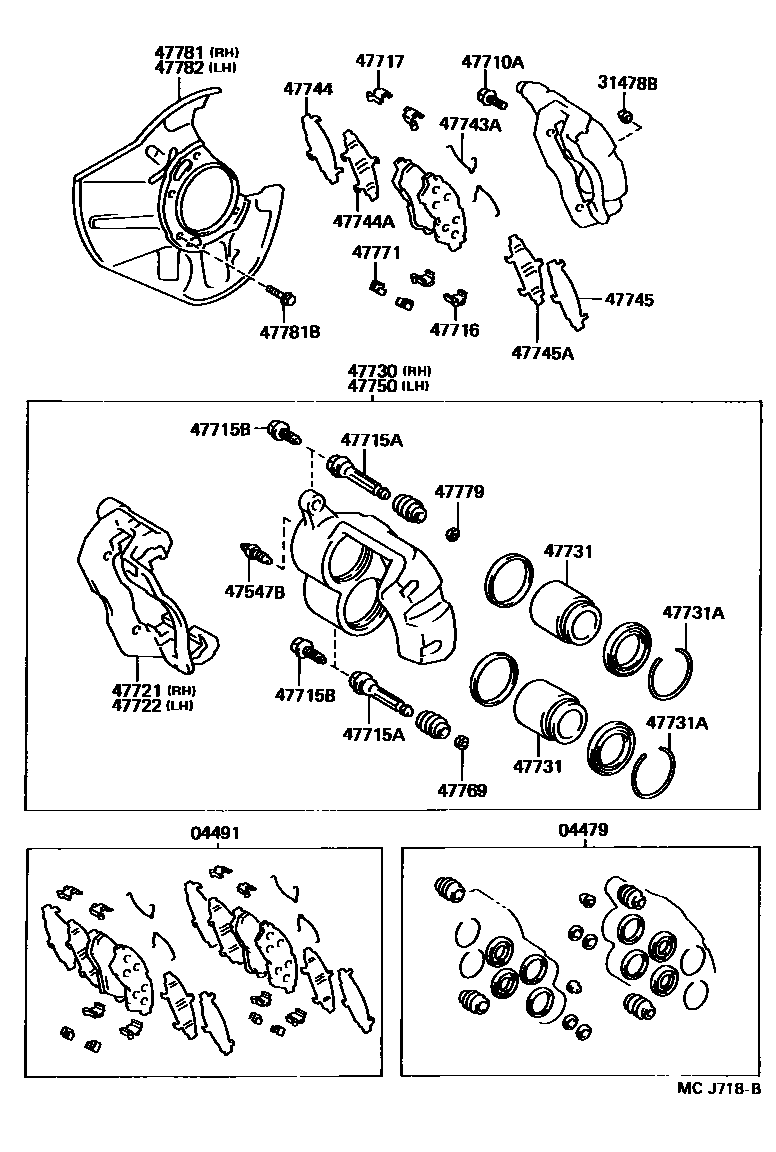

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0003 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-50030iUCF10198912-199208

main04479-50050iUCF10199208-199410

sub04479-50051

04491PAD KIT, DISC BRAKE, FRONT

main04491-24031iUCF10..ARL,GEN199108-199208

sub04491-24060

main04491-50020iUCF10..EUR,V198912-199003

sub04491-50021

main04491-50021iUCF10..EUR,V199003-199208

sub04465-50080

main04491-50030iUCF10..ARL,GEN198912-199003

sub04491-50031

main04491-50031iUCF10..ARL,GEN199003-199108

sub04465-50130

main04491-50050iUCF10..V199009-199208

sub04465-50020

main04491-50070iUCF10..ARL,GEN,V199208-199303

sub04491-50071

main04491-50071iUCF10..ARL,GEN,V199303-199304

sub04465-50030

main04491-50080iUCF10..EUR199208-199303

sub04491-50081

main04491-50081iUCF10..EUR199303-199306

sub04491-50130

main04491-50110iUCF10..ARL,GEN,V199304-199410

sub04491-50111

main04491-50130iUCF10..EUR199306-199410

sub04465-50110

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iUCF10198912-199208

main31478-50020iUCF10199208-199410

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-27030iUCF10198912-199410

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12175iUCF10198912-199410

*12-1.25PX35-27

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-50020iUCF10198912-199410

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90105-08164iUCF10198912-199410

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-24010iUCF10..EUR199303-199402

main47716-30080iUCF10199208-199303

sub47716-24010

sub47716-50050

main47716-50010iUCF10198912-199208

INNER

main47716-50030iUCF10198912-199208

OUTER

main47716-50050iUCF10..ARL,GEN,V199303-199410

sub47716-50051

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47716-24020iUCF10..EUR199303-199402

main47716-30090iUCF10199208-199303

sub47716-24020

sub47716-50060

main47716-50060iUCF10199303-199410

sub47716-50061

main47717-50010iUCF10198912-199003

INNER

sub47717-50011

main47717-50011iUCF10199003-199208

INNER

main47717-50030iUCF10198912-199003

OUTER

sub47717-50031

main47717-50031iUCF10199003-199208

OUTER

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-50030iUCF10198912-199208

main47721-50050iUCF10199208-199402

sub47721-50052

main47721-50052iUCF10199402-199410

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-50030iUCF10198912-199208

main47722-50050iUCF10199208-199402

sub47722-50052

main47722-50052iUCF10199402-199410

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-50030iUCF10198912-199208

sub47730-50031

main47730-50060iUCF10199208-199303

sub47730-50061

main47730-50061iUCF10199303-199304

sub47730-50062

main47730-50062iUCF10199304-199402

sub47730-50063

main47730-50063iUCF10199402-199410

47731PISTON, FRONT DISC BRAKE

main47731-50030iUCF10198912-199410

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-50002iUCF10198912-199410

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-30020iUCF10199208-199410

main47743-50030iUCF10198912-199208

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47745-50010iUCF10198912-199208

47744ASHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE)

main47744-50010iUCF10198912-199208

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47745-50010iUCF10198912-199208

47745ASHIM, ANTI-SQUEAL, NO.4(FOR FRONT DISC BRAKE)

main47744-50010iUCF10198912-199208

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-50030iUCF10198912-199208

sub47750-50031

main47750-50060iUCF10199208-199303

sub47750-50061

main47750-50061iUCF10199303-199304

sub47750-50062

main47750-50062iUCF10199304-199402

sub47750-50063

main47750-50063iUCF10199402-199410

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-50010iUCF10198912-199410

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-50010iUCF10198912-199208

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47769-50020iUCF10198912-199410

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-50010iUCF10198912-199208

sub47781-50011

main47781-50020iUCF10199208-199410

sub47781-50021

sub90148-60028

47781BBOLT(FOR DUST COVER SETTING)

main90119-06227iUCF10198912-199410

*6-1.0PX14-7.5

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-50010iUCF10198912-199208

sub47782-50011

main47782-50020iUCF10199208-199410

sub47782-50021

sub90148-60028

26 parts on this diagram · 3 diagrams in section
