BRAKE BOOSTER & VACUUM TUBE

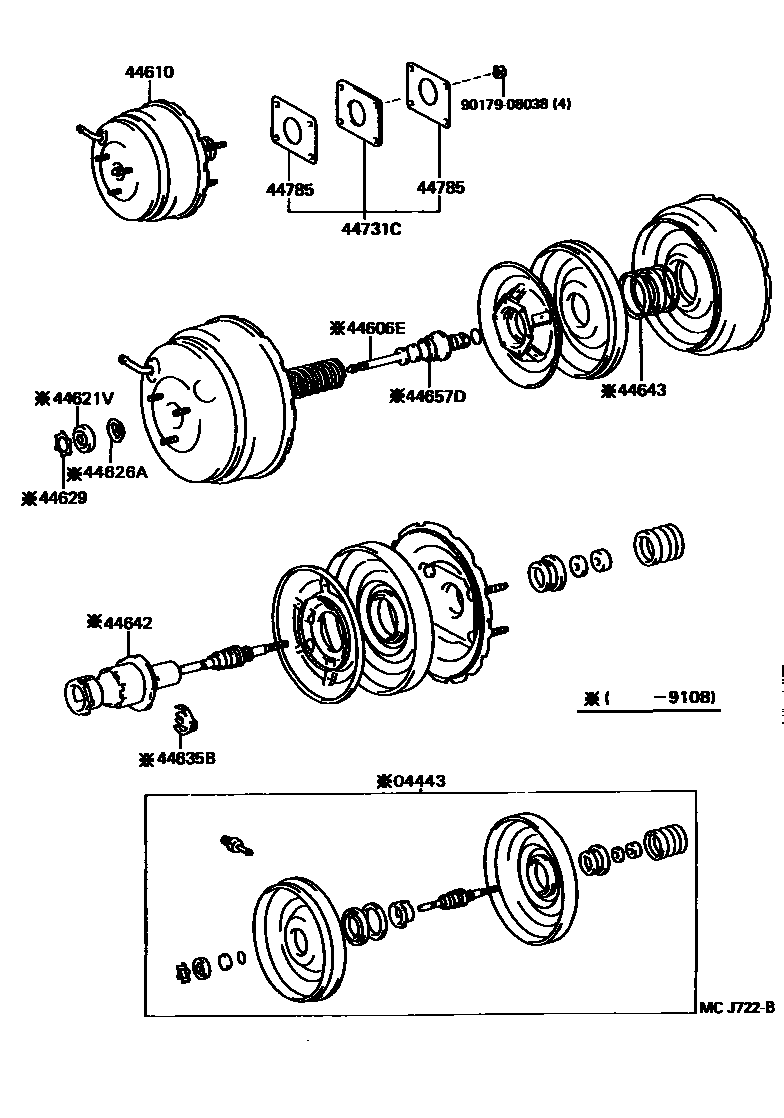

Parts diagram
04443BOOSTER KIT, BRAKE
main04443-50010i198912-199208
44606EROD SUB-ASSY, BRAKE BOOSTER PISTON
main44606-20800i198912-199208
44610BOOSTER ASSY, BRAKE
main44610-50010i198912-199208
main44610-50020i198912-199208
W(*TRC)
main44610-50030i198912-199208
main44610-50040i198912-199208
W(*TRC)
main44610-50051i199208-199308
main44610-50052i199308-199410
main44610-50070i199012-199108
sub44610-50150
main44610-50071i199108-199208
sub44610-50150
main44610-50101i199108-199208
W(*TRC)
sub44610-50160
main44610-50110i199208-199308
main44610-50111i199308-199410
main44610-50120i199208-199308
W(*TRC)
main44610-50121i199308-199410
W(*TRC)
main44610-50130i199208-199308
main44610-50131i199308-199410
main44610-50140i199208-199304
W(*TRC)
main44610-50150i199208-199308
main44610-50151i199308-199410
main44610-50160i199208-199308
W(*TRC)
main44610-50161i199308-199410
W(*TRC)
44621VSEAL, BOOSTER BODY
main44621-14030i198912-199208
44626ARETAINER, BOOSTER BODY SEAL
main44626-60010i198912-199208
44629RING, CIRCULAR INTERNAL
main44628-60010i198912-199208
44635BKEY, VALVE STOPPER
main44635-20800i198912-199208
44642PISTON, BRAKE BOOSTER
main44641-30560i198912-199208
DIAPHRAGM
main44642-20800i198912-199208
PISTON
44643RETAINER, DIAPHRAGM
main44643-20800i198912-199208
44657DCASE, REACTION DISC
main44657-50010i198912-199208
44731CBRACKET, BRAKE BOOSTER
main44731-50010i198912-199205
sub44731-50011
main44731-50011i199205-199410
sub44731-50020
44785GASKET, BRAKE BOOSTER
main44785-50010i198912-199410
9017908038
main90179-08038

13 parts on this diagram · 3 diagrams in section
