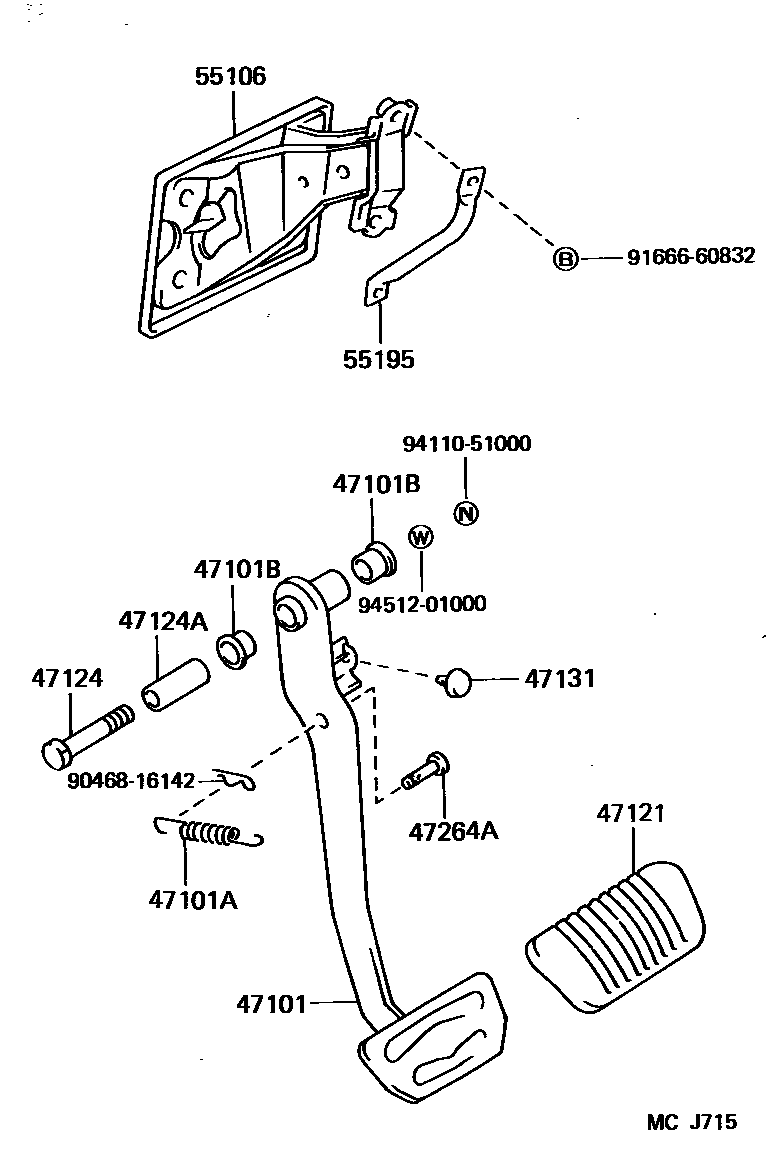

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101PEDAL SUB-ASSY, BRAKE

main47101-50010iUCF10..LHD198912-199410

main47101-50020iUCF10..RHD198912-199005

sub47101-50021

main47101-50021iUCF10..RHD199005-199410

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-12033iUCF10198912-199410

47101BBUSH(FOR BRAKE PEDAL)

main90386-13192iUCF10198912-199410

47121PAD, BRAKE PEDAL

main47121-14010iUCF10198912-199410

47124SHAFT, BRAKE PEDAL

main90101-10039iUCF10198912-199410

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iUCF10198912-199410

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06032iUCF10198912-199208

sub90541-06036

main90541-06036iUCF10199208-199410

47264APIN(FOR PUSH ROD)

main90249-10064iUCF10198912-199410

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-50010iUCF10..LHD198912-199006

sub55106-50011

main55106-50011iUCF10..LHD199006-199210

sub55106-50012

sub55195-50011

main55106-50012iUCF10..LHD199210-199410

main55106-50020iUCF10..RHD198912-199005

sub55106-50021

main55106-50021iUCF10..RHD199005-199210

sub55106-50022

sub55195-50021

main55106-50022iUCF10..RHD199210-199410

55195STAY, PEDAL BRACKET, NO.1

main55195-50010iUCF10..LHD198912-199210

sub55195-50011

main55195-50011iUCF10..LHD199210-199410

main55195-50020iUCF10..RHD198912-199210

sub55195-50021

main55195-50021iUCF10..RHD199210-199410

9046816142

main90468-16142

9166660832

main91666-60832

9411051000

main94110-51000

9451201000

main94512-01000

14 parts on this diagram · 2 diagrams in section
