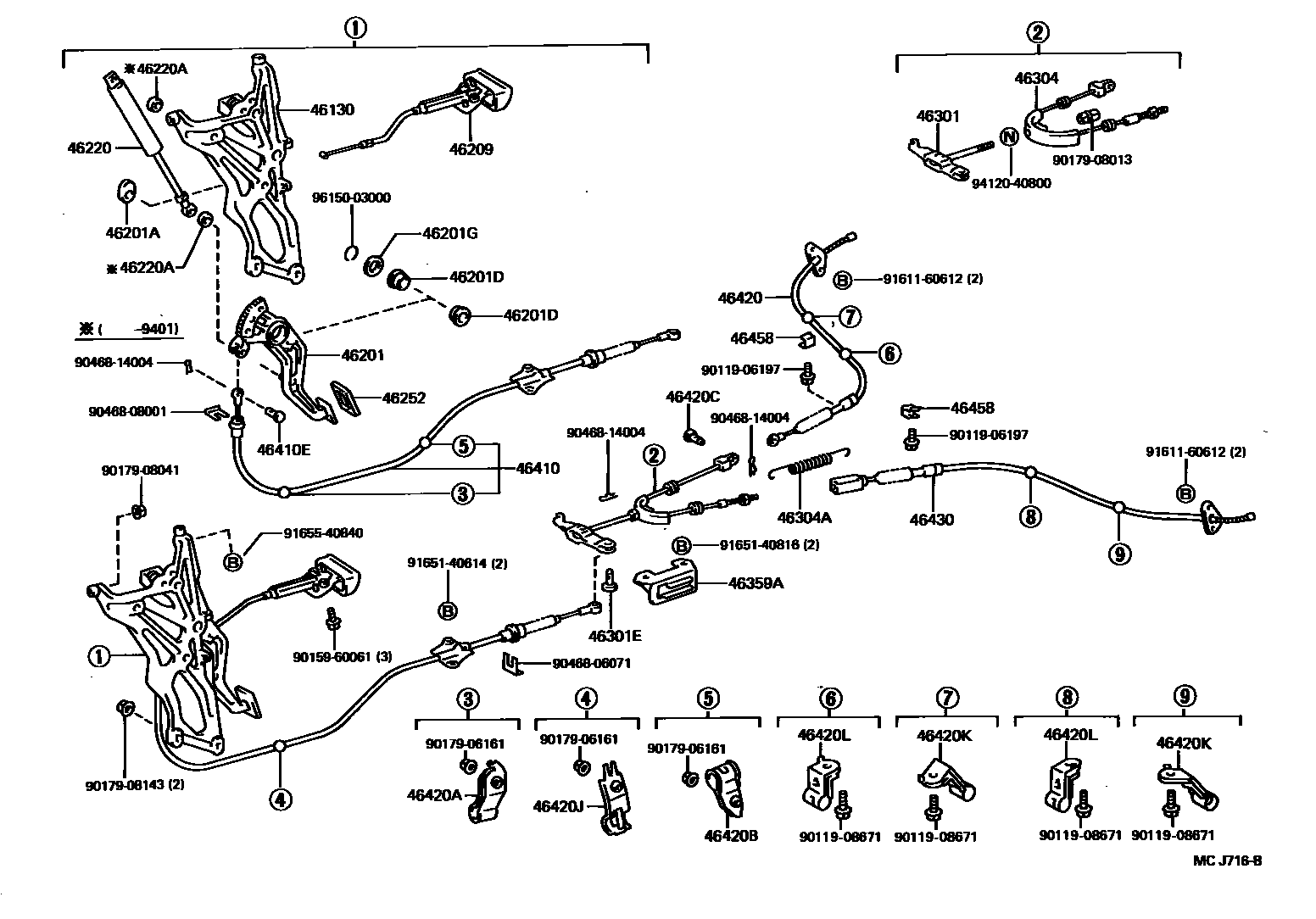

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1

46130BRACKET ASSY, PARKING BRAKE PEDAL

main46130-50010iUCF10..LHD198912-199410

main46130-50021iUCF10..RHD198912-199410

46201PEDAL SUB-ASSY, PARKING BRAKE

main46201-50010iUCF10..LHD198912-199410

main46201-50020iUCF10..RHD198912-199410

46201ACUSHION(FOR PARKING BRAKE PEDAL)

main90541-06032iUCF10..LHD198912-199208

sub90541-06036

main90541-06036iUCF10..LHD199208-199403

main90541-15013iUCF10..RHD198912-199410

46201DBUSH(FOR PARKING BRAKE PEDAL)

main90386-16022iUCF10..LHD198912-199410

main90386-30002iUCF10..RHD198912-199410

RH

main90386-30003iUCF10..RHD198912-199410

LH

46201GSPACER(FOR PARKING BRAKE PEDAL)

main90560-30010iUCF10..RHD198912-199410

46209CABLE SUB-ASSY, PARKING BRAKE RELEASE

main46209-50010-02iUCF10..V198912-199108

DEEP RED,TRIM3#

sub46209-50011

sub46209-50010

main46209-50010-03iUCF10..LHD198912-199208

SHADOW GRAY,TRIM1#

sub46209-50011

sub46209-50010

main46209-50010-04iUCF10..LHD198912-199208

DARK BLUE,TRIM8#

sub46209-50011

sub46209-50010

main46209-50010-05iUCF10..LHD198912-199208

GREIGE,TRIM0#

sub46209-50011

sub46209-50010

main46209-50010-06iUCF10..LHD198912-199208

DARK ROSE,TRIM4#

sub46209-50011

sub46209-50010

main46209-50010-C0iUCF10..LHD..EUR199208-199410

BRACK,TRIM2#

sub46209-50011

sub46209-50010

main46209-50010-E0iUCF10..LHD199208-199410

OAK,TRIM0#

sub46209-50011

sub46209-50010

main46209-50010-K0iUCF10..V199208-199410

TAUPE,TRIM9#

sub46209-50011

sub46209-50010

main46209-50010-P0iUCF10..LHD199208-199410

SHADOW GRAY,TRIM1#

sub46209-50011

sub46209-50010

main46209-50010-W3iUCF10..LHD199208-199410

DK.BLUE,TRIM8#

sub46209-50011

sub46209-50010

main46209-50020-03iUCF10..RHD198912-199208

SHADOW GRAY,TRIM1#

sub46209-50020

main46209-50020-04iUCF10..RHD198912-199208

DARK BLUE,TRIM8#

sub46209-50020

main46209-50020-05iUCF10..RHD198912-199208

GREIGE,TRIM0#

sub46209-50020

main46209-50020-06iUCF10..RHD198912-199208

DARK ROSE,TRIM4#

sub46209-50020

main46209-50020-C0iUCF10..RHD..EUR199208-199410

BRACK,TRIM2#

sub46209-50020

main46209-50020-E0iUCF10..RHD199208-199410

OAK,TRIM0#

sub46209-50020

main46209-50020-K0iUCF10..ARL,GEN199208-199410

TAUPE,TRIM9#

sub46209-50020

main46209-50020-P0iUCF10..RHD199208-199410

SHADOW GRAY,TRIM1#

sub46209-50020

main46209-50020-W3iUCF10..RHD199208-199410

DK.BLUE,TRIM8#

sub46209-50020

46220ABSORBER ASSY, PARKING BRAKE PEDAL RETURN

main46220-30010iUCF10198912-199410

46220ACUSHION(FOR PARKING BRAKE PEDAL RETURN ABSORBER)

main90540-07010iUCF10198912-199401

46252PAD, PARKING PEDAL

main46252-20010iUCF10..RHD199110-199410

main46252-50010iUCF10198912-199410

46301LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE

main46301-50010iUCF10198912-199405

sub46301-50020

main46301-50020iUCF10199405-199410

46301EPIN, W/HOLE(FOR INTERMEDIATE LEVER)

main90240-08059iUCF10198912-199410

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46304-50010iUCF10198912-199208

sub46304-50020

main46304-50020iUCF10199208-199410

46304ASPRING, TENSION(FOR PARKING BRAKE EQUALIZER)

main90507-20022iUCF10198912-199208

sub90507-22002

main90905-07003iUCF10199208-199410

46359ABRACKET, PARKING BRAKE INTERMEDIATE LEVER SUPPORT

main46359-50010iUCF10198912-199405

sub46359-50020

main46359-50020iUCF10199405-199410

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-50010iUCF10..LHD198912-199107

sub46410-50011

main46410-50011iUCF10..LHD199107-199208

sub46410-50030

main46410-50020iUCF10..RHD198912-199208

sub46410-50040

main46410-50030iUCF10..LHD199208-199410

main46410-50040iUCF10..RHD199208-199410

46410EPIN, W/HOLE(FOR PARKING BRAKE CABLE NO.1)

main90240-08062iUCF10..RHD198912-199410

main90240-08064iUCF10..LHD198912-199410

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-50010iUCF10198912-199208

sub46420-50020

main46420-50020iUCF10199208-199410

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main90949-01511iUCF10..LHD198912-199410

main90949-01578iUCF10..RHD198912-199410

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main90949-01512iUCF10198912-199410

46420CPIN, W/HOLE(FOR PARKING BRAKE CABLE)

main90240-08059iUCF10198912-199410

46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)

main90949-01515iUCF10198912-199410

46420KCLAMP, NO.4(FOR PARKING BRAKE CABLE)

main90949-01517iUCF10198912-199410

RH

main90949-01533iUCF10198912-199410

LH

46420LCLAMP, NO.5(FOR PARKING BRAKE CABLE)

main90949-01518iUCF10198912-199410

RH

main90949-01519iUCF10198912-199410

LH

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-50010iUCF10198912-199208

sub46430-50020

main46430-50020iUCF10199208-199410

46458RETAINER, CABLE

main46458-30060iUCF10199303-199410

main46458-50010iUCF10198912-199303

9011906197

main90119-06197

9011908671

main90119-08671

9015960061

main90159-60061

9017906161

main90179-06161

9017908013

main90179-08013

9017908041

main90179-08041

9017908143

main90179-08143

9046806071

main90468-06071

9046808001

main90468-08001

9046814004

main90468-14004

9161160612

main91611-60612

9165140614

main91651-40614

9165140816

main91651-40816

9165540840

main91655-40840

9412040800

main94120-40800

9615003000

main96150-03000
