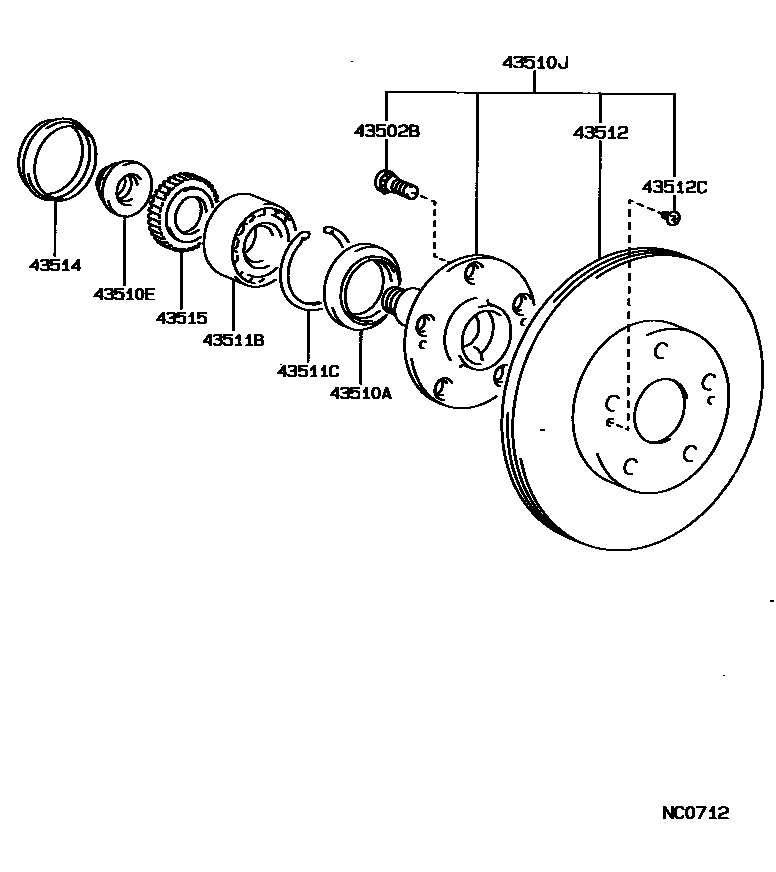

FRONT AXLE HUB

43502BBOLT, HUB (FOR FRONT AXLE)

main90942-02049iUCF10198912-199210

main90942-02070iUCF10199210-199410

sub90942-02049

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-50008iUCF10198912-199208

main90311-50016iUCF10..ARL,GEN,V199208-199410

43510ENUT (FOR STEERING KNUCKLE)

main90179-24005iUCF10..EUR198912-199410

43510JHUB & DISC ASSY, FRONT AXLE

main43510-50060iUCF10198912-199208

main43510-50100iUCF10..ARL,GEN199211-199410

main43510-50110iUCF10..EUR,V199302-199410

main43510-50120iUCF10..EUR,V199208-199302

43511BBEARING (FOR FRONT AXLE HUB)

main90369-35034iUCF10198912-199311

sub90903-63006

main90903-63006iUCF10199311-199410

43511CRING, HOLE SNAP (FOR FRONT AXLE HUB)

main90521-82001iUCF10..EUR198912-199410

T=2.5

43512DISC, FRONT

main43512-30241iUCF10199208-199302

sub43512-50100

main43512-50060iUCF10198912-199208

main43512-50100iUCF10..ARL,GEN199211-199410

main43512-50120iUCF10..EUR,V199302-199410

sub43512-50110

43512CSCREW (FOR FRONT DISC)

main90155-60002iUCF10198912-199410

43514CAP, FRONT HUB GREASE

main43514-50010iUCF10198912-199410

43515ROTOR, SKID CONTROL, FRONT

main43515-50010iUCF10198912-199410

10 parts on this diagram · 1 diagram in section
