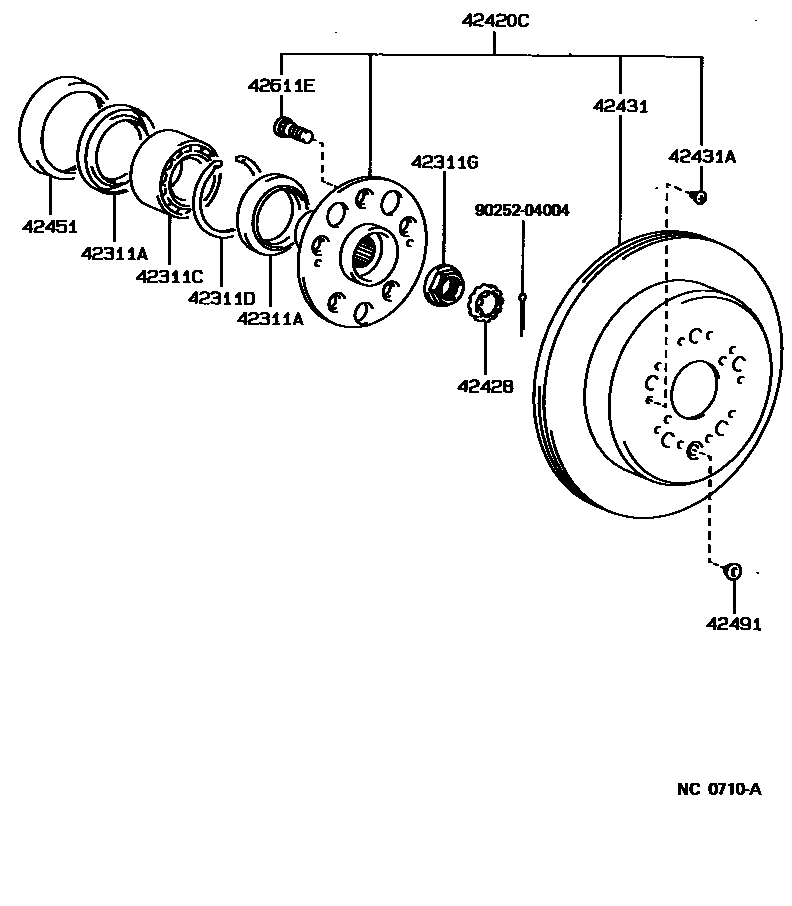

REAR AXLE SHAFT & HUB

0001 1 0002 1

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90311-57001iUCF10¥580198912-199208

OUTER

main90311-57002iUCF10¥870199208-199410

OUTER

main90311-63001iUCF10¥750198912-199208

INNER

main90311-63002iUCF10¥1,080199208-199410

INNER

42311CBEARING(FOR REAR AXLE SHAFT)

main90369-43005iUCF10¥7,700198912-199410

42311DRING, SNAP(FOR REAR AXLE SHAFT)

main90521-85002iUCF10¥300198912-199410

42311GNUT(FOR REAR AXLE SHAFT)

main90179-24009iUCF10¥370198912-199410

42420CSHAFT & DISC ASSY, REAR AXLE

main42420-50020iUCF10¥33,700198912-199208

main42420-50031iUCF10¥20,300199210-199410

sub42420-50050¥21,700

main42420-50041iUCF10¥33,700199208-199210

sub42420-50050¥21,700

42428PLATE, REAR AXLE LOCK NUT

main42428-22010iUCF10¥400198912-199410

42431DISC, REAR

main42431-50020iUCF10¥17,200198912-199208

main42431-50040iUCF10¥14,100199208-199410

sub42431-40080¥14,300

42431ASCREW (FOR REAR DISC)

main90155-60002iUCF10¥120198912-199410

42451DEFLECTOR, REAR WHEEL BEARING DUST, NO.1

main42451-50010iUCF10¥1,760198912-199410

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-22020iUCF10¥140198912-199410

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02049iUCF10¥240198912-199210

main90942-02070iUCF10¥390199210-199410

sub90942-02049¥240

9025204004

main90252-04004¥90

12 parts on this diagram · 2 diagrams in section
