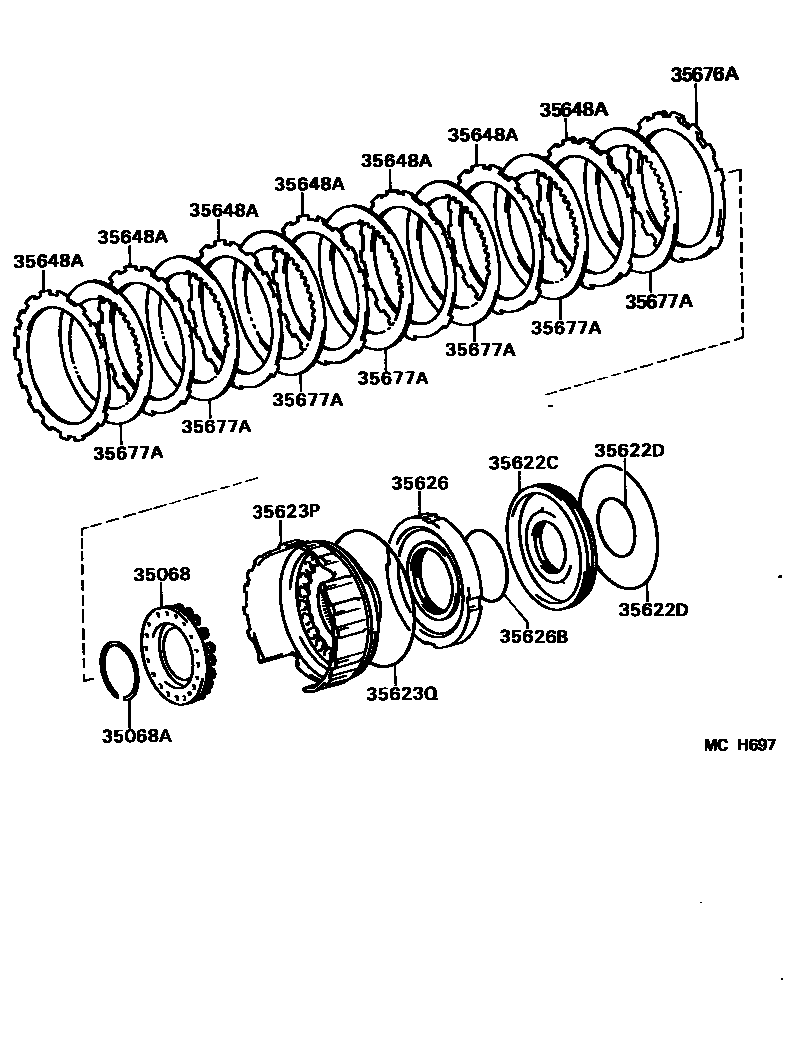

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-50010iUCF10¥1,280198912-199410

35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)

main90520-52262iUCF10¥240198912-199410

35622CPISTON, 1ST & REVERSE BRAKE, NO.1

main35622-30010iUCF10¥2,500198912-199410

35622DRING, O (FOR 1ST & REVERSE BRAKE PISTON NO.1)

main90301-57188iUCF10¥630198912-199410

INNER

main90301-99193iUCF10¥800198912-199410

OUTER

35623PPISTON, 1ST & REVERSE BRAKE, NO.2

main35623-50010iUCF10¥5,300198912-199410

35623QRING, O (FOR 1ST & REVERSE BRAKE PISTON NO.2)

main90301-99192iUCF10¥800198912-199410

35626SLEEVE, BRAKE REACTION

main35626-30020iUCF10¥3,150198912-199410

35626BRING (FOR BRAKE REACTION SLEEVE INNER)

main90301-68191iUCF10¥630198912-199410

sub90301-67005¥190

35648APLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35648-30031iUCF10¥1,430198912-199410

35676AFLANGE, BRAKE (FOR 1ST & REVERSE BRAKE)

main35676-50010iUCF10¥3,050198912-199410

T=5.0

main35676-50020iUCF10¥2,780198912-199410

T=4.8

main35676-50030iUCF10¥2,780198912-199410

T=4.6

main35676-50040iUCF10¥2,780198912-199410

T=4.4

main35676-50050iUCF10¥2,560198912-199410

T=4.2

main35676-50060iUCF10¥2,560198912-199410

T=4.0

35677ADISC, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35677-30110iUCF10¥2,140198912-199208

sub35677-30130¥2,660

main35677-30130iUCF10¥2,660199208-199410

11 parts on this diagram · 1 diagram in section
