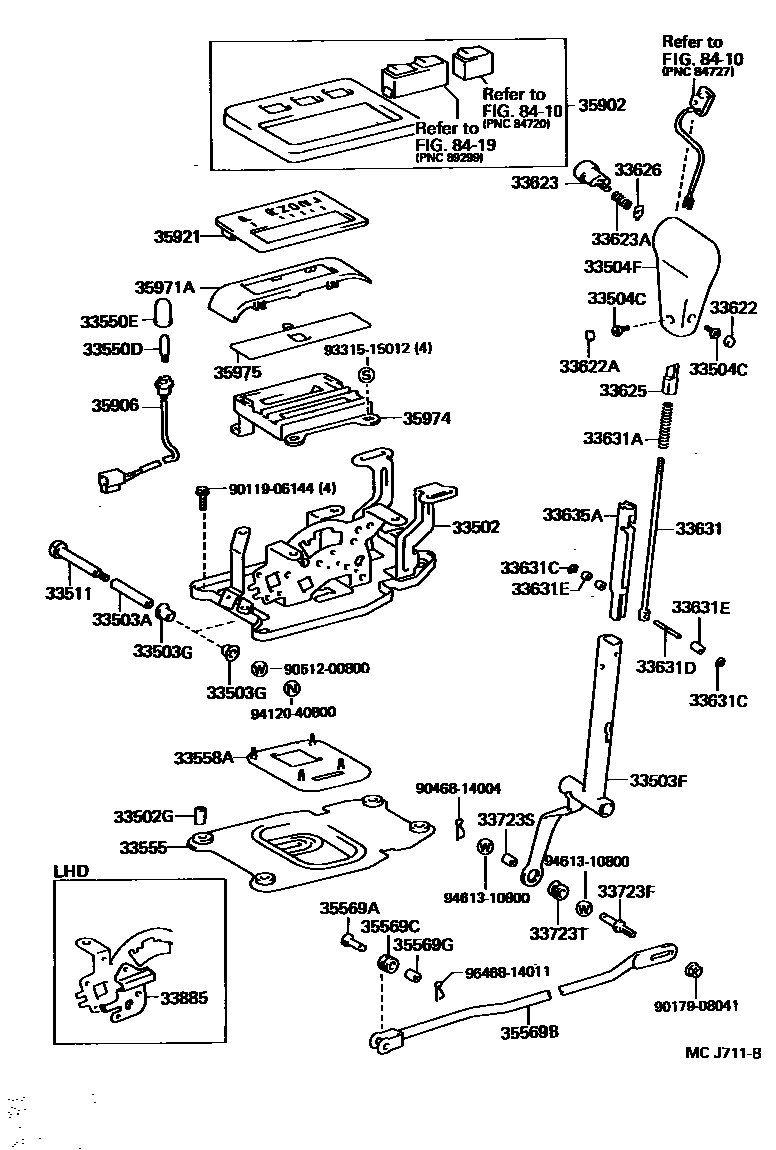

SHIFT LEVER & RETAINER
33502GCOLLAR (FOR SHIFT LEVER PLATE)
33503ACOLLAR(FOR SHIFT LEVER)
33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
33503GBUSH(FOR SHIFT LEVER)
33504CSCREW (FOR SHIFT LEVER KNOB SETTING)
33504FKNOB SUB-ASSY, SHIFT LEVER
33511SHAFT, CONTROL (FOR FLOOR SHIFT)
33550DBULB, POSITION INDICATOR LAMP
12V 2W
12V 3.4W
33550ECAP, POSITION INDICATOR LAMP
33558ASEAL, SHIFT LEVER BOOT DUST, NO.1
33622COVER, SHIFT LEVER KNOB, NO.1
33622ACOVER, SHIFT LEVER KNOB, NO.2
33623BUTTON, SHIFT LEVER KNOB
33623ASPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)
33626STOPPER, SHIFT LEVER BUTTON
33631ASPRING, COMPRESSION (FOR DETENT ROD)
33631CRING, E (FOR DETENT ROD)
33631DPIN, GROOVED (FOR DETENT ROD)
33631EROLLER (FOR DETENT ROD)
L=9.5
L=2.8
33635AGUIDE, WIRE, NO.1 (FOR SHIFT LEVER)
33723FSWIVEL, CONNECTING ROD (FOR FLOOR SHIFT)
33723SBUSH (FOR CONNECTING ROD SWIVEL)
33723TGROMMET (FOR CONNECTING ROD SWIVEL)
33885BRACKET, SHIFT LEVER STOPPER
35569APIN, W/HOLE (FOR TRANSMISSION CONTROL ROD)
35569BROD, TRANSMISSION CONTROL (FOR FLOOR SHIFT)
35569CGROMMET (FOR TRANSMISSION CONTROL ROD)
35569GBUSH (FOR TRANSMISSION CONTROL ROD)
35902COVER SUB-ASSY, POSITION INDICATOR HOUSING
W(AIR SUSPENSION)
W(AIR SUSPENSION)
35921PLATE, CONTROL POSITION INDICATOR
35971AHOUSING, POSITION INDICATOR, UPPER
35974HOUSING, POSITION INDICATOR, LOWER
35975COVER, SLIDE (FOR POSITION INDICATOR)
8410
8419
9011906144
main90119-06144
9017908041
main90179-08041
9046814004
main90468-14004
9051200800
main90512-00800
9331515012
main93315-15012
9412040800
main94120-40800
9461310800
main94613-10800
9646814011
main96468-14011
48 parts on this diagram · 2 diagrams in section
