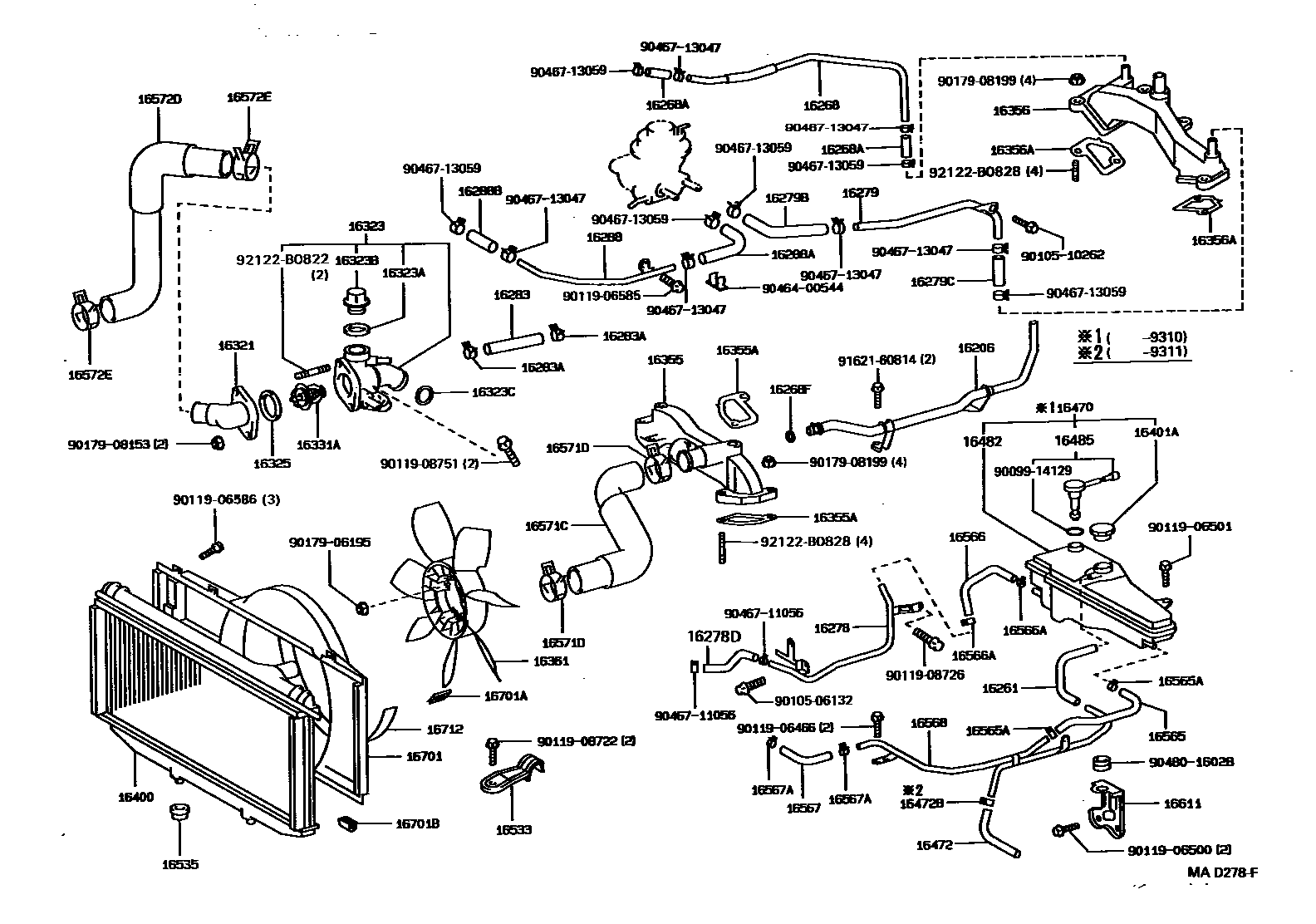

RADIATOR & WATER OUTLET
16206PIPE SUB-ASSY, WATER BY-PASS
16261HOSE, WATER BY-PASS
16268PIPE, WATER BY-PASS, NO.1
16268AHOSE(FOR WATER BY-PASS PIPE)
16268FRING, O(FOR WATER BY-PASS PIPE)
16278PIPE, WATER BY-PASS, NO.2
W(TRAILER HITCH)
W(TRAILER HITCH) OR SINGAPORE SPEC
HONG KONG SPEC
16278DHOSE, WATER BY-PASS
W(TRAILER HITCH) OR SINGAPORE SPEC
W(TRAILER HITCH)
HONG KONG SPEC
16279PIPE, WATER BY-PASS, NO.3
HONG KONG SPEC
16279BHOSE(FOR WATER BY-PASS PIPE NO.3)
HONG KONG SPEC
16279CHOSE, WATER(FOR WATER BY-PASS PIPE NO.3)
16283HOSE, WATER BY-PASS, NO.6
L=85
16283ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)
16288PIPE, WATER BY-PASS, NO.4
HONG KONG SPEC
16288AHOSE(FOR WATER BY-PASS PIPE NO.4)
HONG KONG SPEC
16288BHOSE, WATER(FOR WATER BY-PASS PIPE NO.4)
16321INLET, WATER
16323HOUSING, WATER INLET
HONG KONG SPEC
W(TRAILER HITCH)
W(TRAILER HITCH) OR SINGAPORE SPEC
16323AGASKET(FOR WATER INLET HOUSING)
16323BPLUG(FOR WATER INLET HOUSING)
16323CRING, O(FOR WATER INLET HOUSING)
16325GASKET, WATER INLET HOUSING, NO.1
16331ATHERMOSTAT
16355AGASKET(FOR WATER BY-PASS JOINT FRONT)
16356JOINT, WATER BY-PASS, REAR
SOUTH AFRICA SPEC
HONG KONG SPEC
16356AGASKET(WATER BY-PASS JOINT, REAR)
16361FAN
16400RADIATOR ASSY
sub16400-50021
SOUTH AFRICA SPEC
SINGAPORE SPEC OR THAILAND SPEC
SINGAPORE SPEC
ISRAEL SPEC
16472HOSE, BREATHER
L=120
16472BCLIP(FOR BREATHER HOSE)
sub96135-51100
16482TANK SUB-ASSY, RADIATOR RESERVE
16533SUPPORT, RADIATOR, UPPER
RH
RH
LH
LH
16535SUPPORT, RADIATOR, LOWER
16565HOSE, RESERVE TANK INLET
16565ACLIP
PIPE SIDE
TANK SIDE
16566HOSE, RESERVE TANK OUTLET
16566ACLIP(FOR RESERVE TANK OUTLET)
16567HOSE(FOR RADIATOR RESERVE TANK)
16567ACLIP(FOR RADIATOR RESERVE TANK HOSE)
16568PIPE, RADIATOR TO RESERVE TANK
16572DHOSE, RADIATOR, NO.2
16611BRACKET, RADIATOR RESERVE TANK
16701SHROUD SUB-ASSY, FAN
16701ACLIP(FOR FAN SHROUD)
16701BCUSHION, FAN SHROUD
16712SHROUD, FAN, NO.2
9009914129
main90099-14129
9010506132
main90105-06132
9010510262
main90105-10262
9011906466
main90119-06466
9011906500
main90119-06500
9011906501
main90119-06501
9011906585
main90119-06585
9011906586
main90119-06586
9011908722
main90119-08722
9011908726
main90119-08726
9011908751
main90119-08751
9017906195
main90179-06195
9017908153
main90179-08153
9017908199
main90179-08199
9046400544
main90464-00544
9046711056
main90467-11056
9046713047
main90467-13047
9046713059
main90467-13059
9048016028
main90480-16028
9162160814
main91621-60814
92122B0822
main92122-B0822
92122B0828
main92122-B0828
74 parts on this diagram · 5 diagrams in section
