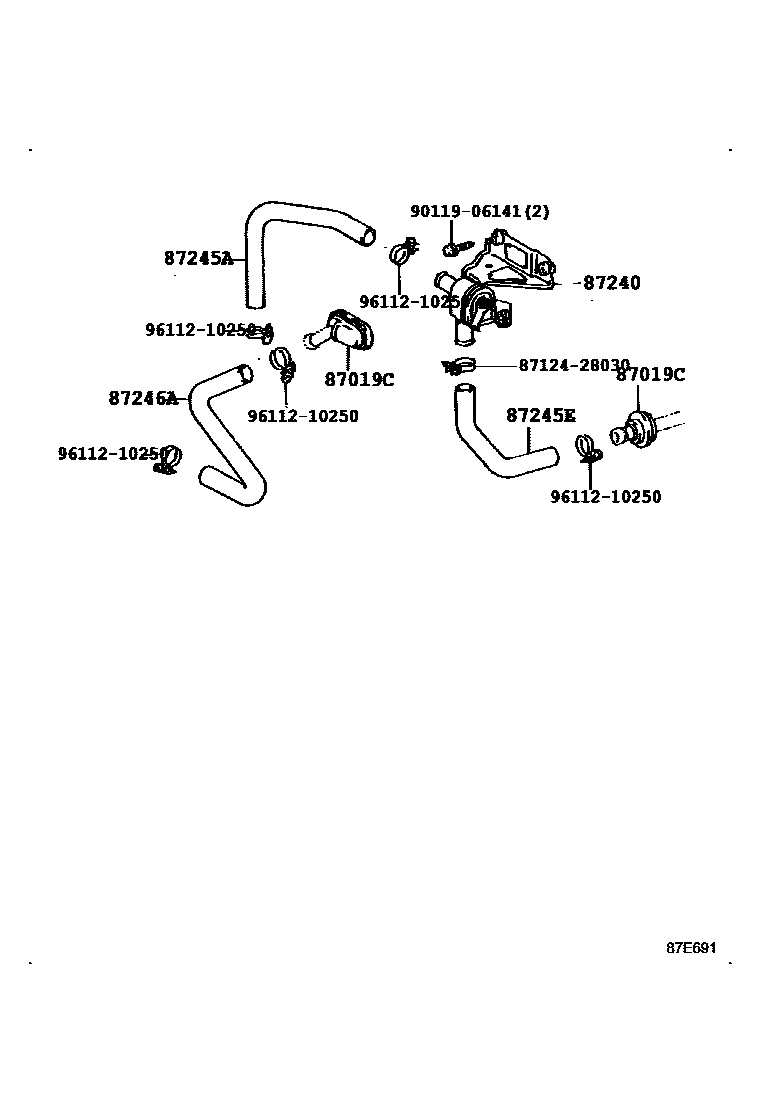

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1

87019CGROMMET, HEATER HOSE

main90480-01272iGX71,MX75,RX7#,YX72198810-199205

INLET

main90480-36011iGX71,MX75,RX7#,YX72198810-199205

OUTLET

87240VALVE ASSY, HEATER WATER

main87240-22261iMX75,RX7#,YX72..GL,STD,XL198810-199302

main87240-22270iGX71,MX75..GLX198812-199205

87245AHOSE, HEATER WATER, INLET A

main87245-22802iYX72198812-199205

main87245-22881iRX7#198810-199302

main87245-2A280iGX71198812-199205

main87245-2A310iMX75198812-199205

87245EHOSE, HEATER WATER, INLET E

main87245-22620iGX71,MX75,RX7#,YX72..RHD198810-199302

main87245-22780iRX72..LHD198810-199008

87246AHOSE, HEATER WATER, OUTLET A

main87245-22700iMX75198812-199205

main87245-22790iRX7#..RHD198810-199302

main87245-22810iYX72198812-199205

main87245-22870iRX72..LHD198810-199302

main87245-2A290iGX71198812-199205

8712428030CLAMP, HEATER

main87124-28030

9011906141

main90119-06141

9611210250

main96112-10250

8 parts on this diagram · 4 diagrams in section
