HEATING & AIR CONDITIONING - COOLER UNIT

0001 1MAKER OPTION 0002 1DEALER OPTION 0003 1COOL BOX

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-22152iGX71,MX75,RX7#,YX72..RHD198810-199302

main88501-22162iRX72..LHD198810-199302

88510UNIT ASSY, COOLER

main88510-22231iMX75..GLX198812-199205

main88510-22241iGX71198812-199205

main88510-22251iRX72..RHD..GEN198810-199302

MAKER OPT

main88510-22251iMX75,RX7#,YX72..(GL,STD,XL)..SA198812-199205

main88510-22261iRX72..RHD..GEN198810-199302

W(BOOST VENTILATOR)

main88510-22292iRX72..LHD..GEN198810-199302

MAKER OPT

main88510-22301iRX72..LHD..XL198810-199302

W(BOOST VENTILATOR)

main88510-22311iRX72..RHD..GEN198810-199302

DEALER OPT

main88510-22411iRX72..V199008-199302

main88510-22411iRX72..GL198810-199008

MAKER OPT

88515VALVE, COOLER EXPANSION

main88515-20040iRX72..GEN¥8,900198810-199302

W(BOOST VENTILATOR)

sub88515-16031¥7,400

main88515-20040iRX72..V¥8,900198810-199302

sub88515-16031¥7,400

main88515-22070iGX71,MX75,RX7#,YX72..SA¥10,000198810-199205

sub88515-22071¥10,000

main88515-22071iRX72..GEN¥10,000199204-199302

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-22110iGX71,MX75,RX7#,YX72198810-199302

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-22301iMX75..GLX198812-199205

main88605-22310iGX71198812-199205

main88605-22320iRX72..LHD..GEN198810-199302

W(HEATER)

main88605-22320iMX75,RX7#,YX72..(GL,STD,XL)..SA198812-199205

main88605-22330iRX72..GEN198810-199302

W(BOOST VENTILATOR)

main88605-22500iRX72..GL198810-199008

W(HEATER)

main88605-22500iRX72..V199008-199302

88630RELAY ASSY, COOLER

main90987-03001iRX72..RHD..GEN¥2,230198810-199205

88630ARELAY ASSY, COOLER

main90987-02004iRX72..RHD..GEN¥2,330198810-199302

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-22130iGX71,MX75..GLX198812-199205

main88650-22150iRX72..XL..(GEN,V)198810-199302

88650CAMPLIFIER SUB-ASSY, AIRCONDITIONER

main88650-22230iRX72..V198810-199302

9015960195

main90159-60195¥70

9017906054

main90179-06054¥100

9048026013

main90480-26013¥0

9048026014

main90480-26014¥0

9048036010

main90480-36010¥0

9338516012

main93385-16012¥70

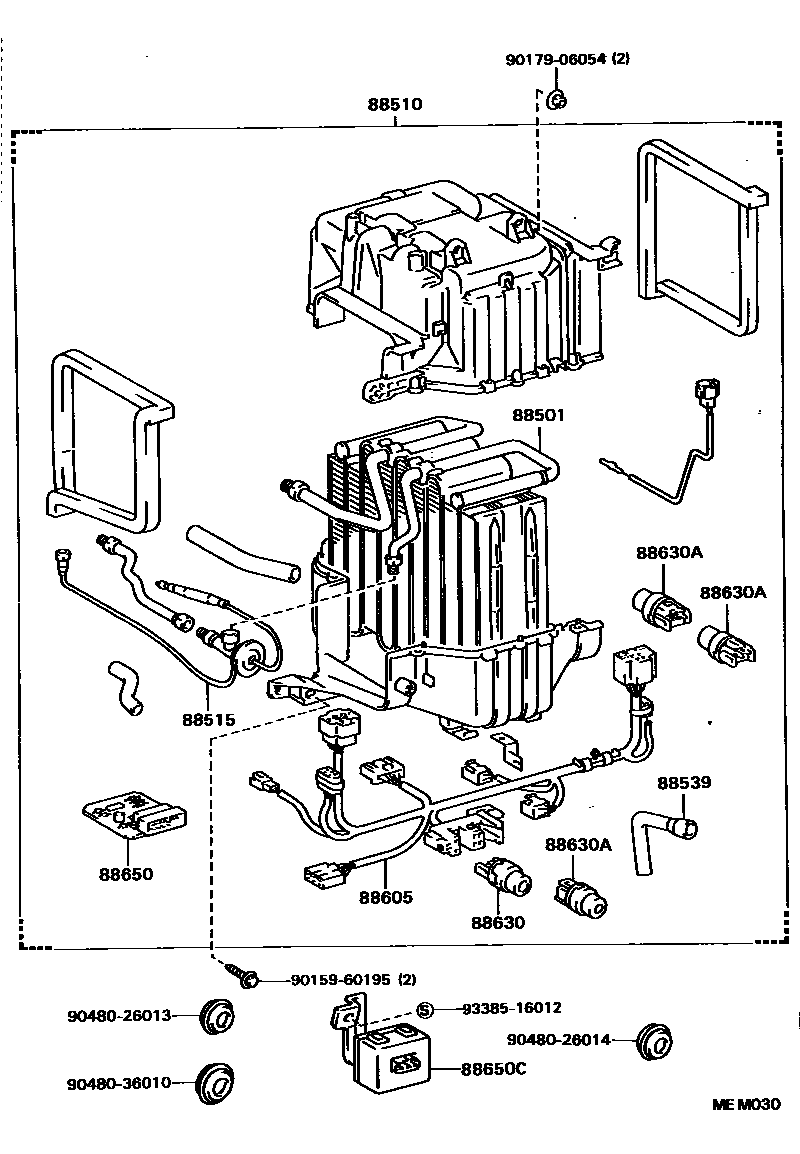

15 parts on this diagram · 3 diagrams in section
